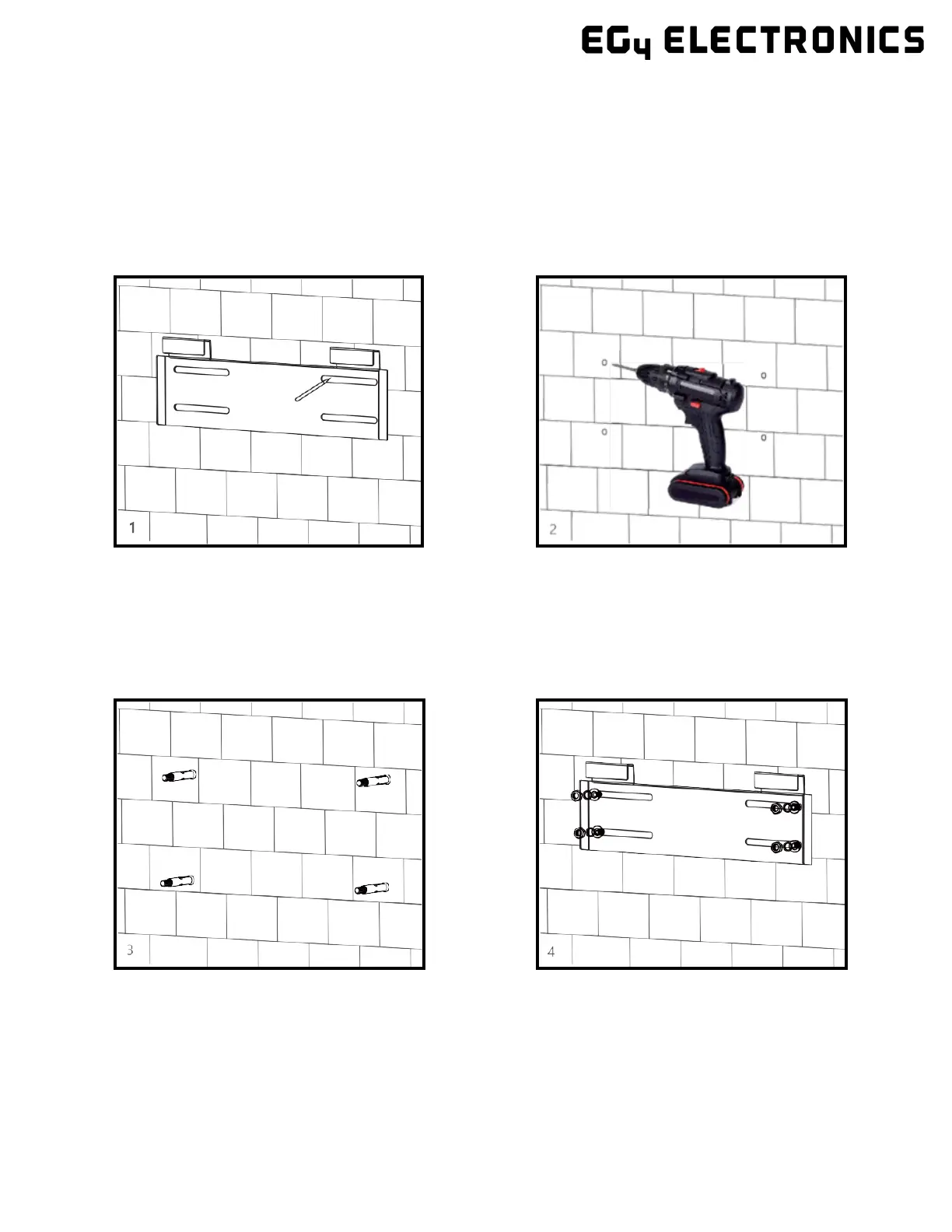

4.2.3 Mounting Steps

For installation on brick or concrete:

1. Mark the drill hole positions with the mounting bracket.

2. Drill four, 5/16 in. (48 mm) diameter holes, making sure the holes are deeper than 2 in. (50 mm).

3. Insert the expansion bolts into the holes and tighten.

4. Use the corresponding nuts and washers (packaged together with the expansion bolts) to install

and affix the wall-mount bracket onto the wall.
