Express Install for File OE Release 7.1 or higher
219
NAS Install Options
EMC CONFIDENTIAL

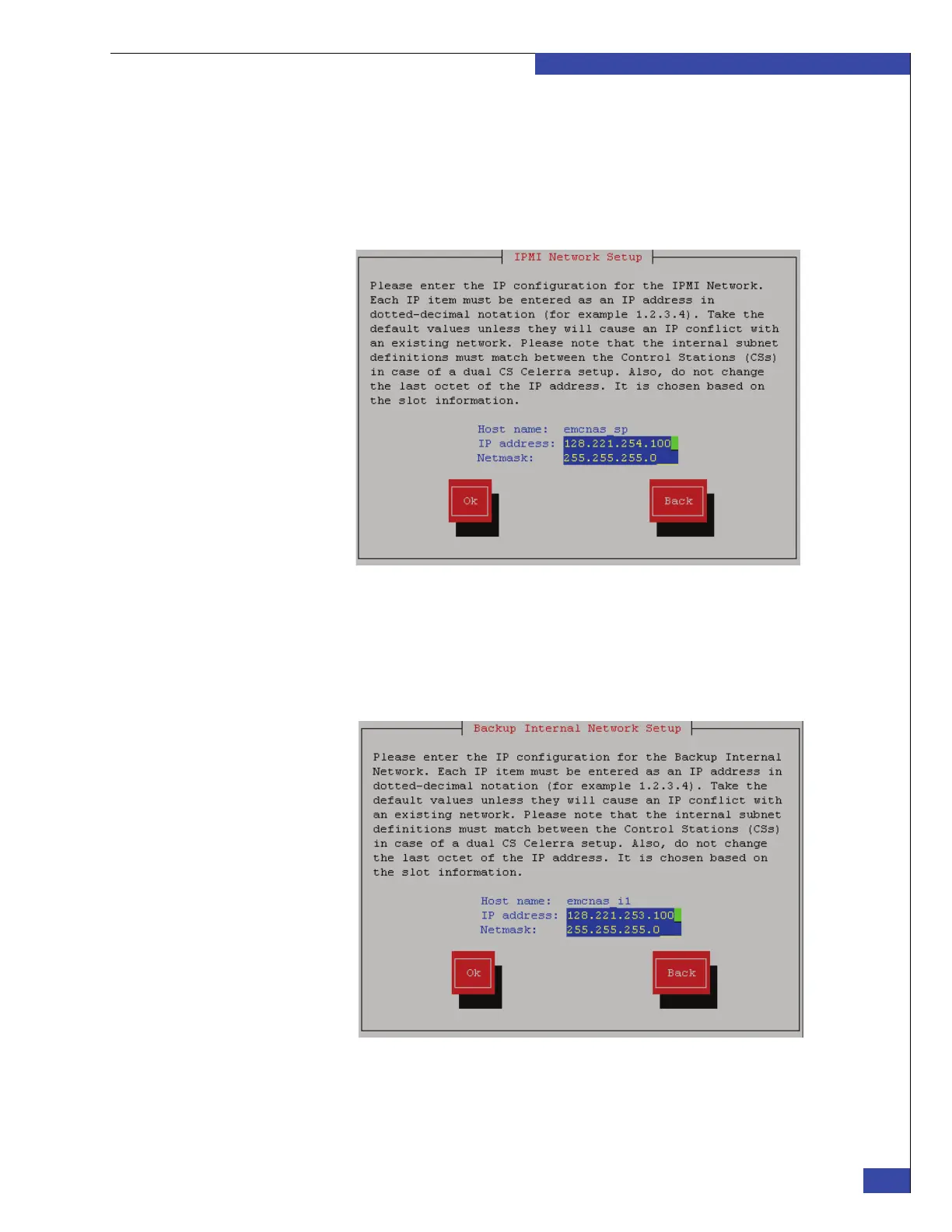

The system displays the IPMI Network Setup dialog box (Figure 137 on
page 219).
b. Enter the IP address and netmask for the IPMI connection (CS ports) between
two Control Stations (Figure 137 on page 219). To accept the default values, tab
to Ok, and press Enter.
Figure 137 IPMI private network settings
The system displays the Backup Internal Network Setup dialog box (see
Figure 138).
c. Enter the IP address and netmask (see Figure 115). To accept the default
values, tab to Ok and press Enter.
Figure 138 Backup private network settings
