IP addresses and component IDs
The IP addresses of the VPLEX hardware components are determined by a set of
formulae that depend on the internal management network (A or B), the Cluster IP
Seed, and (for directors) the Enclosure ID (which matches the engine number).
Figure 50 on page 78 shows the IP addresses in a cluster with a Cluster IP Seed of 1,
and Figure 51 on page 79 shows the addresses for a Cluster IP Seed of 2.

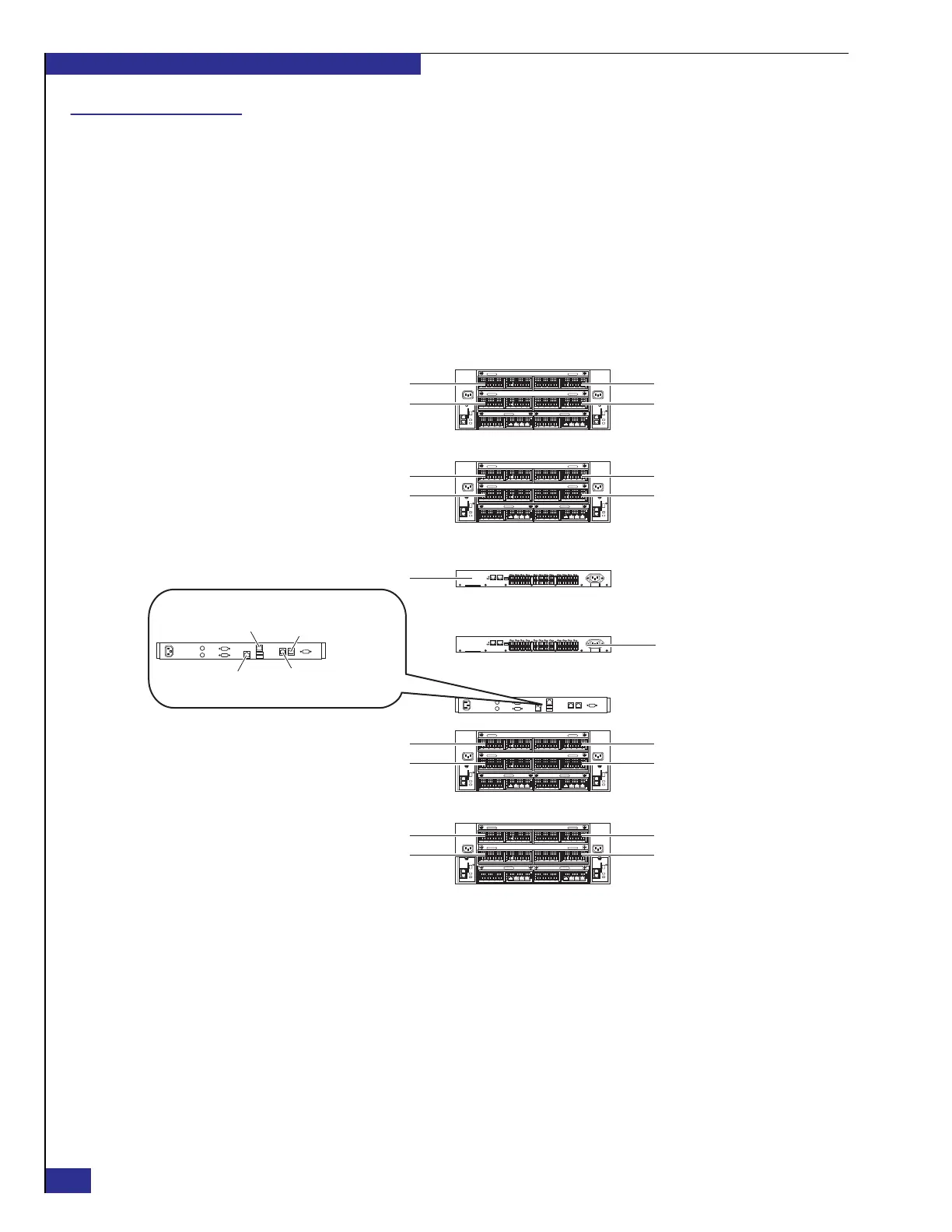

Figure 50 Component IP addresses in cluster 1
Management network A addresses
Zep-028_1
FC switch A
128.221.252.42
128.221.252.41
128.221.252.40
128.221.252.39
128.221.252.38
128.221.252.37
128.221.252.36
128.221.252.35
128.221.253.42
128.221.253.41
128.221.253.40
128.221.253.39
128.221.252.34
FC switch B
128.221.253.34
128.221.253.38
128.221.253.37
128.221.253.36
128.221.253.35
Management network B addresses
Cluster IP Seed = 1
Enclosure IDs = engine numbers
Engine 4:
Director 4B
Director 4A
Engine 3:
Director 3B
Director 3A
Engine 2:
Director 2B
Director 2A
Engine 1:
Director 1B
Director 1A
Engine 4:
Director 4B
Director 4A
Engine 3:
Director 3B
Director 3A
Engine 2:
Director 2B
Director 2A
Engine 1:
Director 1B
Director 1A
Management server
Public Ethernet port
Customer-assigned
Service port
128.221.252.2
Mgt B port
128.221.253.33
Mgt A port
128.221.252.33
