EMC VPLEX - Dual-Engine Configuration; Ethernet Cabling in a Dual-Engine Configuration

Internal cabling
85
Reference
Dual-engine configuration

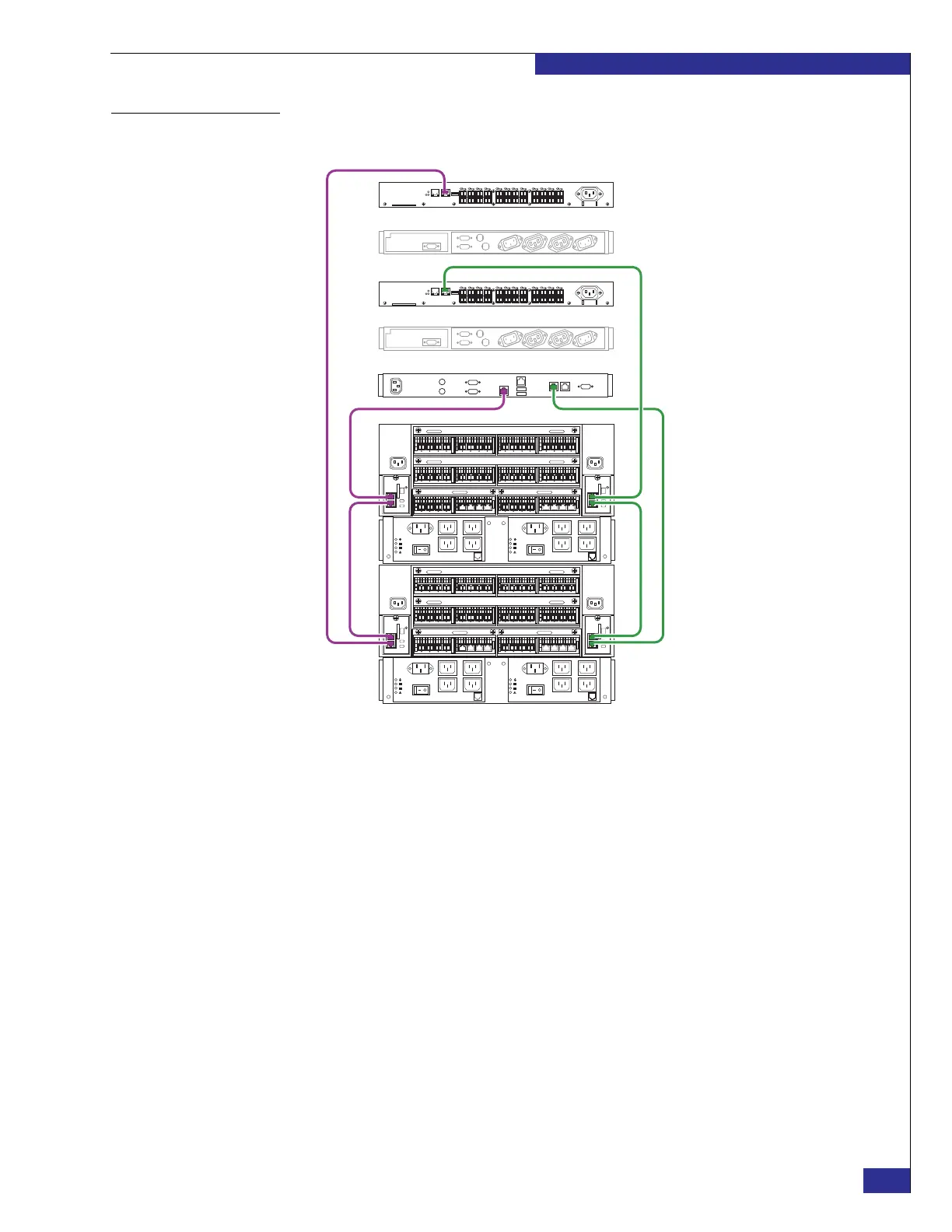

Figure 56 Ethernet cabling in a dual-engine configuration
Zep-005_em
Engine 1
Fibre Channel switch A
Fibre Channel switch B
Management server
Engine 2
038-003-676, 71 in.
038-003-676, 71 in.
038-003-678, 20 in.
038-003-679, 20 in.
038-003-887, 48 in.
038-003-677, 37 in.
