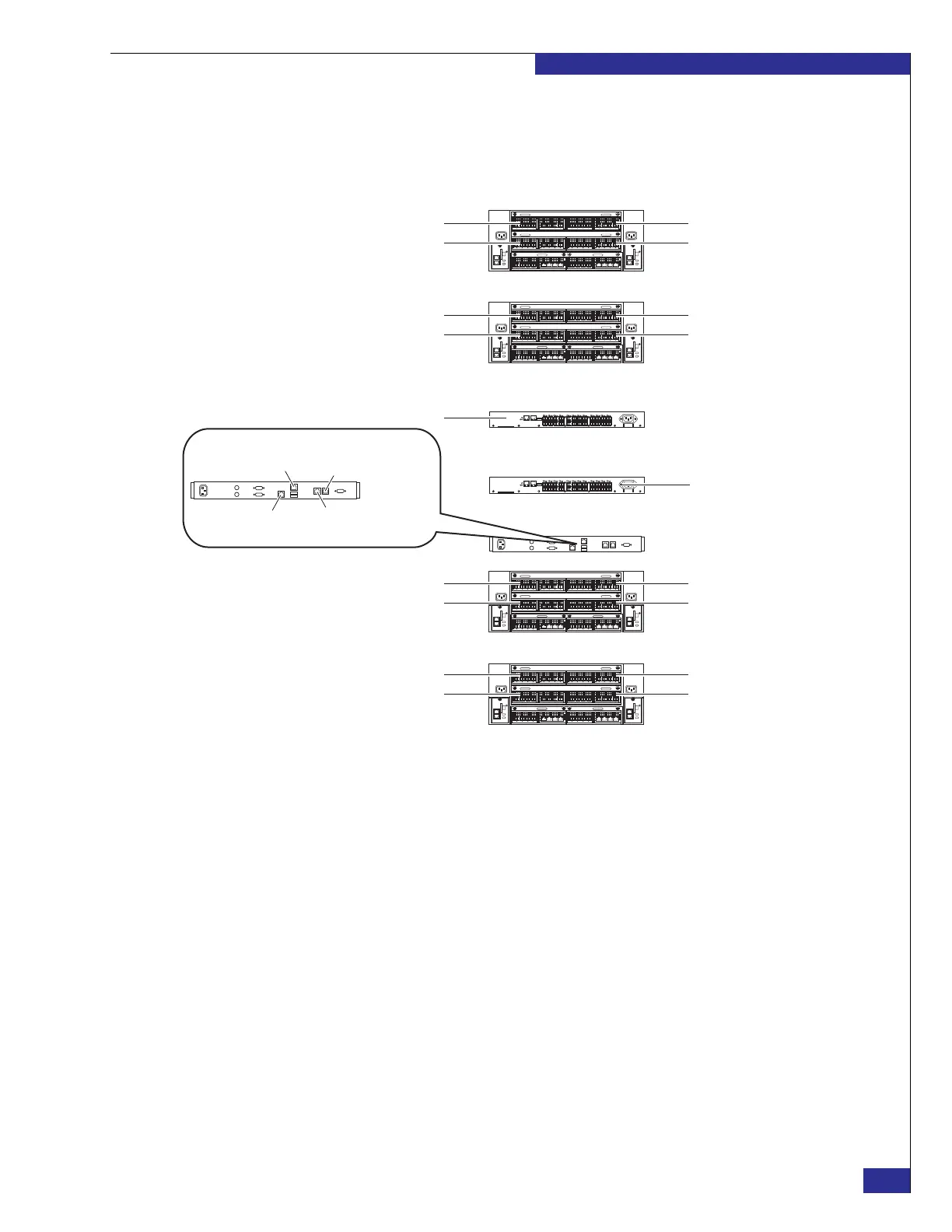

Figure 51 Component IP addresses in cluster 2
Zep-028_2
FC switch A
128.221.252.74
128.221.252.73
128.221.252.72
128.221.252.71
128.221.252.70
128.221.252.69
128.221.252.68
128.221.252.67
128.221.253.74
128.221.253.73
128.221.253.72
128.221.253.71
128.221.252.66
FC switch B
128.221.253.66
128.221.253.70
128.221.253.69
128.221.253.68
128.221.253.67
Cluster IP Seed = 2
Enclosure IDs = engine numbers
Engine 4:
Director 4B
Director 4A
Engine 3:
Director 3B
Director 3A
Engine 2:
Director 2B
Director 2A
Engine 1:
Director 1B
Director 1A
Engine 4:
Director 4B
Director 4A
Engine 3:
Director 3B
Director 3A
Engine 2:
Director 2B
Director 2A
Engine 1:
Director 1B
Director 1A
Management server
Public Ethernet port
Customer-assigned
Service port
128.221.252.2
Mgt B port
128.221.253.65
Mgt A port
128.221.252.65
Management network A addressesManagement network B addresses
