Internal cabling
87
Reference

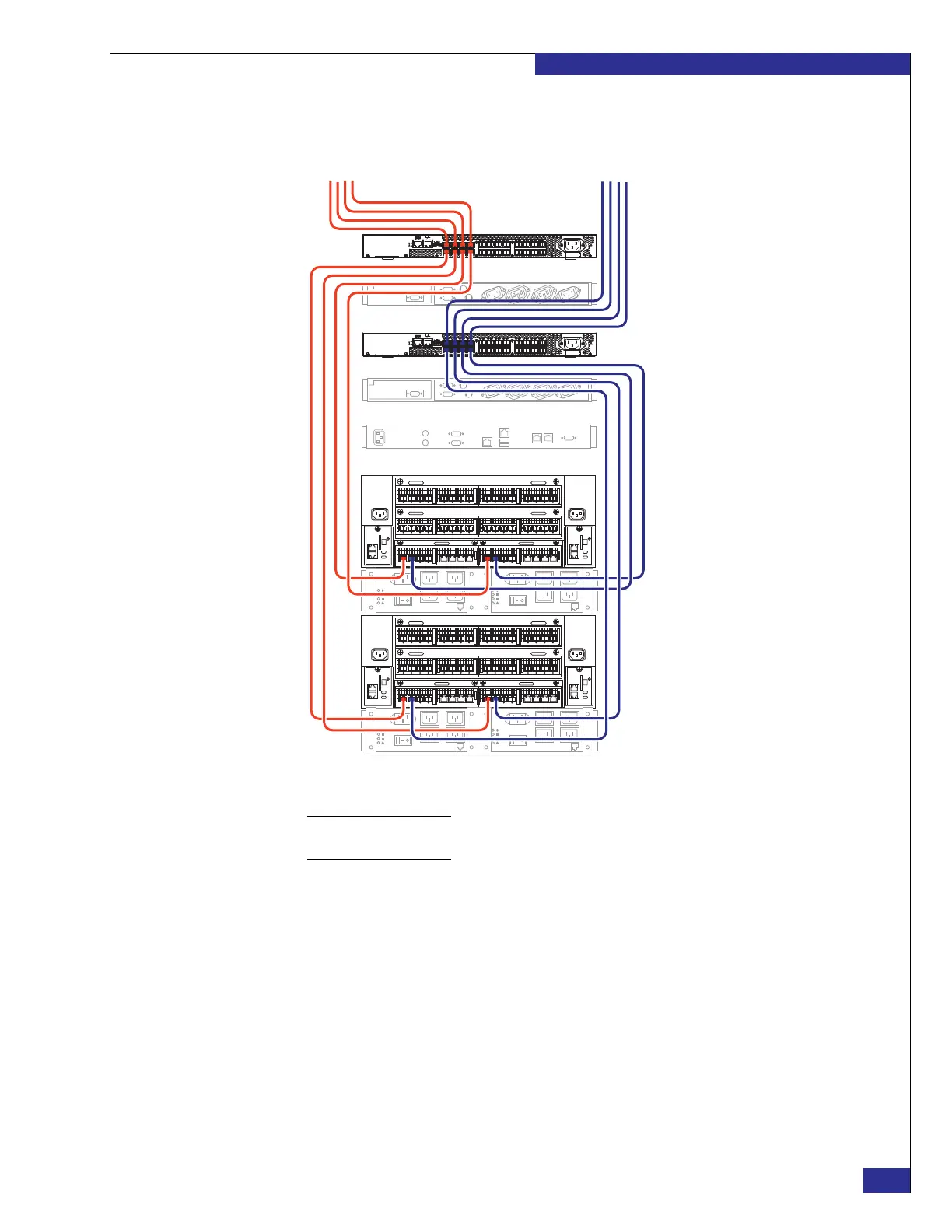

Figure 58 Fibre Channel cabling in a dual-engine configuration
Note: All 16 Fibre Channel cables are light blue. However, the “A” side cables have blue labels
and the “B” side cables have orange labels.
Zep-005_fm
Engine 1
Fibre Channel switch A
Fibre Channel switch B
Engine 2
038-003-738, 79 in. (all 16 cables)
(8 cables for large configuration are included for
ease of upgrading, and are tied to cabinet sidewalls
