EMC VPLEX

Internal cabling
81
Reference
Quad-engine configuration

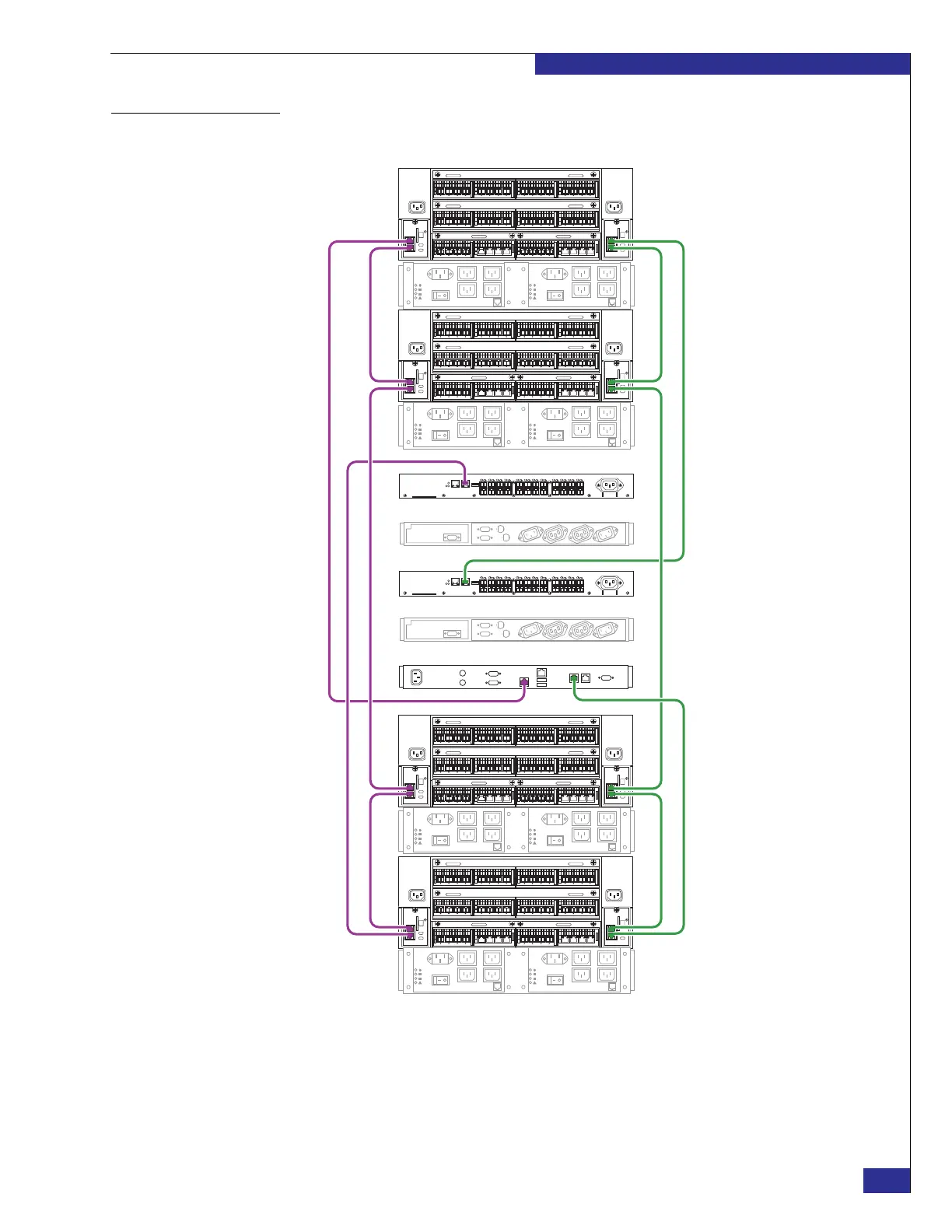

Figure 52 Ethernet cabling in a quad-engine configuration
Zep-005_el
Engine 1
Fibre Channel switch A
Fibre Channel switch B
Management server
Engine 2
Engine 3
Engine 4
038-003-676, 71 in.
038-003-676, 71 in.
038-003-678, 20 in. 038-003-685, 37 in. 038-003-678, 20 in.
038-003-679, 20 in. 038-003-679, 20 in.
038-003-887, 48 in.
038-003-677, 37 in.
038-003-677, 37 in.
