EMC VPLEX User Manual

Internal cabling
89
Reference
Single-engine configuration

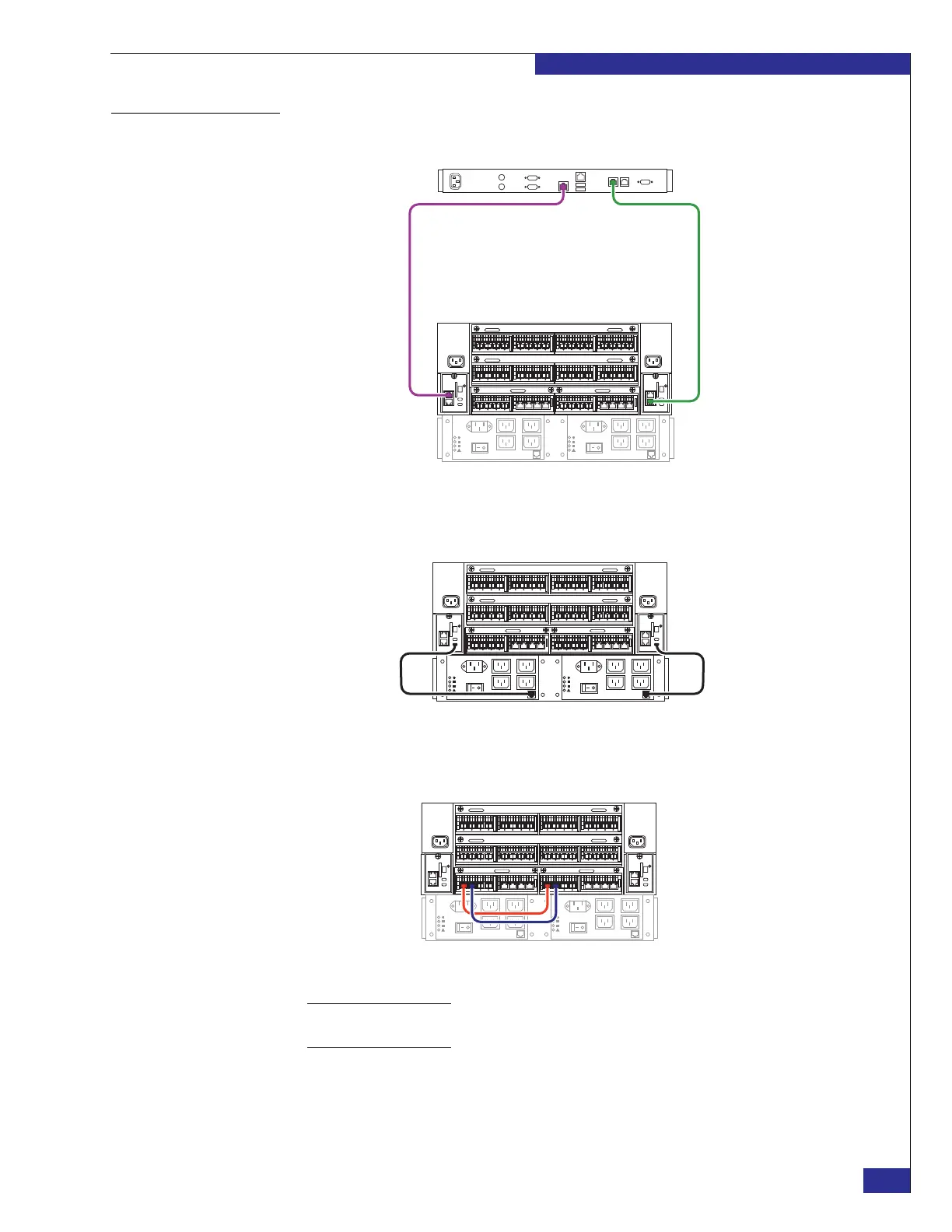

Figure 60 Ethernet cabling in a single-engine configuration
Figure 61 Serial cabling in a single-engine configuration
Figure 62 Fibre Channel cabling in a single-engine configuration
Note: Both Fibre Channel cables are light blue. However, the “A” side cable has a blue label
and the “B” side cable has an orange label.
Zep-005_es
Engine 1
Management server
038-003-676, 71 in.
038-003-677, 37 in.
Zep-005_ss
Engine 1
038-003-682
12 in.
038-003-682
12 in.
Zep-005_fs
Engine 1
038-003-737,
39 in. (2 cables)
