Internal cabling

Reference

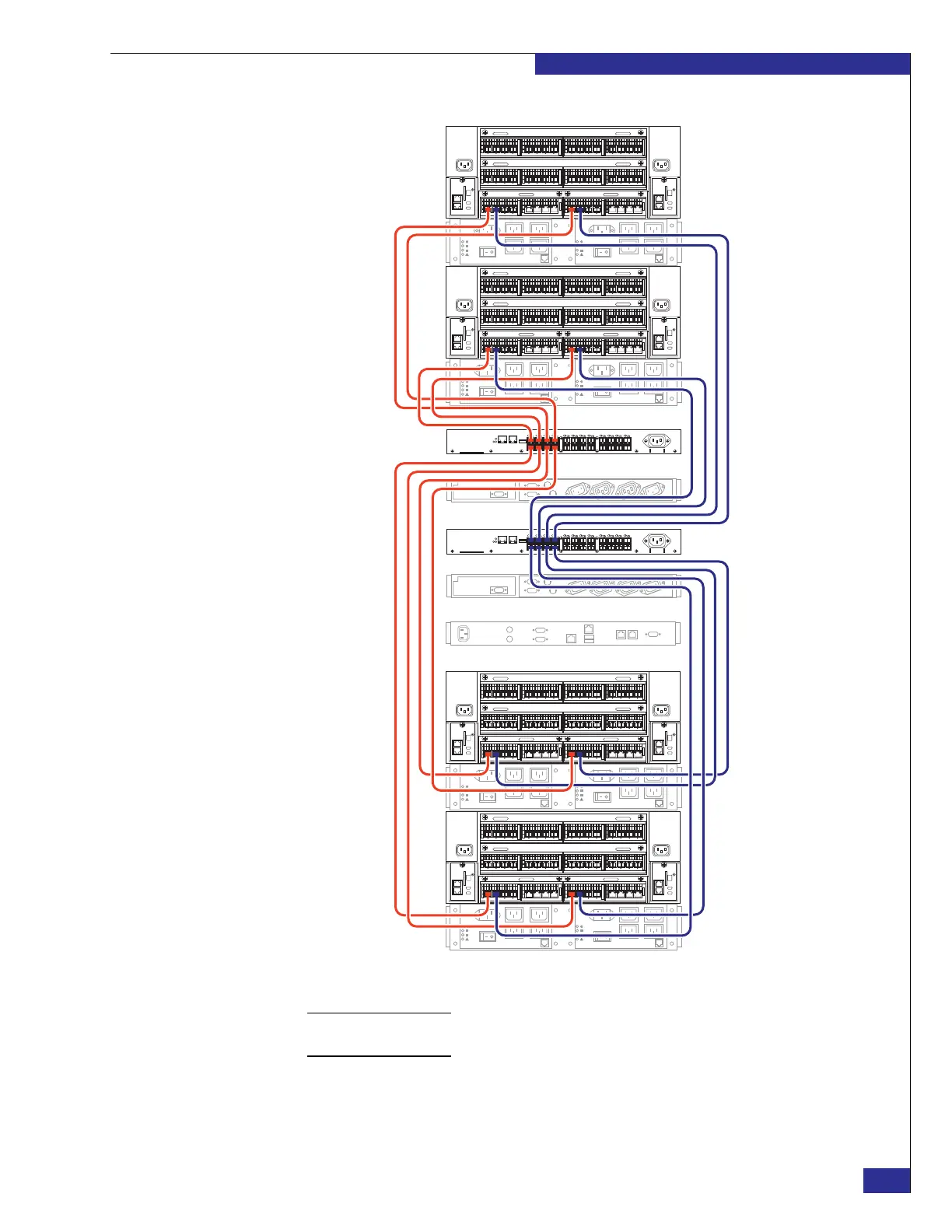

Figure 54 Fibre Channel cabling in a quad-engine configuration

Note: All 16 Fibre Channel cables are light blue. However, the “A” side cables have blue labels

and the “B” side cables have orange labels.

Zep-005_fl

Engine 1

Fibre Channel switch A

Fibre Channel switch B

Engine 2

Engine 3

Engine 4

038-003-738, 79 in.

(all 16 cables)
