Emerson Liebert SRC18 - Electrical Data; Table 2-1: Unit Electrical Data

Product Introduction
Liebert
®
SRC
™
User Manual 16
2.1 Electrical Data
10 Function Settings
Louver set-up.
1, 2, 3, 4, All = louver number.
STD = standard louver angle setting.
Angle of the louver.
Elevation grill set-up.
Grill up.
Grill closed.
Grill down.
Display lock set-up
Display is locked.
Display is not locked.
Set-up minimum-difference value between cooling and heating setpoints.
Set current time.
Set timer for schedule override.
Set-up default setback for cooling/heating temperature setpoints.
Clear the air-filter cleaning alarm.
Check the indoor-unit air filter and clean if necessary.

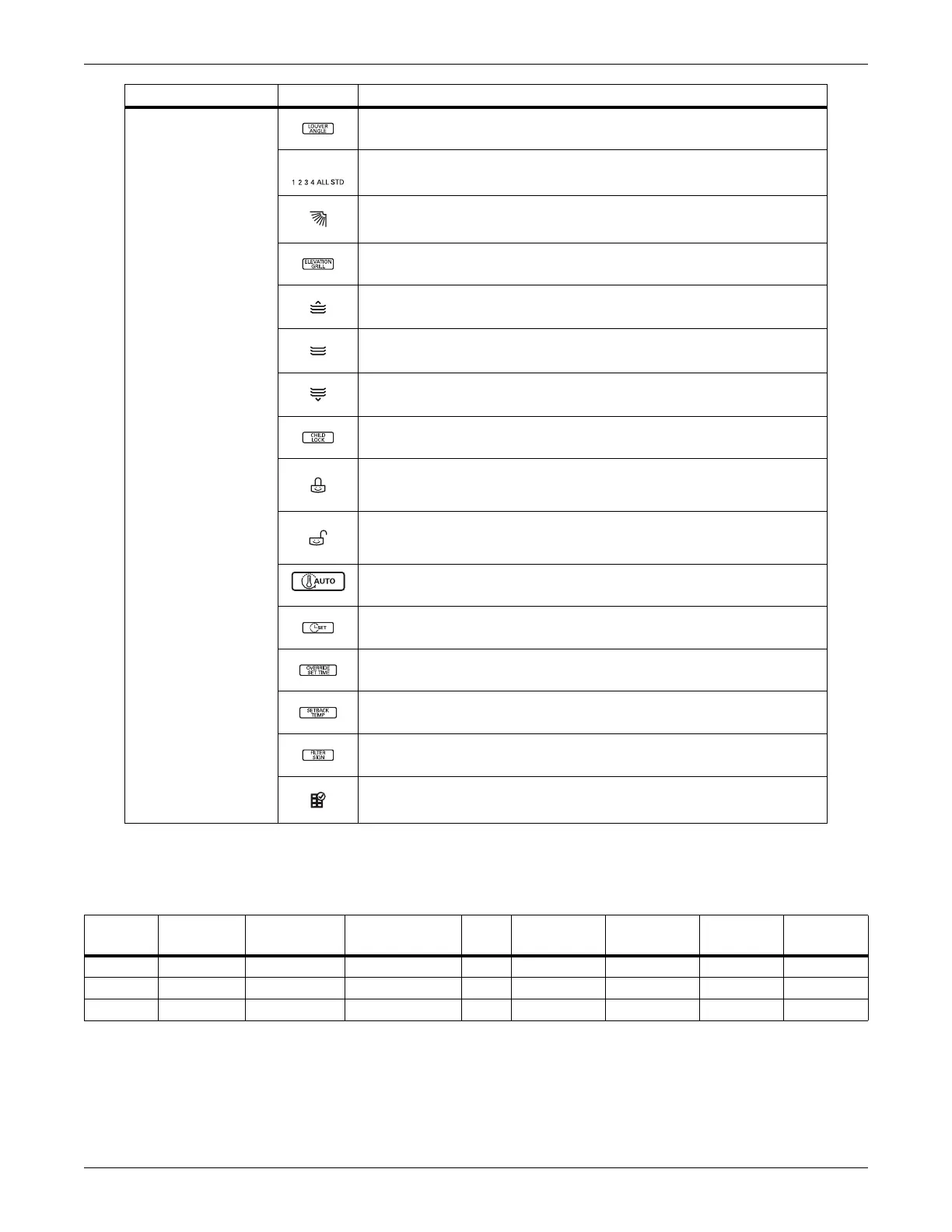

Table 2-1 Unit electrical data
Model Nom. Tons
Compressor
Qty.
Compressor (A)
Cool/Heat
Fan
Qty. ODU Fan (A) IDU Fan (A) MCA (A) MOP (A)
SRC18 1-1/2 1 14.6/14.6 1 0.25 0.40 19 25
SRC24 1-3/4 1 17.3/17.3 1 0.25 0.5 23 35
SRC36 2-3/4 1 17.3/17.3 1 0.25 0.5 23 35
Section Icon Description
