Emerson Liebert SRC18 - Figure 5-34 Bundling Pipe and Drain Hose at Rear of Indoor Unit; Figure 5-35 Piping Bundle Placement in Housing at Rear of Indoor Unit

Piping
Liebert
®
SRC
™
User Manual 62
10. Using a wider vinyl tape, bundle the piping and the drain hose together, Figure 5-34.
• The tape should cover the piping and fit into the rear pipe housing on the back of the indoor unit as
shown in Figure 5-35.

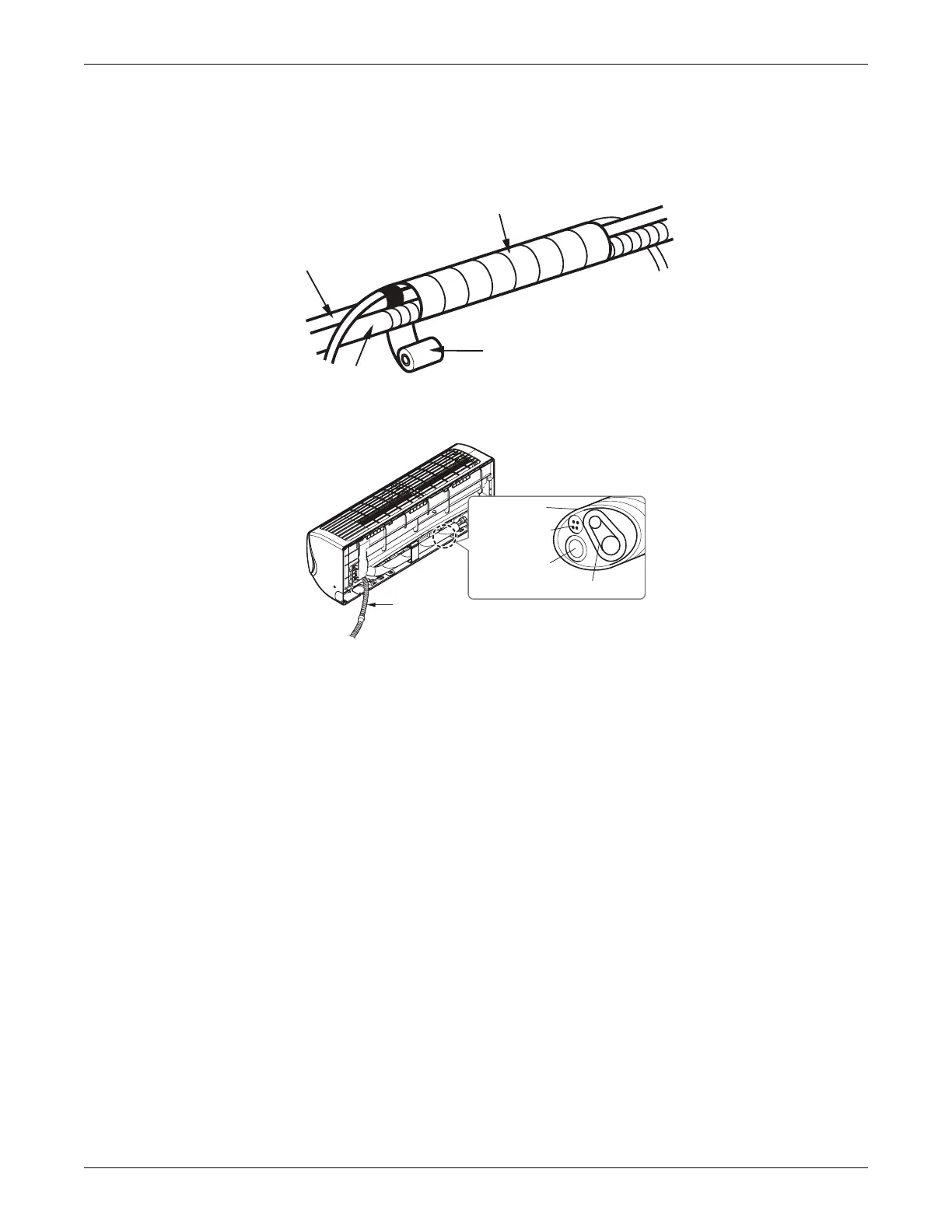

Figure 5-34 Bundling pipe and drain hose at rear of indoor unit
Figure 5-35 Piping bundle placement in housing at rear of indoor unit
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
Drain hose
Connecting pipe
Connecting
cable
Tape
Drain hose
