Installation
23 Liebert
®
SRC™ User Manual
3.2 Mounting the Outdoor Unit
Securely attach the outdoor unit to a condenser pad, base rails, or another mounting platform that is
securely anchored to the ground or building structure. Attach the outdoor unit with a bolt and nut on a
concrete or rigid mount. See Figure 3-3. Follow applicable local codes for clearance, mounting, anchor
and vibrations attenuation requirements.

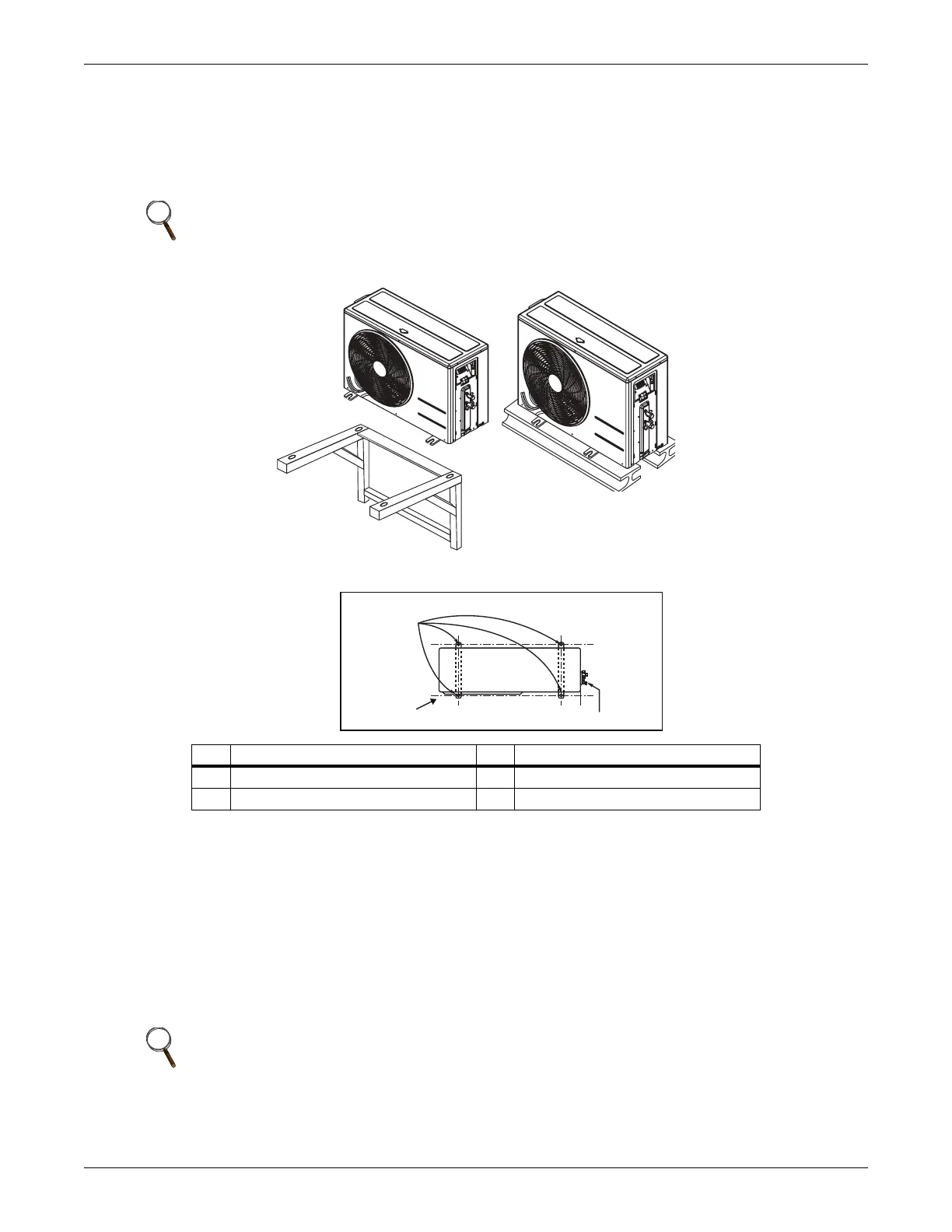

Figure 3-3 Outdoor unit mounting methods
3.2.1 Mounting Platform
The underlying structure or foundation must be designed to support the weight of the unit. Avoid placing
the unit in a low-lying area where water may accumulate. When installing the outdoor unit on the wall or
roof top, anchor the mounting base securely to account for wind, earthquake or vibration.
3.2.2 Tie-downs and Wind Restraints
The strength of the inverter system frame is adequate to be used with field-provided wind restraint tie-
downs. The overall tie-down configuration must be approved by a local, professional engineer.
NOTE
All referenced materials are field-supplied. Images are not to scale.
No. Description No. Description
1 Bolt placement and Anti-vibration pad 3 Piping connection
2 Foundation
NOTE
Always refer to local code when designing a wind-restraint system.
Top of Unit
1
2
3
