Emerson Liebert SRC18 - Figure 6-8 Indoor-Unit Terminal Block with Grounding Cable (Example Only); Figure 6-9 SRC18 Indoor-Unit Terminal-Block Connections; Terminal-Block Connection for SRC18

Electrical Connections
77 Liebert
®
SRC™ User Manual
3. Using a screwdriver, connect the wires as shown in Figure 6-8.
• Attach each wire securely to the terminal block.
• Pay attention to the location/connection of the green/yellow ground cable.

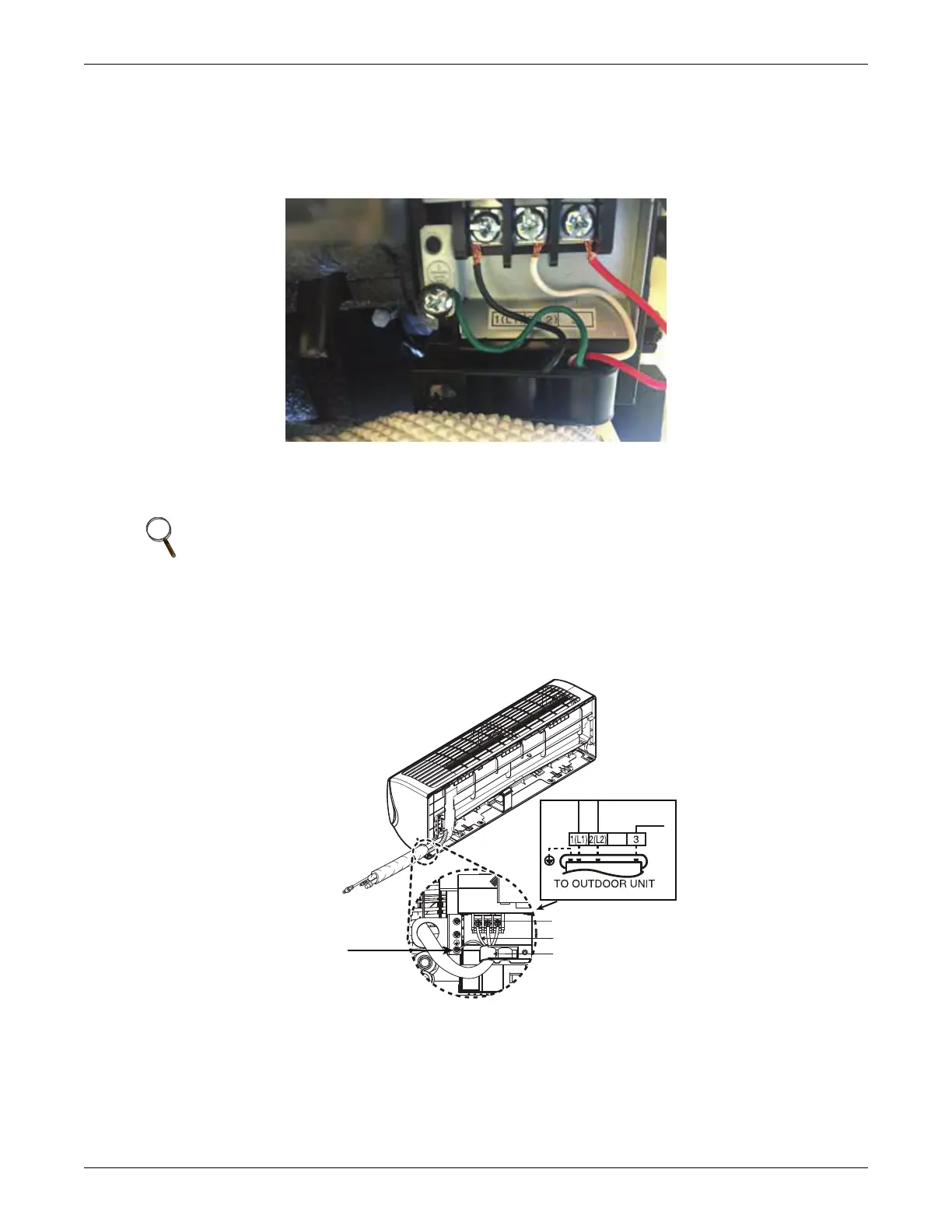

Figure 6-8 Indoor-unit terminal block with grounding cable (example only)
6.4.1 Terminal-block Connection for SRC18
Figure 6-9 SRC18 indoor-unit terminal-block connections
NOTE
• Pay special attention to the location of the grounding cable and the cable
restrainer around the other electrical/communication cables when
connecting.
• The terminal block is located behind the drain hose and bundled piping on
these units.
Terminal Block
Terminal Block
Expanded View
Grounding
Cable
Connecting Cables
Cable Restrainer
