Piping
51 Liebert
®
SRC™ User Manual
5.3.2.1 Pipe bundling
Refer to Figure 5-15 for proper cable and pipe bundling. Note the placement of the piping along with the
necessary insulation material.

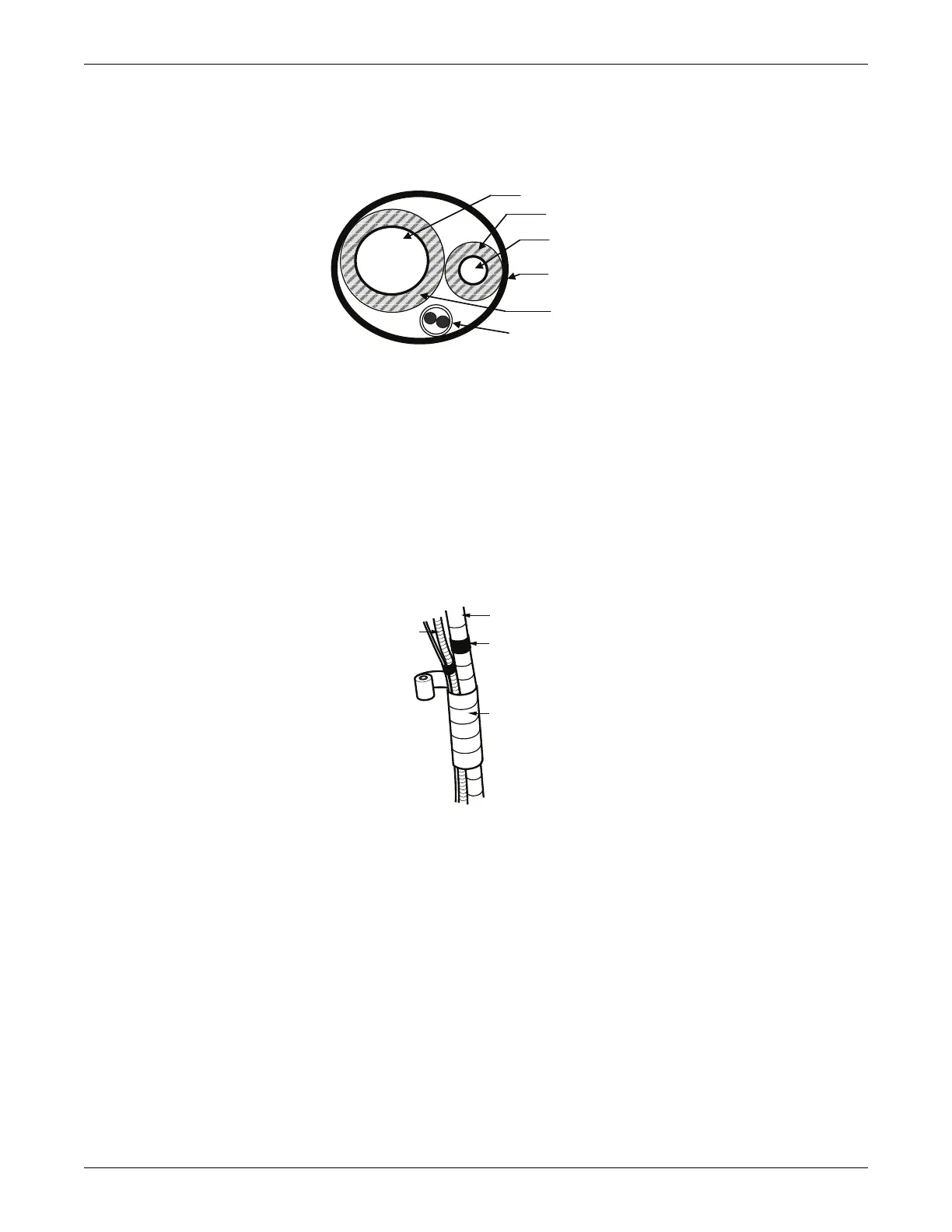

Figure 5-15 Proper pipe and cable bundling—cut-away
1. Be sure to wrap each pipe with proper insulation material.
2. Secure the piping by wrapping vinyl tape vinyl tape around the pipe.
• Use narrow-size tape for wrapping the actual pipe, Figure 5-16.
3. You can include the drain hose in the bundled piping and wrap all of them together using wider vinyl
tape, Figure 5-16.
• The end of the drain-hose outlet must be routed above the ground.
Figure 5-16 Bundling and taping piping and cables
Vapor Line
Liquid Line
Min. 18 Gauge
Cable
Power/Communication
Pi
p
e Sleeve
Insulation Material
Insulation
Material
Drain hos e
Vinyl tape(narrow)
Pipe
Wrap with
vinyl tape(wide)
Bundling Piping
