5. Using a screwdriver, refer to Figure 6-11 or Figure 6-12, and connect the wires as follows:
• Securely attach each wire to the terminal block.
• Bundle cabling using a cable restrainer.
• Pay attention to the location/connection of the green/yellow grounding cable. In some models, the
connection is located on the side of the actual terminal block.
• Maintain a minimum of 0.2-in. of wire length from the terminal block to cable bundle.

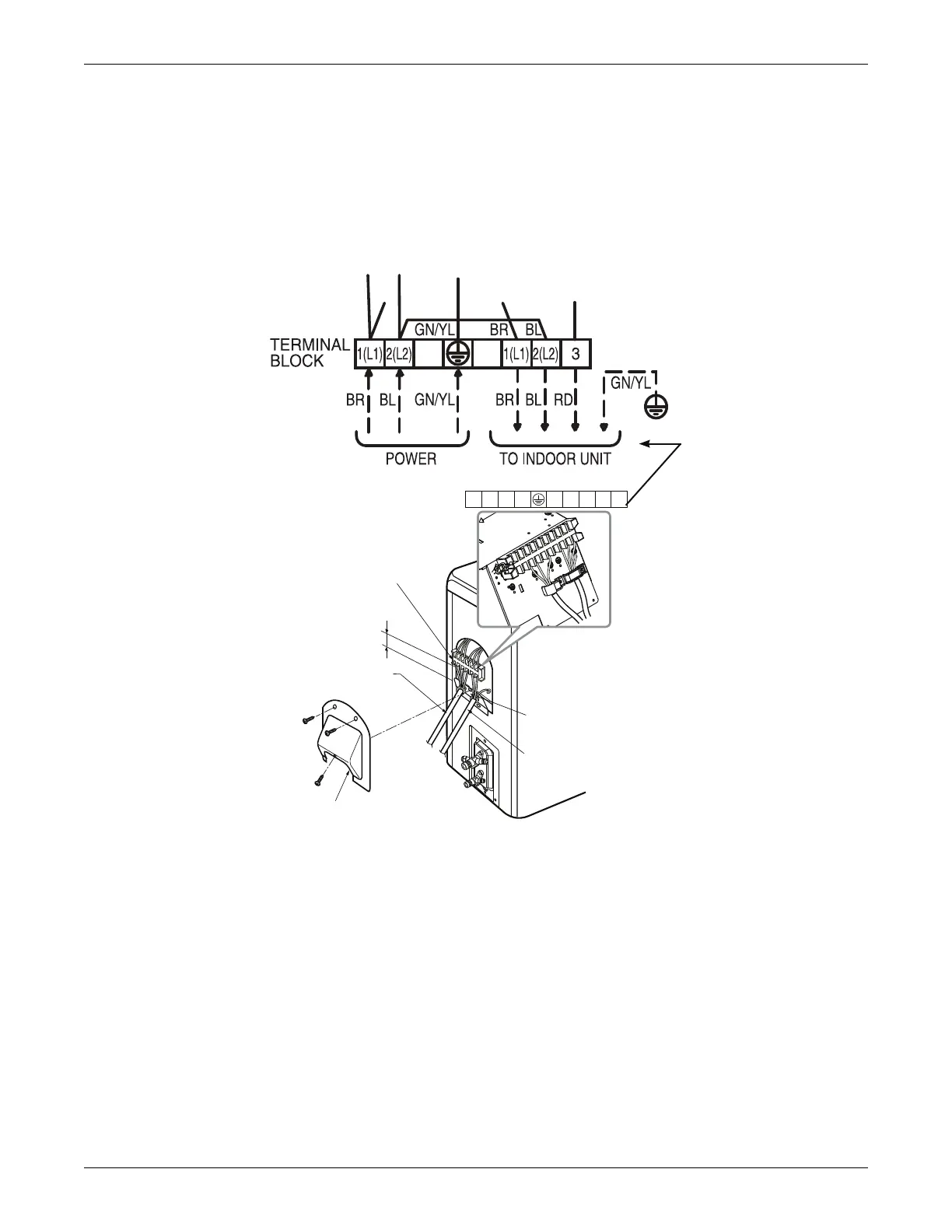

Figure 6-11 SRC18 outdoor-unit terminal-block connections
Outdoor Unit
Terminal Block
Over 0.2”
Conduit Panel
Connection/Communication
Cable (Leading to Indoor Unit)
Power Cord
Conduit Panel Cover
1(L1) 2(L2) 1(L1) 2(L2 )
3
180HSV4
