Piping
Liebert
®
SRC
™
User Manual 54
5.3.4 Installing a Drain Hose on the Outdoor Unit
Depending on the installation site, it may be necessary to install a drain plug (factory-supplied).
1. Depending on your unit model, refer to Figure 5-21 or 5-22 and to Table 5-13 for the drain-connection
components.
2. Connect a field-suppled hose to the drain connections (A). If the hose is too long, position it carefully to
prevent kinks.

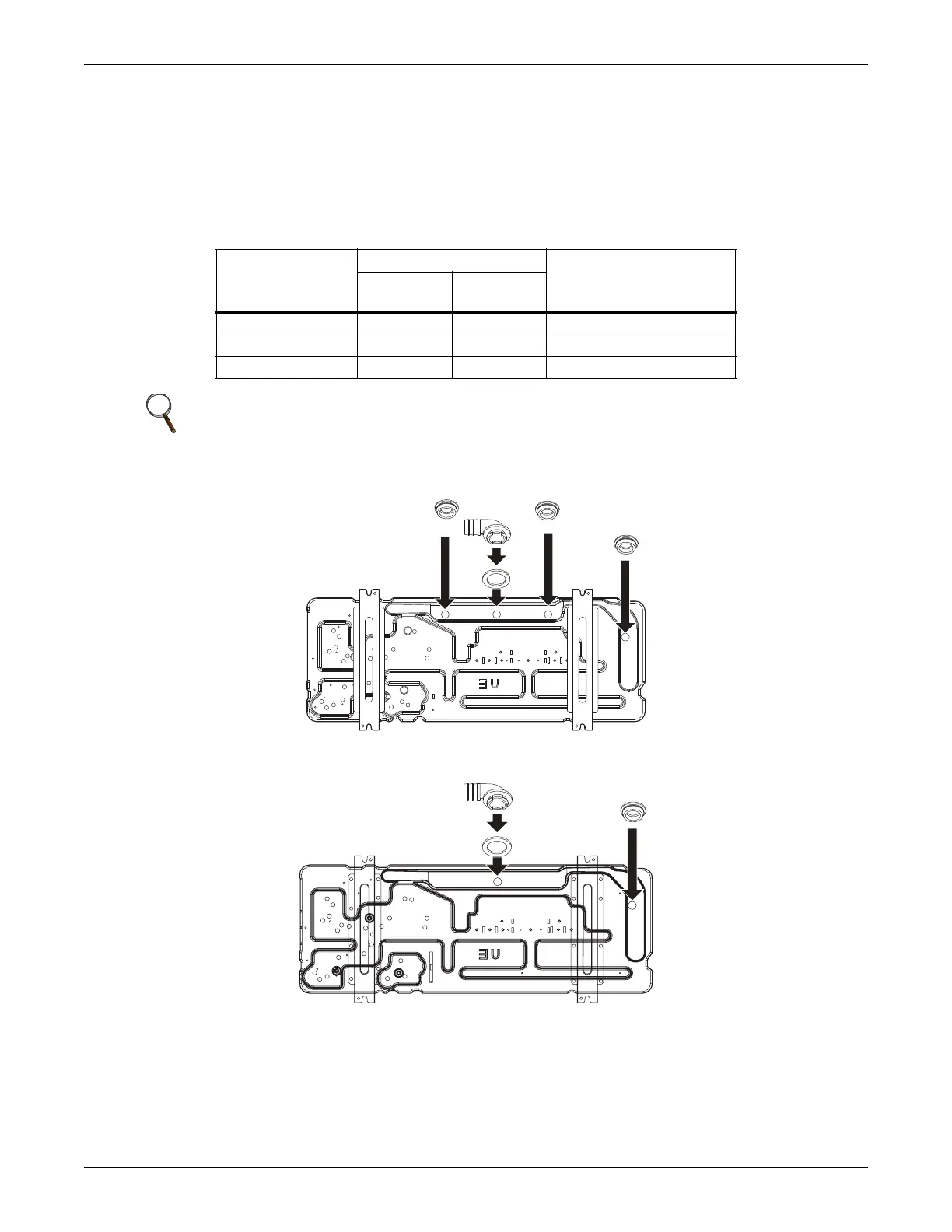

Figure 5-21 Outdoor unit drain-connection components for SRC18
Figure 5-22 Outdoor unit drain-connection components for SRC24 and SRC36
Table 5-13 Outdoor unit drain-connection components
Label
Quantity, each
ComponentSRC18
SRC24,
SRC36
A 1 1 Drain connection
B 3 1 Drain cap
C 1 1 Drain washer
NOTE
Do not use a drain hose with the outdoor unit in cold climates, otherwise the
drain water may freeze and impair heating performance.
B
B
B
A
C
B
A
C
