Piping
59 Liebert
®
SRC™ User Manual
5.3.7 Connecting Piping on the Indoor Unit
While following this procedure, refer to 5.3.2.1 - Pipe bundling for specific bundling instructions, and to
5.3.3 - Routing the Drain Hose for Indoor Unit for proper drainage slope during piping.
1. Pull the screw cap at the bottom of the indoor unit.
2. Unscrew the 3 screws at the bottom of the chassis cover, Figure 5-29, and remove the chassis cover,
taking care not to scratch the main horizontal vane.

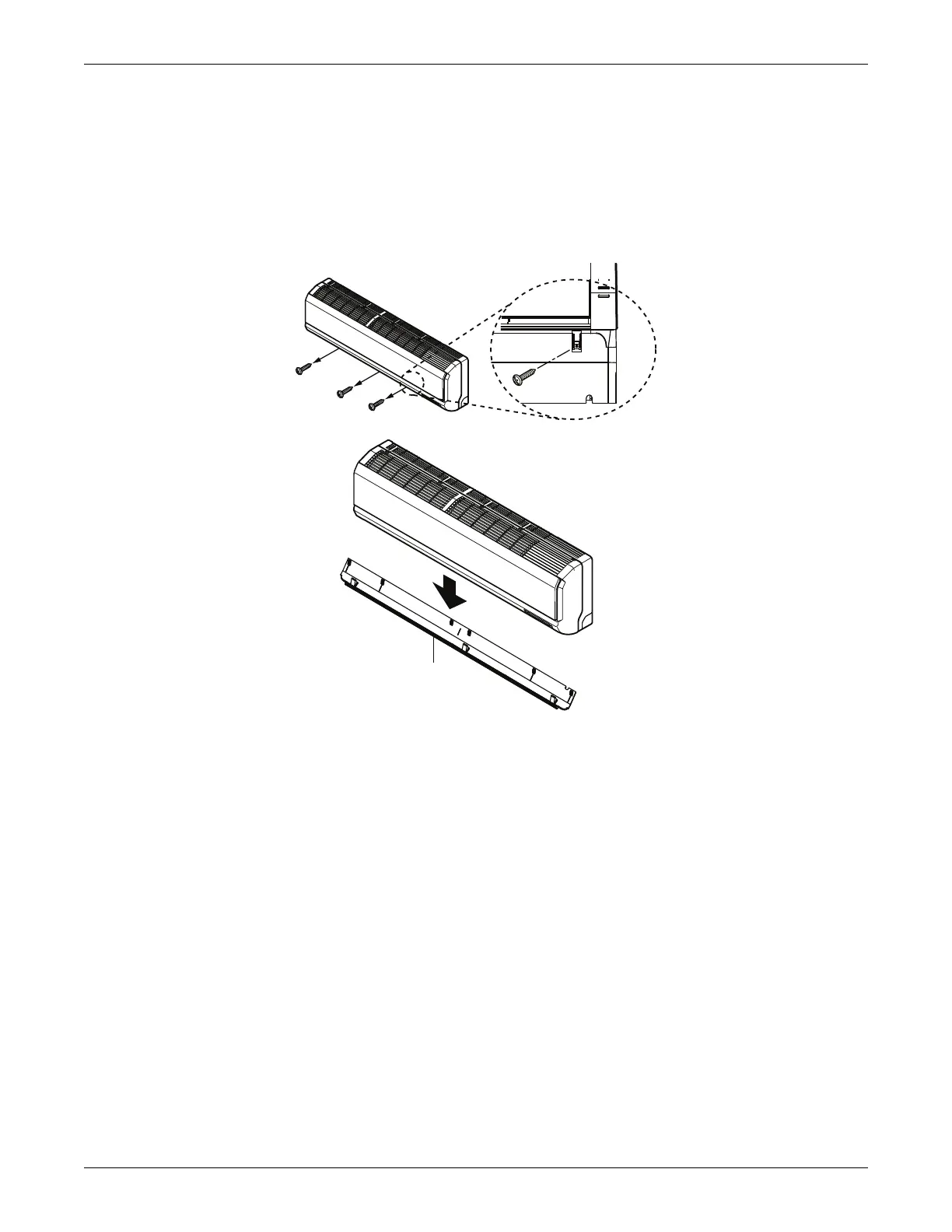

Figure 5-29 Removing the chassis cover from indoor unit
