Piping
61 Liebert
®
SRC™ User Manual
7. Make sure the tube cutting line is placed upward, Figure 5-32.

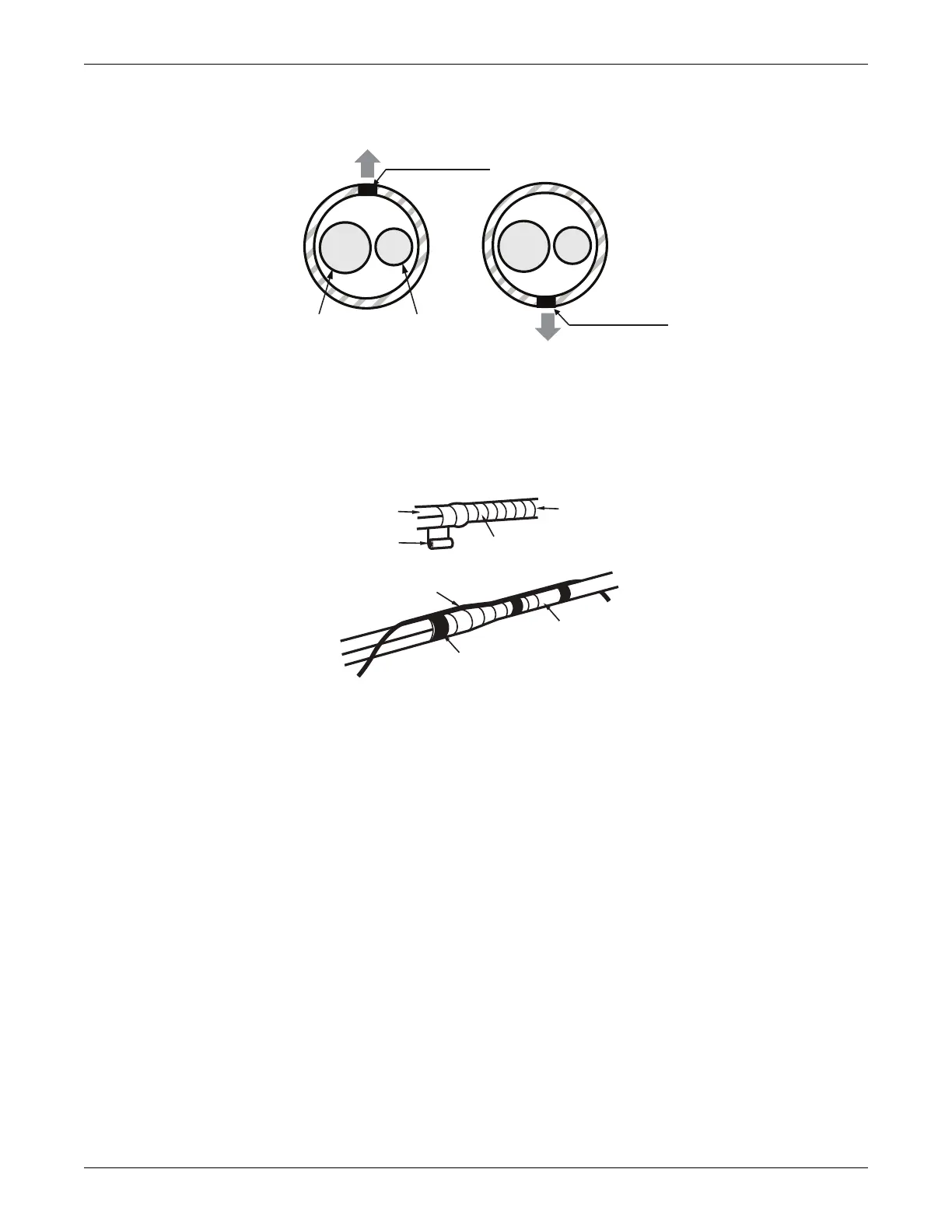

Figure 5-32 Correct cutting line placement
8. Use narrow type vinyl tape, and make sure that the section placed in the rear pipe housing is wrapped
sufficiently.
9. Continue to wrap the indoor-unit pipe connection to the outdoor-unit as shown in Figure 5-33.
Figure 5-33 Wrapping connection pipe to indoor-unit pipe
Gas Pipe
Liquid Pipe
Cutting Line
Cutting Line
Correct Incorrect
Vinyl tape(narrow )
Connection pipe
Connecting cabl e
Vinyl tape (wide)
Wrap with vinyl tape
Indoor unit pipe
Pipe
To Next Page
