Piping
55 Liebert
®
SRC™ User Manual
5.3.5 Connecting Piping on the SCR18 Outdoor Unit
1. Remove the tubing cover by loosening the fastening screws, Figure 5-23.

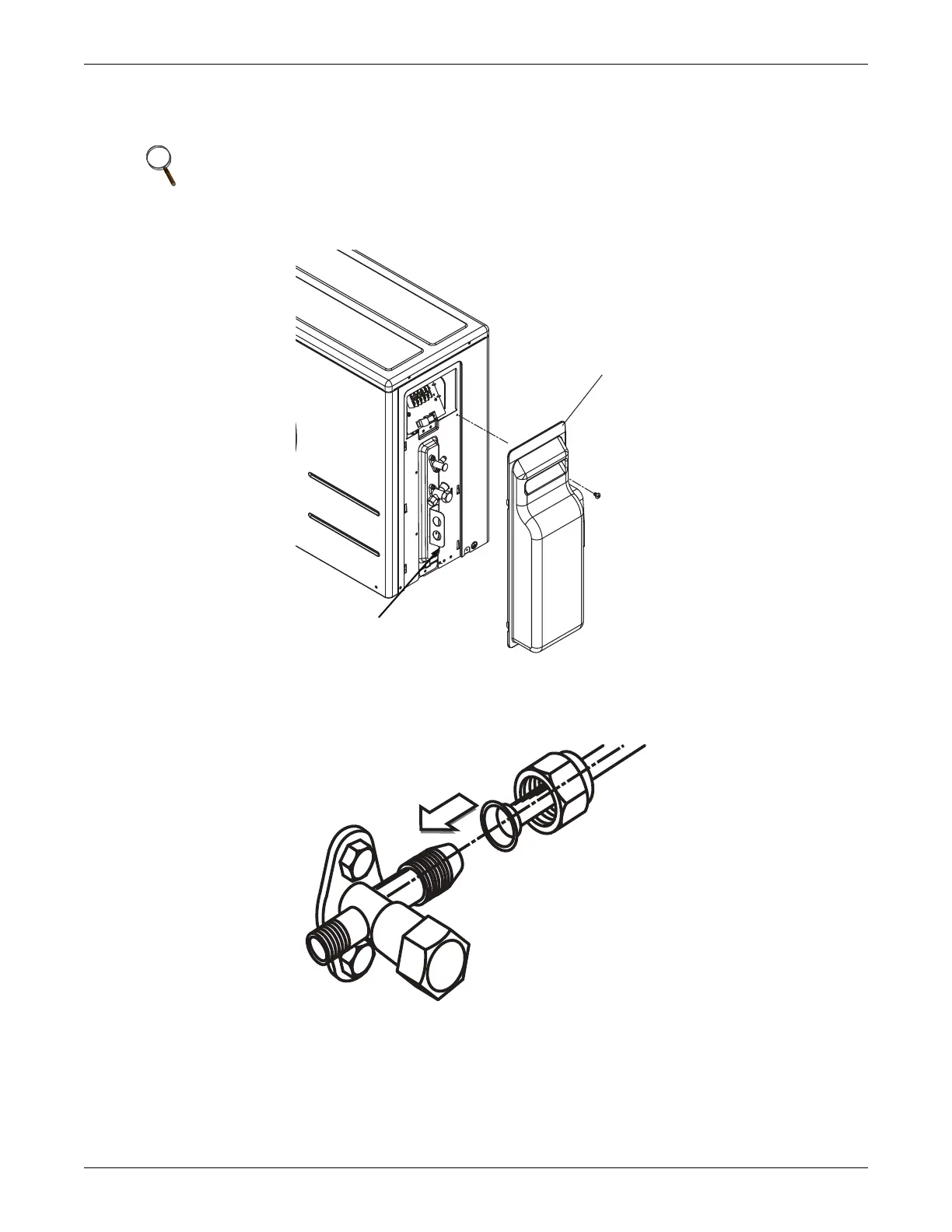

Figure 5-23 Removing connection cover from SRC18 outdoor unit
2. Align the center of the refrigerant pipe and corresponding connection as shown in Figure 5-24.
Figure 5-24 Align center of piping connection
3. Refer to Figure 5-25 for correct liquid and gas pipe attachment to the outdoor unit.
4. Place a couple of drops of refrigerant oil on the opening rim of the flare before assembling, making
sure that you do not introduce any contaminants, and tighten the flare nut by hand.
NOTE
Do not thread liquid or gas piping through bracket used to hold main power
cables.
Tubing Cover
Bracket for
Main Power Cables
