Electrical Connections
Liebert
®
SRC
™
User Manual 76
2. Using a Phillips-head screwdriver, remove the screws from the bottom panel of the indoor unit,
Figure 6-5 and set the bottom panel aside, Figure 6-6.
• The electrical/communication wiring is usually routed through the back/bottom of the indoor unit
through a knockout panel, Figure 6-7.

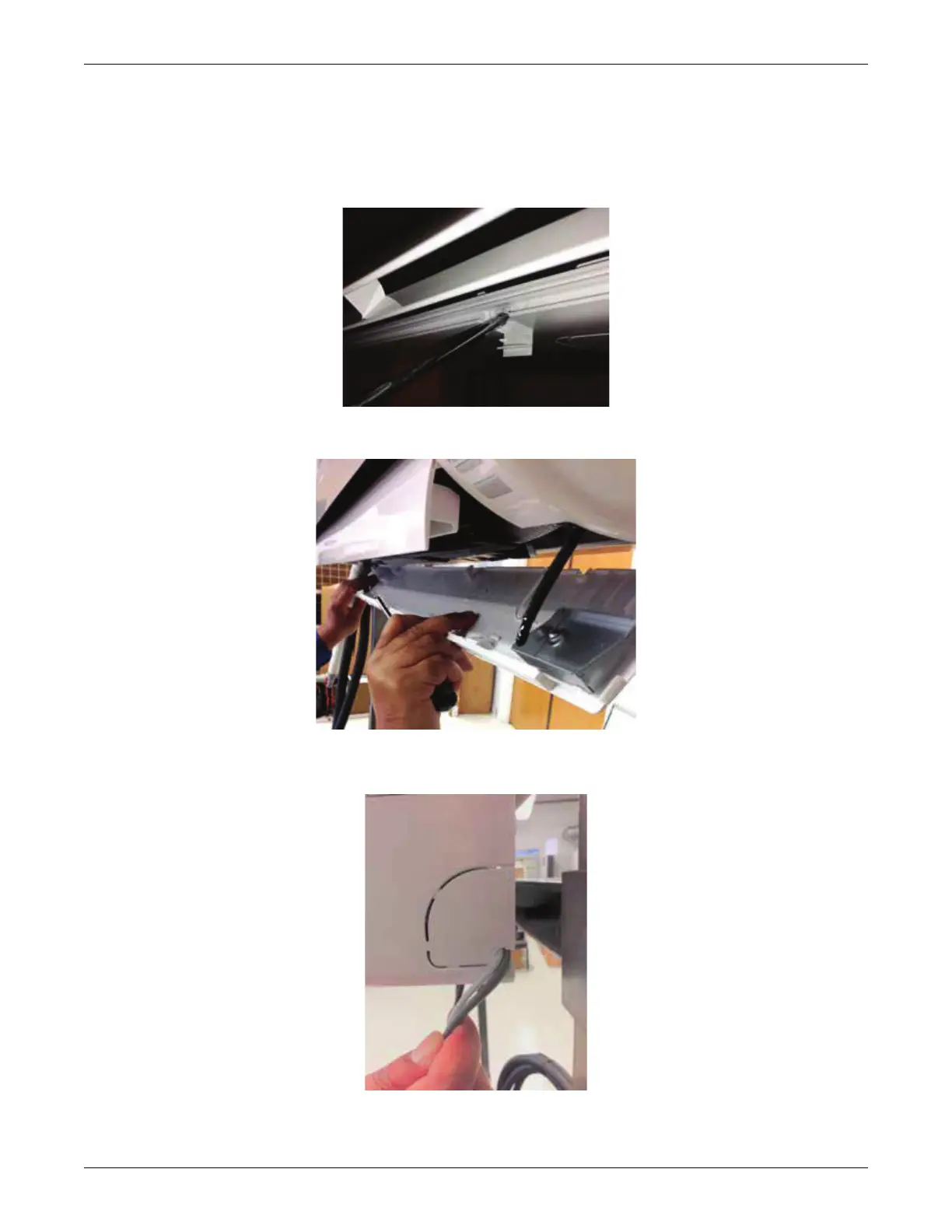

Figure 6-5 Remove screws from bottom panel
Figure 6-6 Remove bottom panel
Figure 6-7 Communication-wires knockout panel
