Piping
Liebert
®
SRC
™
User Manual 60
3. From the rear of the indoor unit, pull the tubing holder away from the unit as shown in Figure 5-30.
4. Remove the pipe port cover.
5. Position the tubing by unfolding the tubing and bending the tubing slowly downward first, as shown in
Figure 5-30.

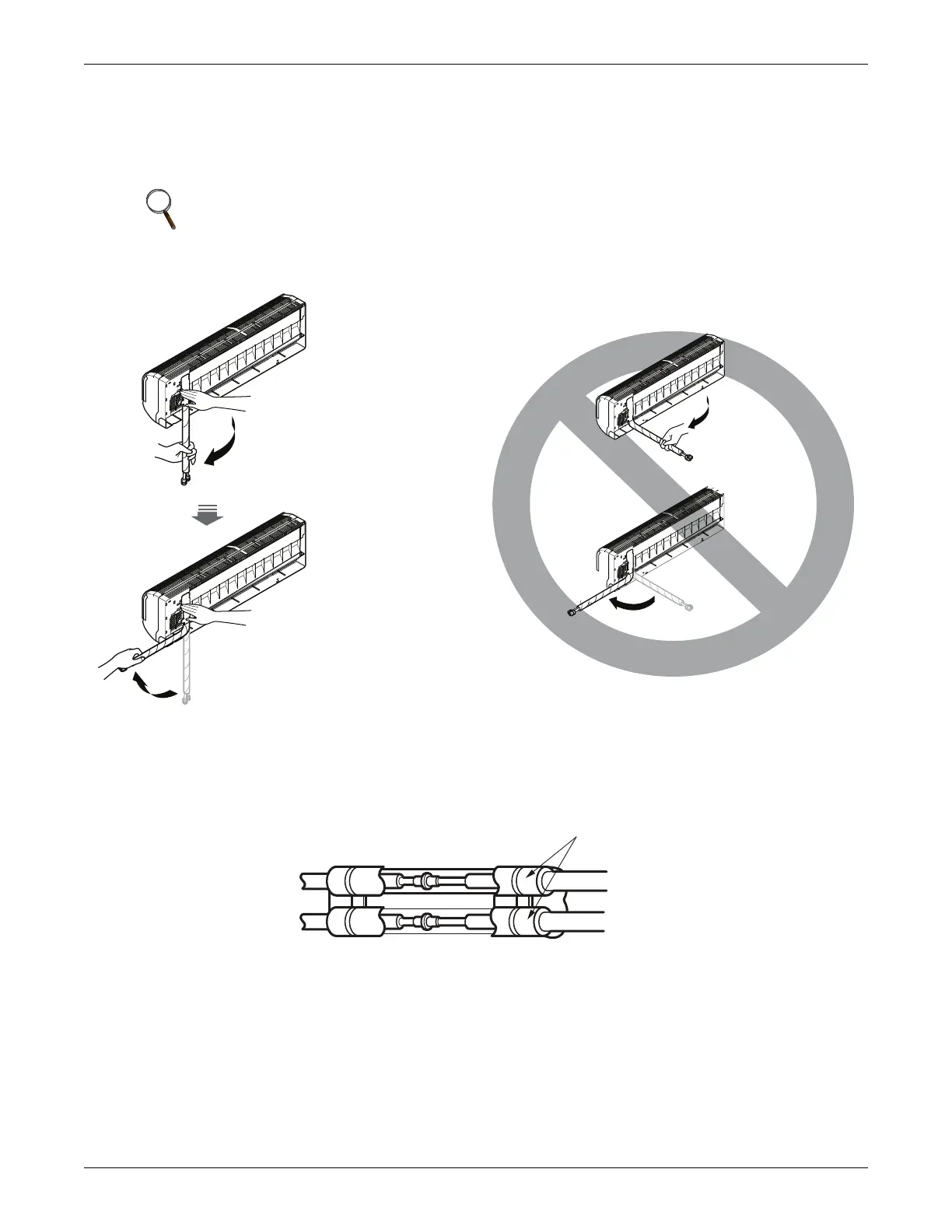

Figure 5-30 Bending drain tubing at rear of indoor unit
6. As shown in Figure 5-31, the fully encase the connection pipe and the indoor-unit pipe in insulation
material by binding them together using vinyl tape. Make sure there are not gaps when binding.
Figure 5-31 Piping connection with insulation material
NOTE
Bending the tubing directly left or right, without bending downward first, may
cause damage.
Unfold
slowly
downward
Bend from
downward position
To Next Page
