Emerson Liebert SRC18 - Figure 3-5 Outdoor-Unit Sunroof;Awning Clearances; Figure 3-6 Clearances When There Are Obstacles on both Air-Inlet and Air-Outlet Sides; Figure 3-7 Clearances When There Are Obstacles above and on both Air-Inlet and Air-Outlet Sides

Installation
25 Liebert
®
SRC™ User Manual

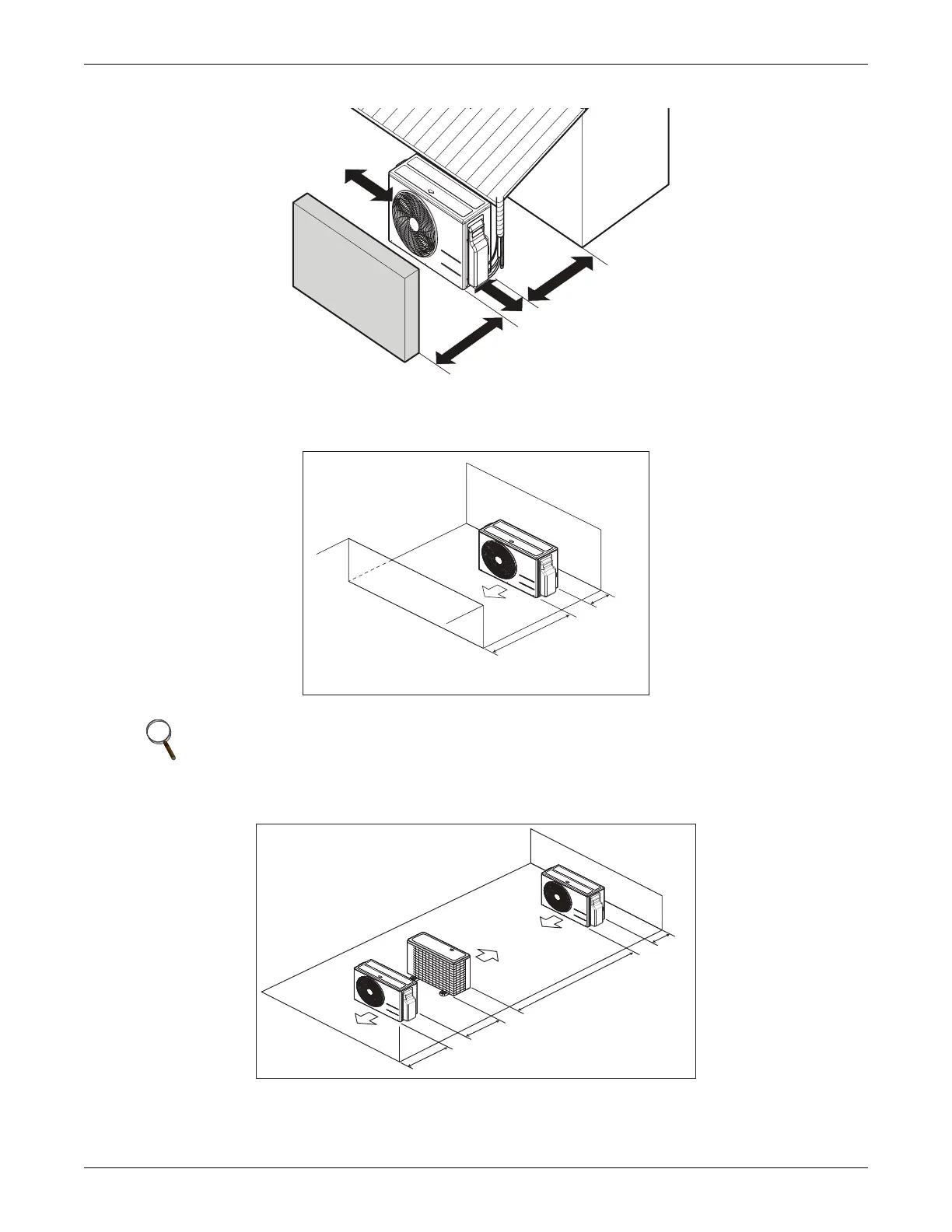

Figure 3-5 Outdoor-unit sunroof/awning clearances
Figure 3-6 Clearances when there are obstacles on both air-inlet and air-outlet sides
Figure 3-7 Clearances when there are obstacles above and on both air-inlet and air-outlet sides
NOTE
In Figures 3-6 and 3-7, the obstacle on the outlet side is lower than the
outdoor unit.
More than
12
More than
12
More than
28
Unit: Inch
More than
24
Minimum
28
Minimum
12
Unit: Inch
M
inimum
12
79
24
Minimum 28
Unit: Inch
