Emerson Process Management GmbH & Co. OHG 4-11
4
Maintenance
X-STREAM X2FD
Instruction Manual
HASXMDE-IM-EX
01/2015
4.3 Vapor Recovery Application - Special Information

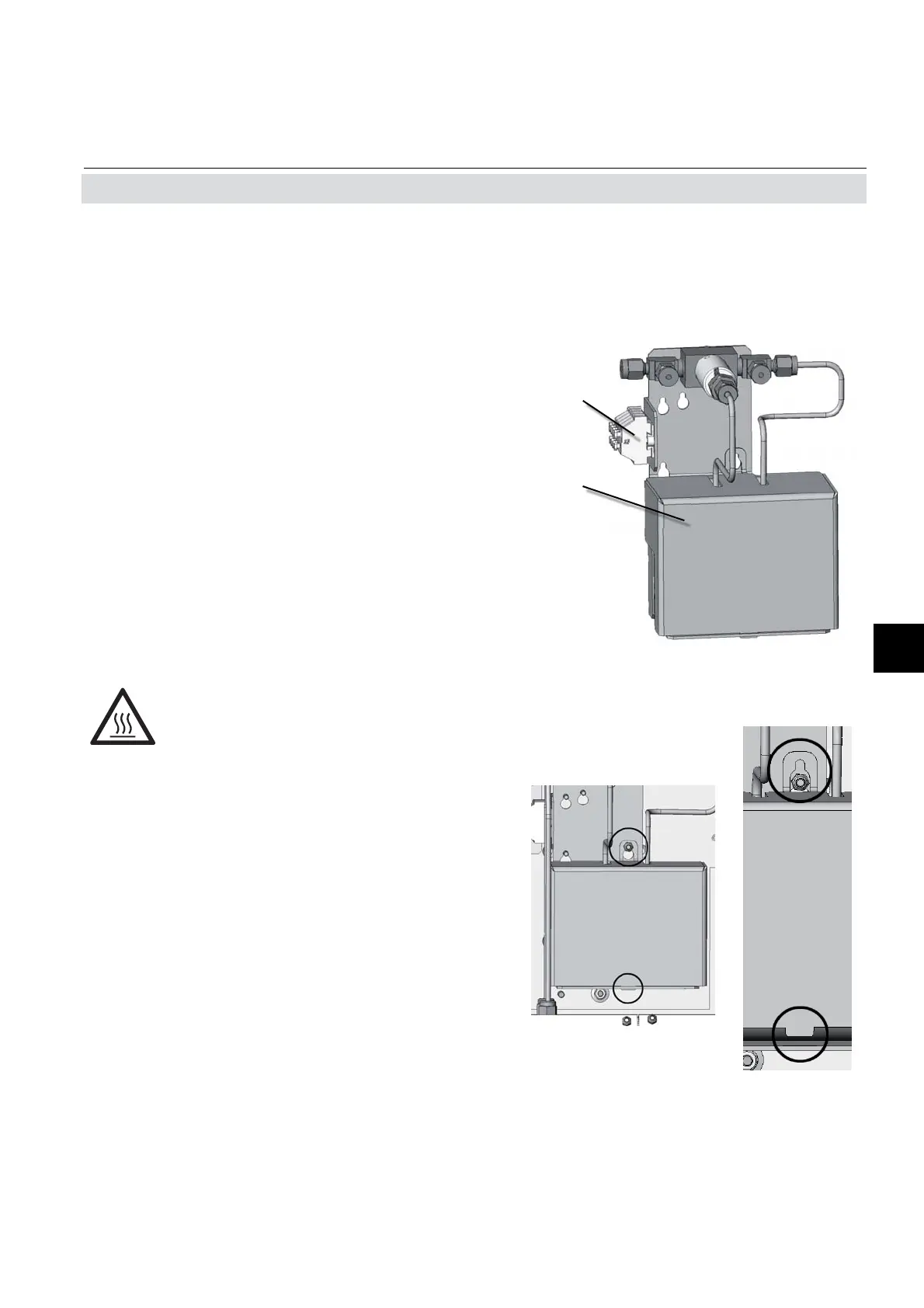

Fig. 4-4: Converter assembly
Fig. 4-5: Converter assembly details
To replace the converter material:
• consider all applicable safety instructions
and measures to switch off the analyzer
and connected signals
• read the waiting time label on the front
door and wait for the time specifi ed
• carefully open the front door (High weight!
Take care not to damage the door!)
The converter is installed behind a metallic
cover, which is fi xed with a screw nut and a
key (Fig. 4-5). Loosen the screw nut a few
turns (don‘t remove it) and push the cover
upwards until the key is free to remove the
cover (Fig. 4-6).
Now you have access to the inner thermosta-
ted jacket (Fig. 4-6).
Heating elements are inside the
isolating jacket!
Accessible components still may
be hot and harmful to humans!
1
2
1: Terminals
2: Metallic cover
4.3.2 Replacement Instructions
