1.6 Nameplate Label
1.6 Nameplate Label (Examples)

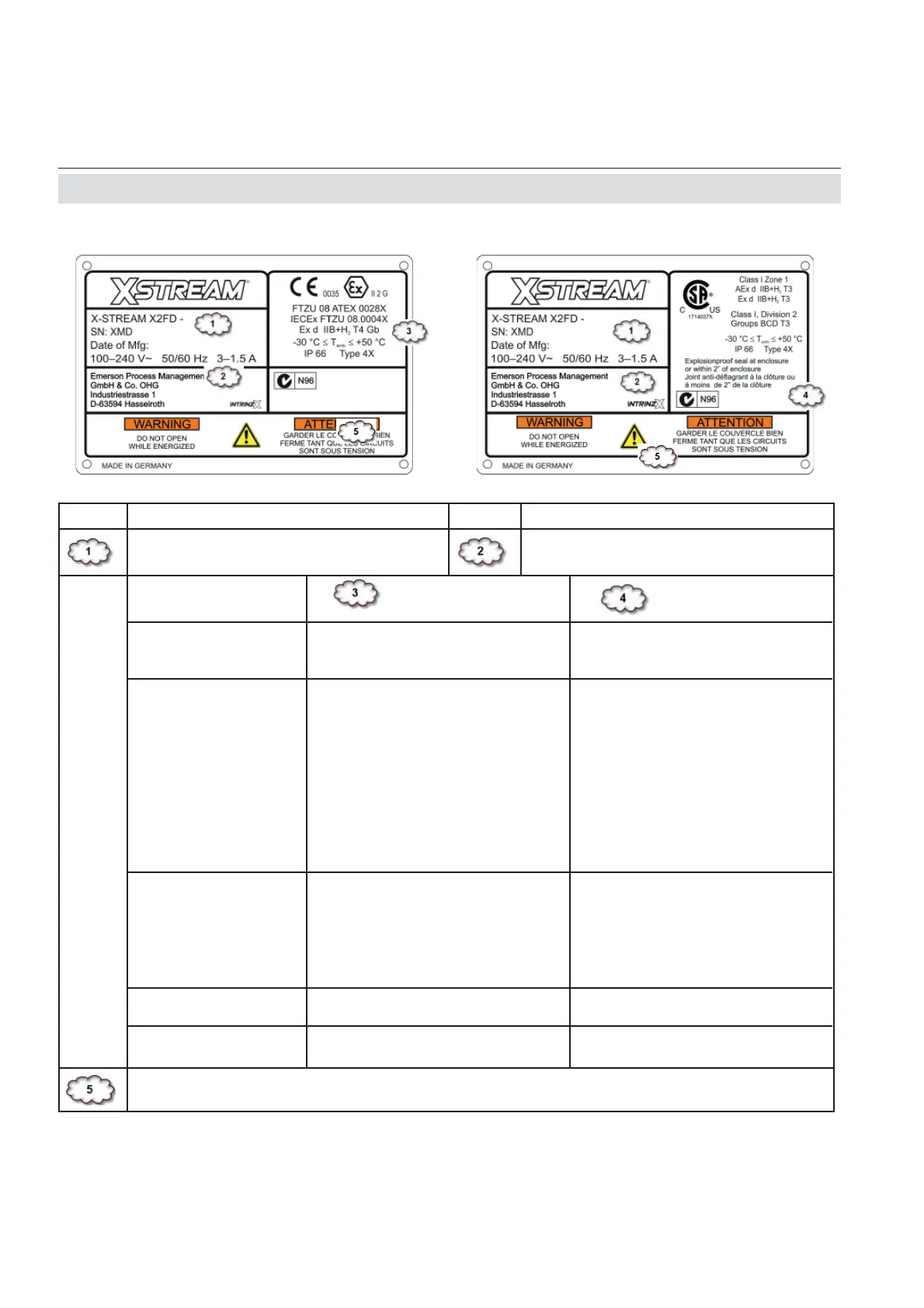

Fig. 1-3: Nameplate Label Details (exemplary)
Area Description Area Description
The analyzer´s electrical data, manufac-
turing data and serial number
Manufacturer address
Certifi cation Data
IECEx /
EU (ATEX)
North America (CSA)
Area classifi cation
II other than mines
2 Category 2 Equipm. (Zone 1)
G for explosive Gas atmosphere
Class I Flammable gases,
vapors or liquids
Zone 1 Zone 1 areas
Protection concepts
Ex Explosion protected
d fl ameproof
IIB+H
2
Group II, Gas Group B
plus Hydrogen
T4 Temperature Class (135 °C)
Gb Equipment Protection Level
T
amb
Ambient Temperature Range
IP66, Type 4X Enclosure Rating
(outdoor use)
AEx Explosion protected (US)
Ex Explosion protected (CAN)
d fl ameproof
IIB+H
2
Group II, Gas Group B
plus Hydrogen
T3 Temperature Class (200 °C)
T
amb
Ambient Temperature Range
IP66, Type 4X Enclosure Rating
(outdoor use)
Additional Division
Marking, if applica-
ble
--
Class I Flammable gases,
vapors or liquids
Division 2 Division 2 areas
Groups BCD all Gases, except
Acetylene
T3 Temperature Class (200 °C)
Certifi cate numbers
IECEx FTZU 08.0004X
FTZU 08 ATEX 0028 X
1714037X
Other
CE mark, number of Notifi ed
Body for Quality assessment
Instruction note where to install
the explosion proof seal
Additional warning: Do not open the instrument while energized. Consult manual!
CSA-C/US versionATEX/IECEx version
