Emerson ROSEMOUNT Xstream X2 Series - 1.7 Technical Data; Fig. 1-4: Dimensions

Emerson Process Management GmbH & Co. OHG 1-7
1
Techn. Description
X-STREAM X2FD
Instruction Manual
HASXMDE-IM-EX
01/2015
1.7 Technical Data
1.7 Technical Data
Housing
Permissible operating ambient
temperature range, max.
*)
-20 °C to +50 °C (-4 F to +122 F)
Permissible storage ambient tem-
perature range
-30 °C to +70 °C (-22 F to +158 F)
Weight: approx. up to 63 kg (139 lbs)
(depending on analyzer confi guration)
Protection class:
IP 66 (EN 60529) / Type 4X for outdoor installation (if appli-
cable, see nameplate label !)
Analyzer must not be exposed to direct sun light
Gas fi ttings: quantity: max. 8
specifi cation: fl ame arrestors with fi ttings
connections: 6/4 mm or
1
⁄4“, stainless steel
Cable inlets
(enclosure threads; M20 x 1.5)
Flame arrestors with gas fi ttings
(enclosure threads: M18 x 1.5)
Eyebolt detail
All dimensions in mm
[inches in brackets]
Transport lugs to be removed after installation

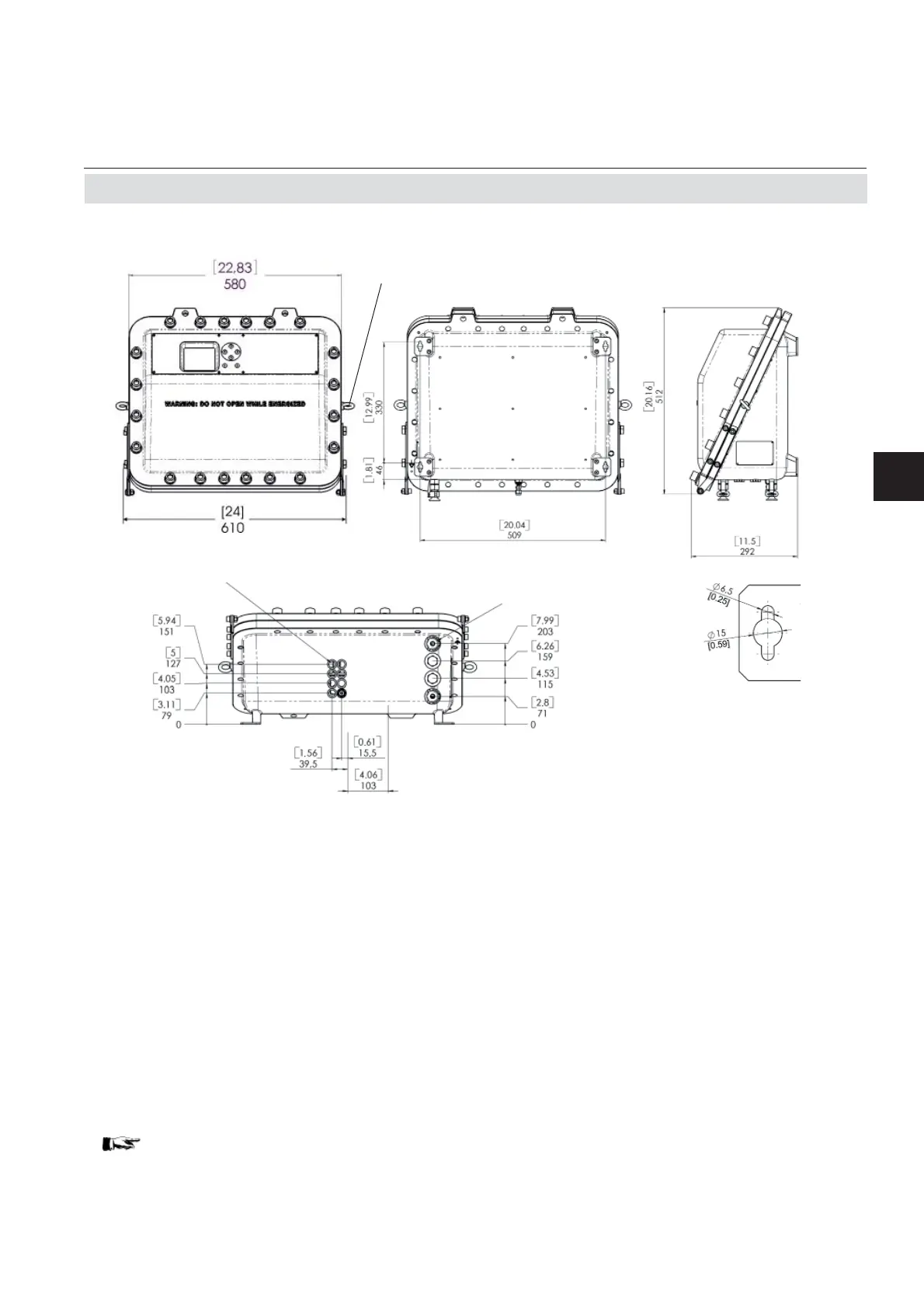

Fig. 1-4: Dimensions
*)
: Limitations apply to selected measurement principles and ranges,
Measurement specifi cations!
