Emerson Process Management GmbH & Co. OHG2-4
X-STREAM X2FD
Instruction Manual
HASXMDE-IM-EX
01/2015
Install the analyzer to a stand or a wall by
means of 4 eyebolts, provided at the instru-
ments rear side.
It is recommended to install the analyzer in an
upright (vertical) position; other orientations
may affect the measuring results.
2.2 Installation - Analyzer

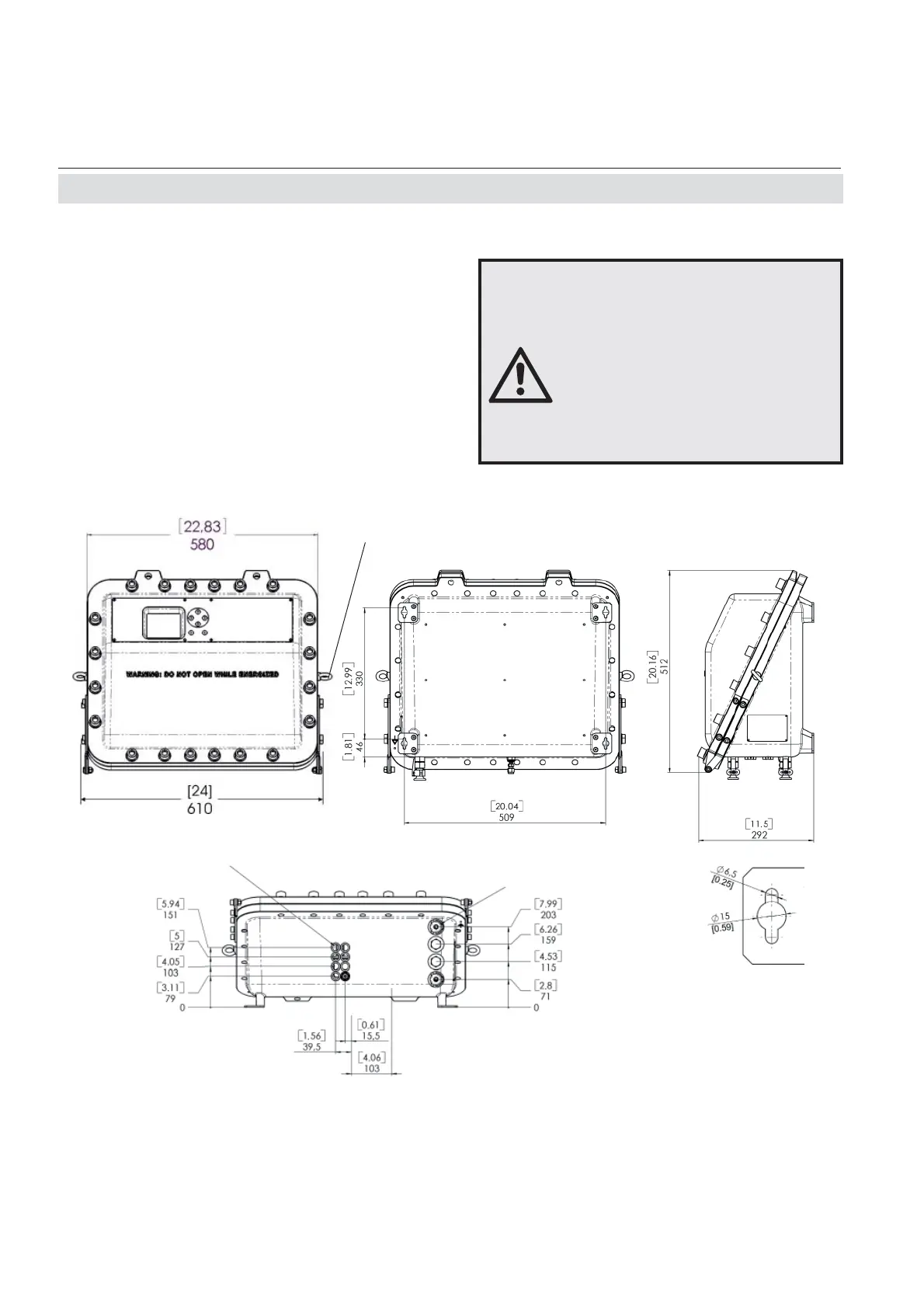

Fig. 2-2: Dimensions
IMPORTANT NOTE
When installing the analyzer
take care to have an area of min.
40 mm surrounding the fl ange
free of any solid components
not part of the instrument, to
ensure proper function of the
fl ange!
Cable inlets
(enclosure threads; M20 x 1.5)
Flame arrestors with gas fi ttings
(enclosure threads: M18 x 1.5)
Eyebolt detail
All dimensions in mm
[inches in brackets]
Transport lugs to be removed after installation
