Emerson Process Management GmbH & Co. OHG 2-23
2
Installation
X-STREAM X2FD
Instruction Manual
HASXMDE-IM-EX
01/2015
Connecting an optional equipotential
bonding conductor
The X-STREAM X2FD enclosure provides
an additional terminal for connecting an equi-
potential conductor, located at the base part
fl ange´s rear side (see fi g. 2-14), near the
nameplate label.
Screw thread: M5 x 10 mm
Conductor cross section: min. 4 mm²
The installation has to comply with sound
engineering practice (see example to the
right). Take care of contact corrosion due to
the aluminum cast enclosure.

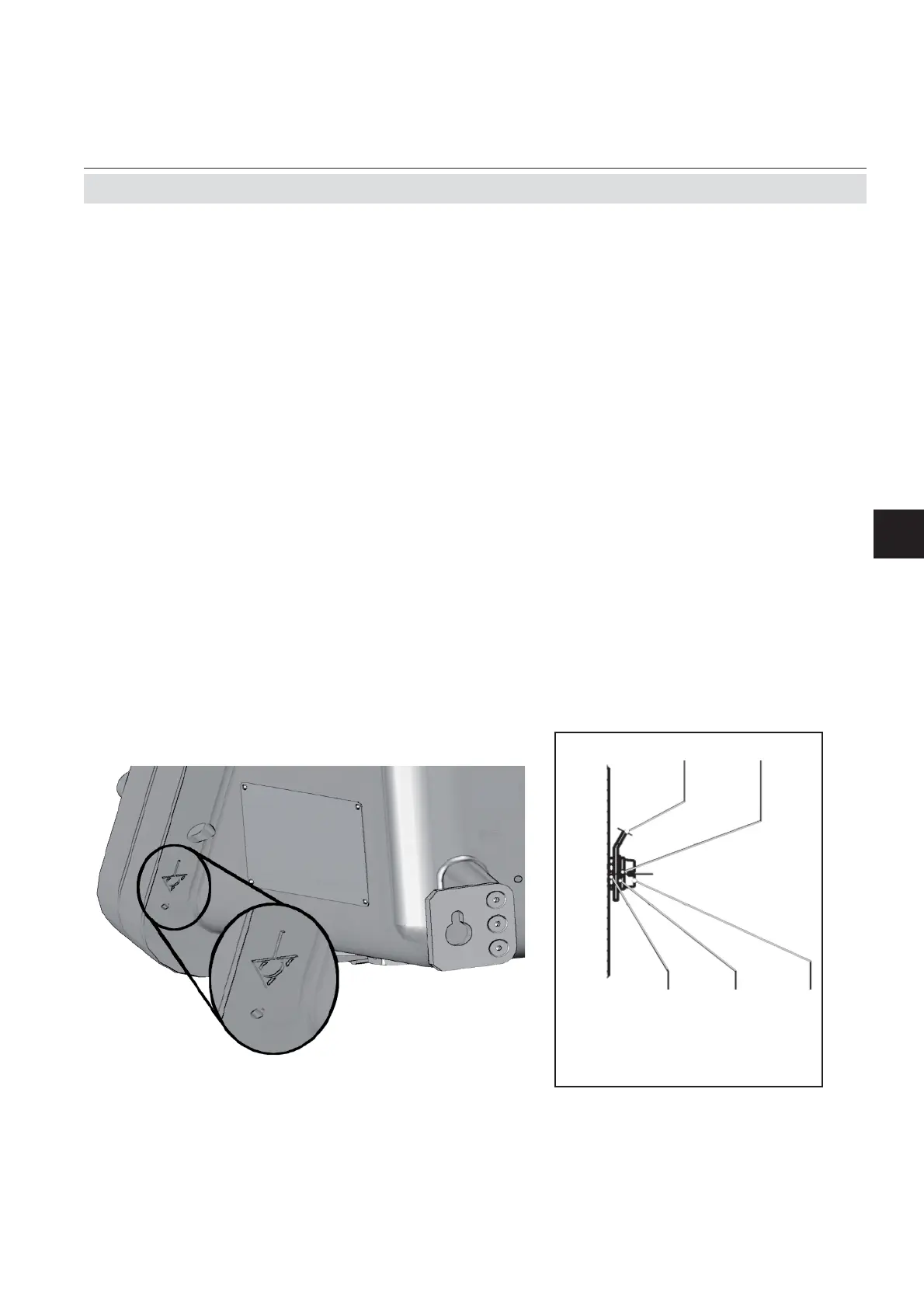

Fig. 2-16: Equipotential bonding conductor terminal
2.5 Installation - Electrical
1
2
3
4
5
1 Lock washer
2 Ring terminal
3 Flat washer
4 Lock washer
5 Screw M5
