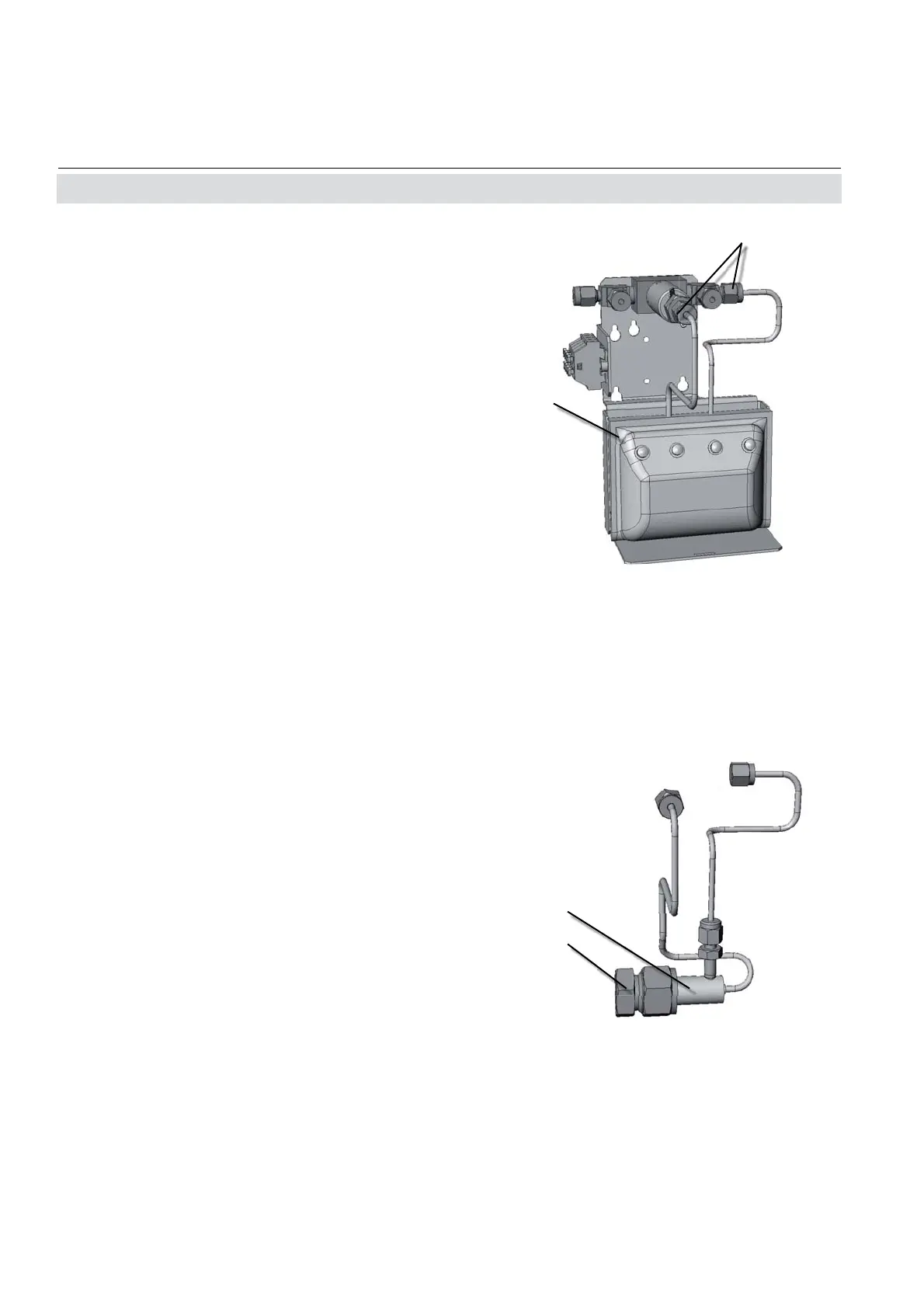

Fig. 4-6: Heated jacket
1: Jacket
2: Union nuts
1
1. Loosen the lace cord that keeps the jacket
closed.
2. Open the jacket to get access to the con-
verter.
3. Loosen the union nuts of the fi ttings that
connect the gas lines from the converter
to the solenoid valve (Fig. 4-6).
Fig. 4-7: Converter, laid open
1: Converter vessel
2: End cap
1
2
4.3 Vapor Recovery Application - Special Information
4. Take the converter vessel with connected
gas lines out of jacket and analyzer.
2
