Unidrive SPM User Guide 19
Issue Number: 3 www.controltechniques.com
3.5 Nameplate description
See Figure 3-1 Features of the Unidrive SPM Modules for location of rating labels.

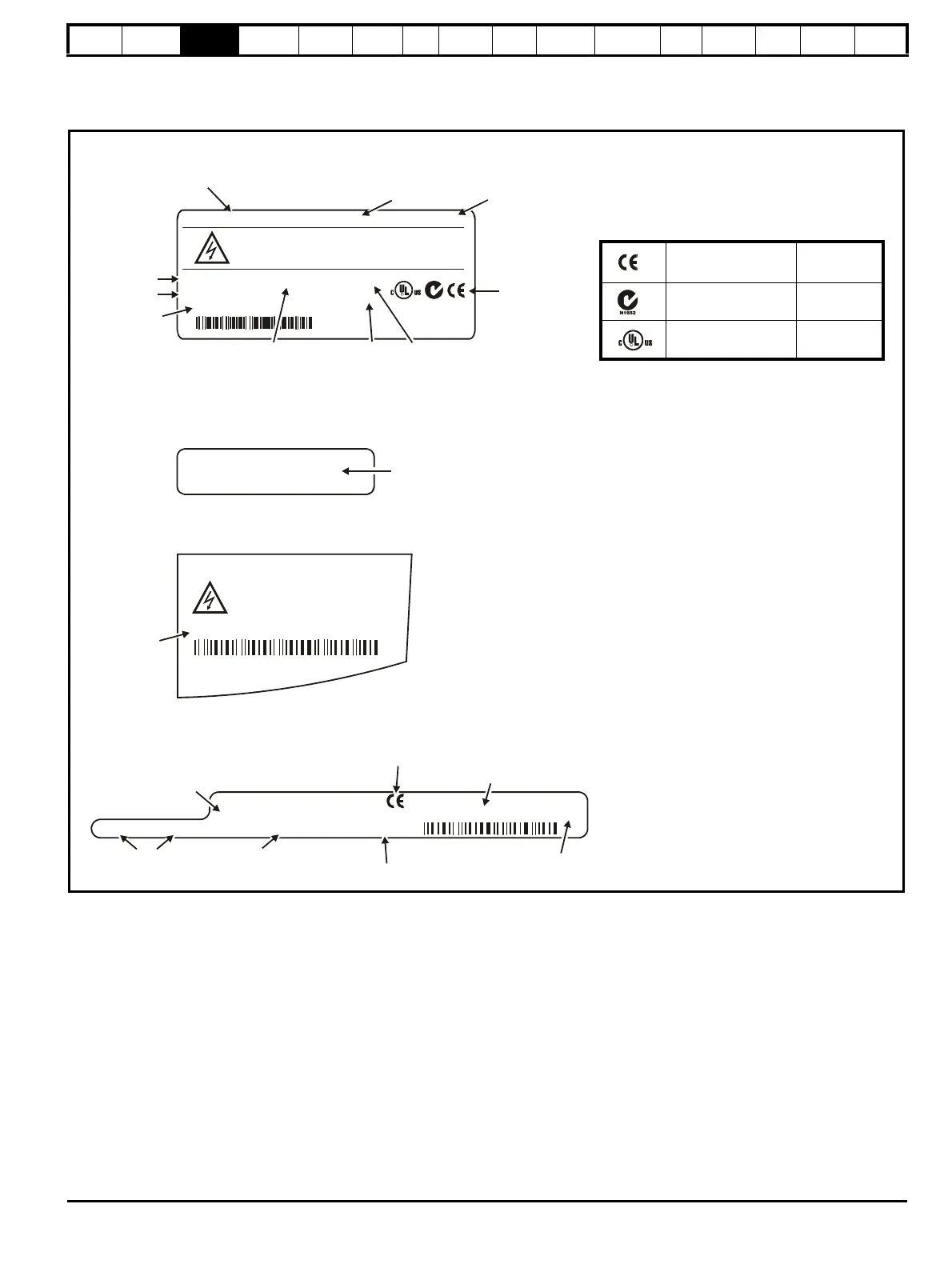

Figure 3-2 Typical drive rating labels
Rating label
(SPMA / SPMD - Master and Slave)
S.No:
3000005001
Serial
number
Please read manual before connecting.
Electric Shock Risk: Wait 10 min between
disconnecting supply & removing covers
Ser No:
3000005001
Serial
number
Approvals label B
(SPMA / SPMD - Master only)
Model
Heavy Duty /
Normal Duty
power rating
Customer and
date code
Approvals
Please read manual before connecting.
SPMA1601 90 / 110kW
STDN39
Electric Shock Risk: Wait 10 min between
disconnecting supply & removing covers
Ser No: 3000005001
Made In U.K
Serial
number
SP 100 TH
Approvals label A
(SPMA / SPMD - Master and Slave)
I/P 500-690V 50-60Hz 3ph 128.0A
O/P 0-690V
100 / 125A
Input voltage
Output voltage
Input
frequency
No. of phases &
Typical input current for
Normal Duty rating
Heavy Duty /
Normal Duty
rating output current
Rectifier rating label
(SPMC / SPMU only)
Status1 Status0
I/P 380-480V 50-60Hz 3ph 204A
O/P 513-648V 219A
Ser No:
3000005001
STDN39
Customer and
date code
Serial
number
Approvals
Model
Input voltage, frequency,
no. of phases and current
Output voltage and current
CE approval Europe
C Tick approval Australia
UL / cUL approval
USA &
Canada
