Parallel control connections

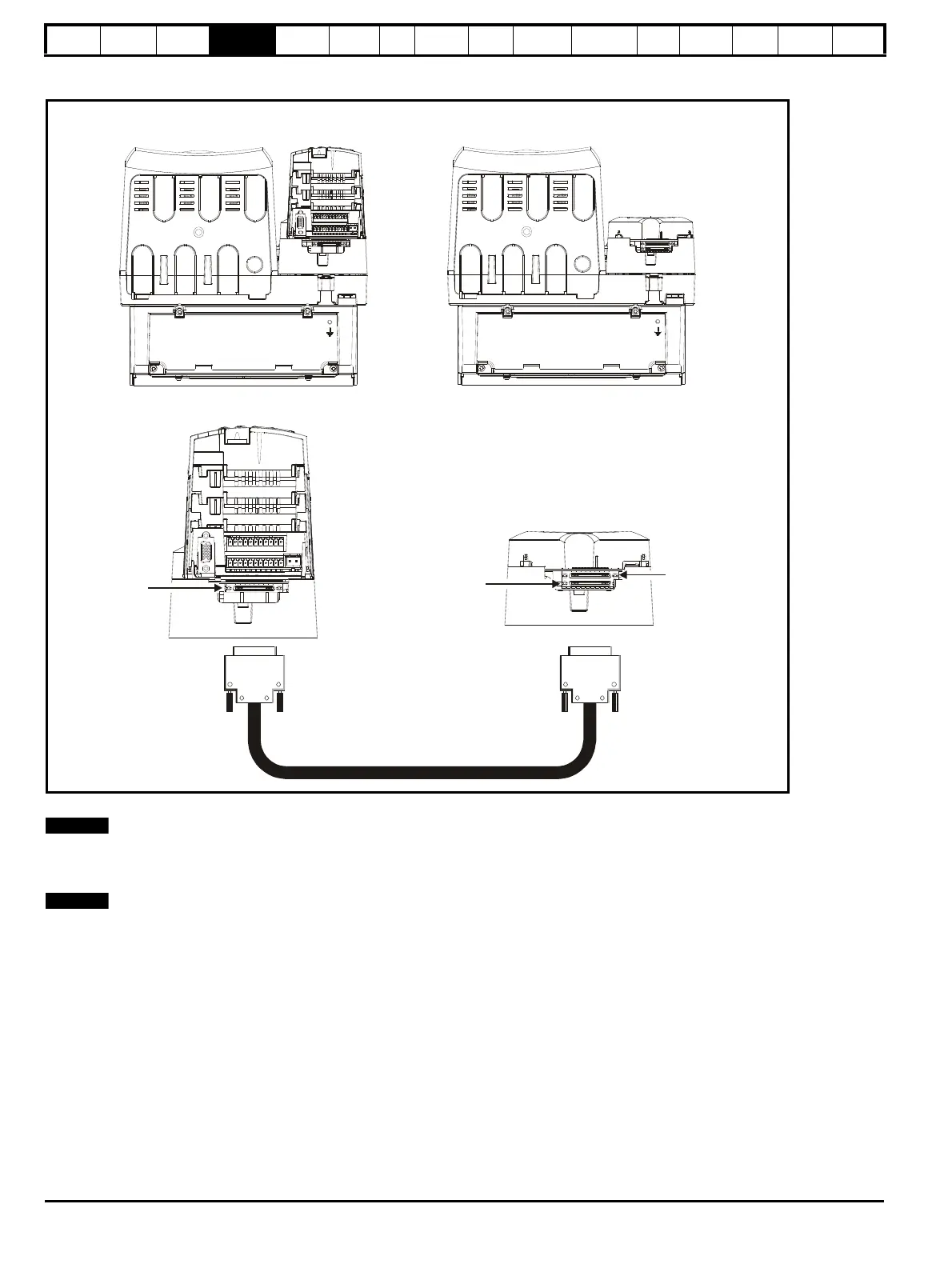

Figure 4-8 Parallel control connections
*Only supplied with slave drive.
N
The parallel cable should be routed according to the rules shown in
Figure 6-25 Sensitive signal circuit clearance on page 84 for the control
cable.
N
The screw locks on the parallel cable must be fully tightened.
Control master pod Control slave pod
Output from
master to slave
Input from
master to slave
Output from slave
to second slave
