Unidrive SPM User Guide 55
Issue Number: 3 www.controltechniques.com

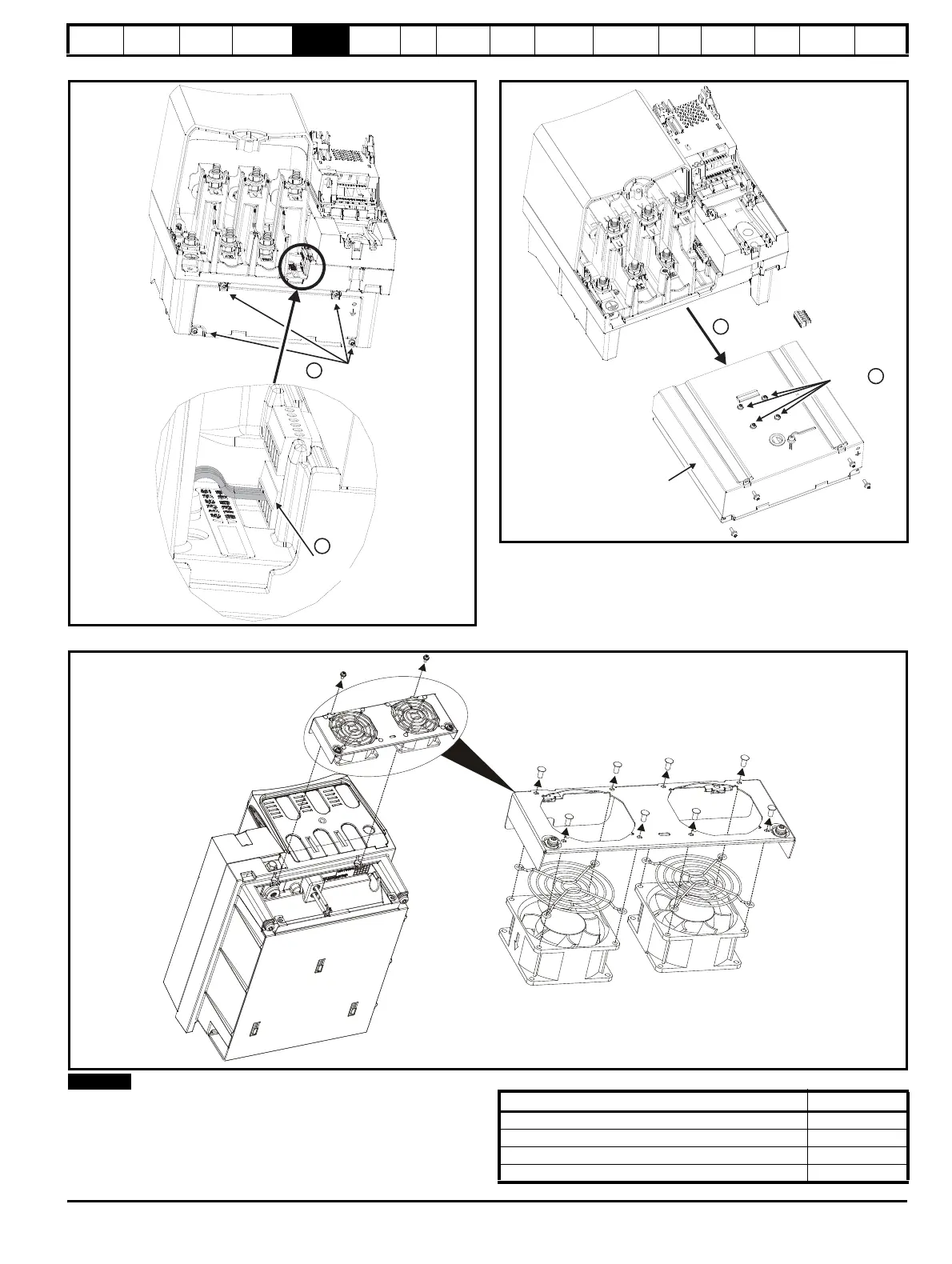

Figure 5-36 Removal of Unidrive SPMA/D fan (part 1) Figure 5-37 Removal of Unidrive SPMA/D fan (part 2)
1. Remove the cable from the fan connector
2. Undo fan cassette screws
3. Slide fan cassette out of heatsink chamber
4. Remove fan screws in order to remove fan from cassette
Figure 5-38 Removal of Unidrive SPMC/U fan
The following rectifiers only have one fan included in their assembly:
SPMU1402
SPMC/U1601
Table 5-5 Unidrive SPM fan assembly part numbers
Fan cassette
screws
Fan
connector
1
2
Fan
connector
(removed)
Fan
cassette
Fan
screws
3
4
NOTE
Model Fan assembly
SPMA, SPMD14X1, SPMD14X2, SPMD16X1, SPMD16X2 9701-0019
SPMD14X3, SPMD14X4, SPMD16X3, SPMD16X4 9701-0020
SPMC1402, SPMC/U2402, SPMC/U2601 9701-0021
SPMU1402, SPMC/U1601 9701-0022
