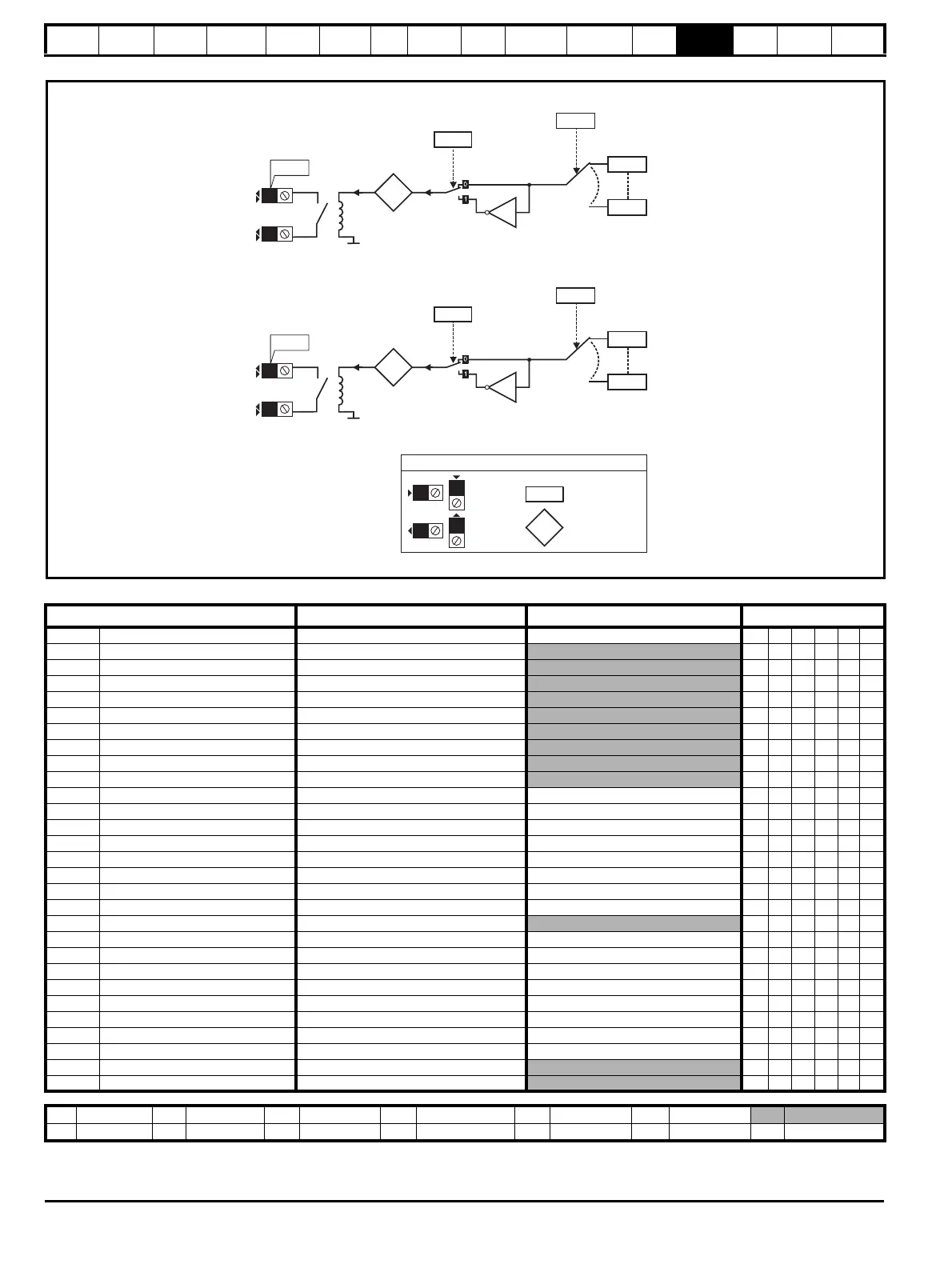

Figure 13-45 SM-I/O 120V relay diagram
SM-I/O 120V parameters
*See trip SLX.Er, Automation (I/O Expansion) module category on page 286 .
Relay 2
x.28
??.??
x.18
Relay 2
invert
??.??
0V
x.08
Relay 2
state
Relay 2
source
11
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
X
X
X
X
The parameters are all shown at their default settings
x(-1)
Relay 1
x.27
??.??
x.17
Relay 1
invert
??.??
0V
x.07
Relay 1
state
Relay 1
source
11
x(-1)
Any
parameter
Any
parameter
10
12
Parameter
Range(
Ú) Default(Ö)
Type
x.01 Solutions Module ID 0 to 599 206 RO Uni PT US
x.02 Solutions Module software version 0.00 to 99.99 RO Uni NC PT
x.03 T4 digital input 3 state OFF (0) or On (1) RO Bit NC PT
x.04 T5 digital input 4 state OFF (0) or On (1) RO Bit NC PT
x.05 T7 digital input 5 state OFF (0) or On (1) RO Bit NC PT
x.06 T8 digital input 6 state OFF (0) or On (1) RO Bit NC PT
x.07 Relay 1 state OFF (0) or On (1) RO Bit NC PT
x.08 Relay 2 state OFF (0) or On (1) RO Bit NC PT
x.09 T1 digital input 1 state OFF (0) or On (1) RO Bit NC PT
x.10 T2 digital input 2 state OFF (0) or On (1) RO Bit NC PT
x.11 T1 digital input 1 invert OFF (0) or On (1) OFF (0) RW Bit US
x.12 T2 digital input 2 invert OFF (0) or On (1) OFF (0) RW Bit US
x.13 T4 digital input 3 invert OFF (0) or On (1) OFF (0) RW Bit US
x.14 T5 digital input 4 invert OFF (0) or On (1) OFF (0) RW Bit US
x.15 T7 digital input 5 invert OFF (0) or On (1) OFF (0) RW Bit US
x.16 T8 digital input 6 invert OFF (0) or On (1) OFF (0) RW Bit US
x.17 Relay 1 invert OFF (0) or On (1) OFF (0) RW Bit US
x.18 Relay 2 invert OFF (0) or On (1) OFF (0) RW Bit US
x.20 Digital I/O read word 0 to 255 RO Uni NC PT
x.21 T1 digital input 1 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.22 T2 digital input 2 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.23 T4 digital input 3 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.24 T5 digital input 4 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.25 T7 digital input 5 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.26 T8 digital input 6 destination Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni DE PT US
x.27 Relay 1 source Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni PT US
x.28 Relay 2 source Pr 0.00 to Pr 21.51 Pr 0.00 RW Uni PT US
x.50 Solutions Module error status* 0 to 255 RO Uni NC PT
x.51 Solutions Module software sub-version 0 to 99 RO Uni NC PT
RW Read / Write RO Read only Uni Unipolar Bi Bi-polar Bit Bit parameter Txt Text string
FI Filtered DE Destination NC Not copied RA Rating dependent PT Protected US User save PS Power down save
