5.8 Enclosure
5.8.1 Enclosure layout
Observe the clearances in Figure 5-3 taking into account any appropriate notes for other devices / auxiliary equipment when planning the installation.
A Unidrive SPMA is shown, but the illustration also applies to a docked Unidrive SPMD and SPMC.

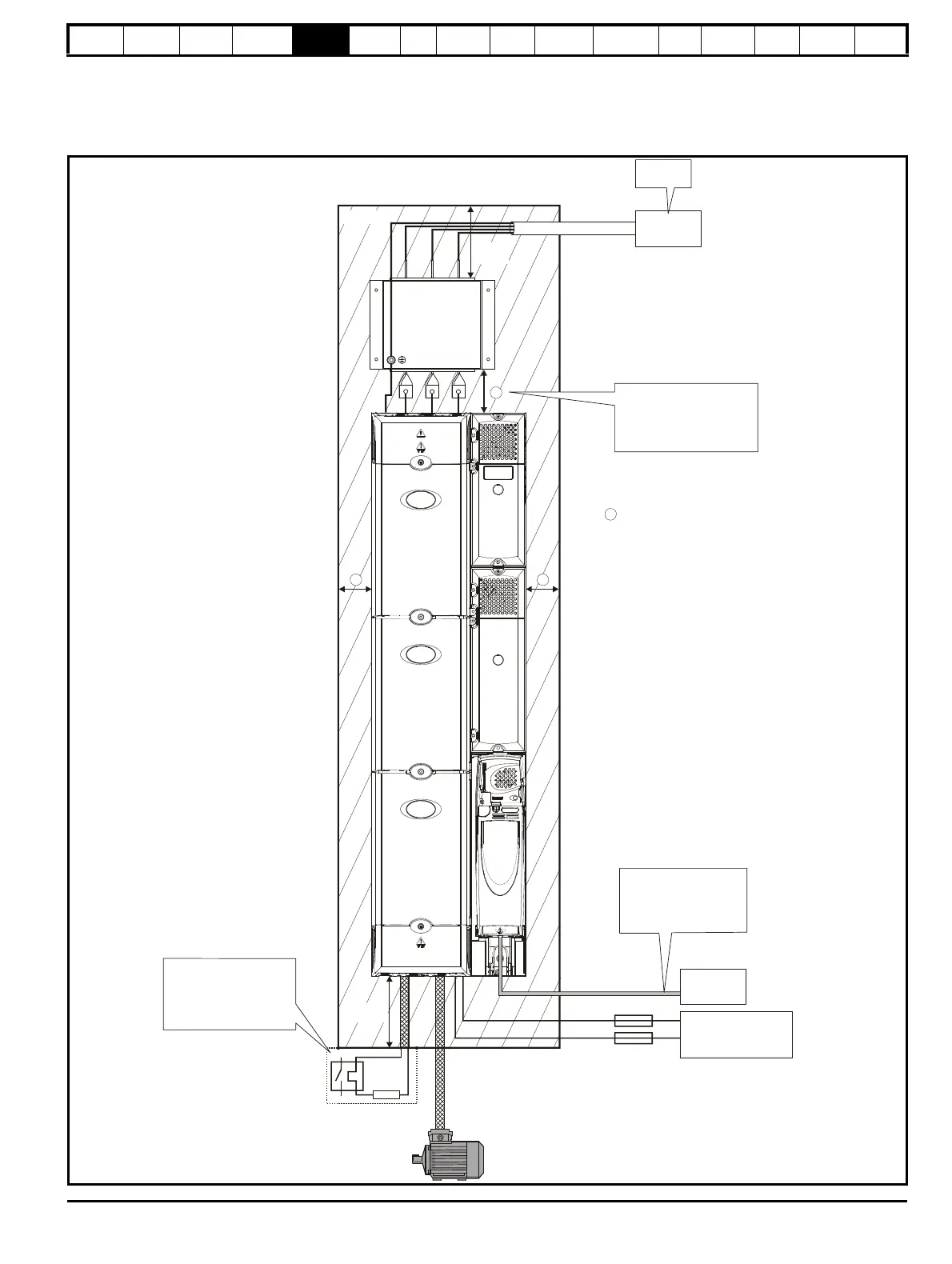

Figure 5-27 Enclosure layout
Ensure minimum clearances
are maintained for the drive
and external EMC filter. Forced
or convection air-flow must not
be restricted by any object or
cabling
For EMC compliance:
1) When using an external EMC
filter, one filter is required for
each drive
2) Power cabling must be at
least 100mm (4in) from the
drive in all directions
A
Docked SPMD and SPMC: 60mm (2.362in)
30mm (1.181in)
≥
≥
≥
A
A
Optional braking
resistor and overload
AC supply
fuses or MCB
Locate as
required
Locate as
required
Locate optional braking
resistor external to
cubicle (preferably near
to or on top of the cubicle).
Locate the overload
protection device as required
Plan for all signal cables
to be routed at least
300mm (12in) from the
drive and any power cable
Enclosure
≥
100mm
(4in)
≥
100mm
(4in)
Optional
external
EMC filter
