If the system is setup accordingly, the access
code for level 1 must be entered to gain ac-
cess to this menu.
6.2.2.3 Advanced Calibration Menu
6.2.2 Control Menu
Note!
This menu is only available if “Valves” in IN-
STALLED OPTIONS is set to a value other
than none.
Note!
This menu is also available in single-channel
units.
In this case, the 3
rd
and 4
th
lines will start a
zero or span calibration, while the 5
th
line
starts the same procedure as the 2
nd
.
Start and control valve supported calibration
procedures
Control..
Advanced calibration..

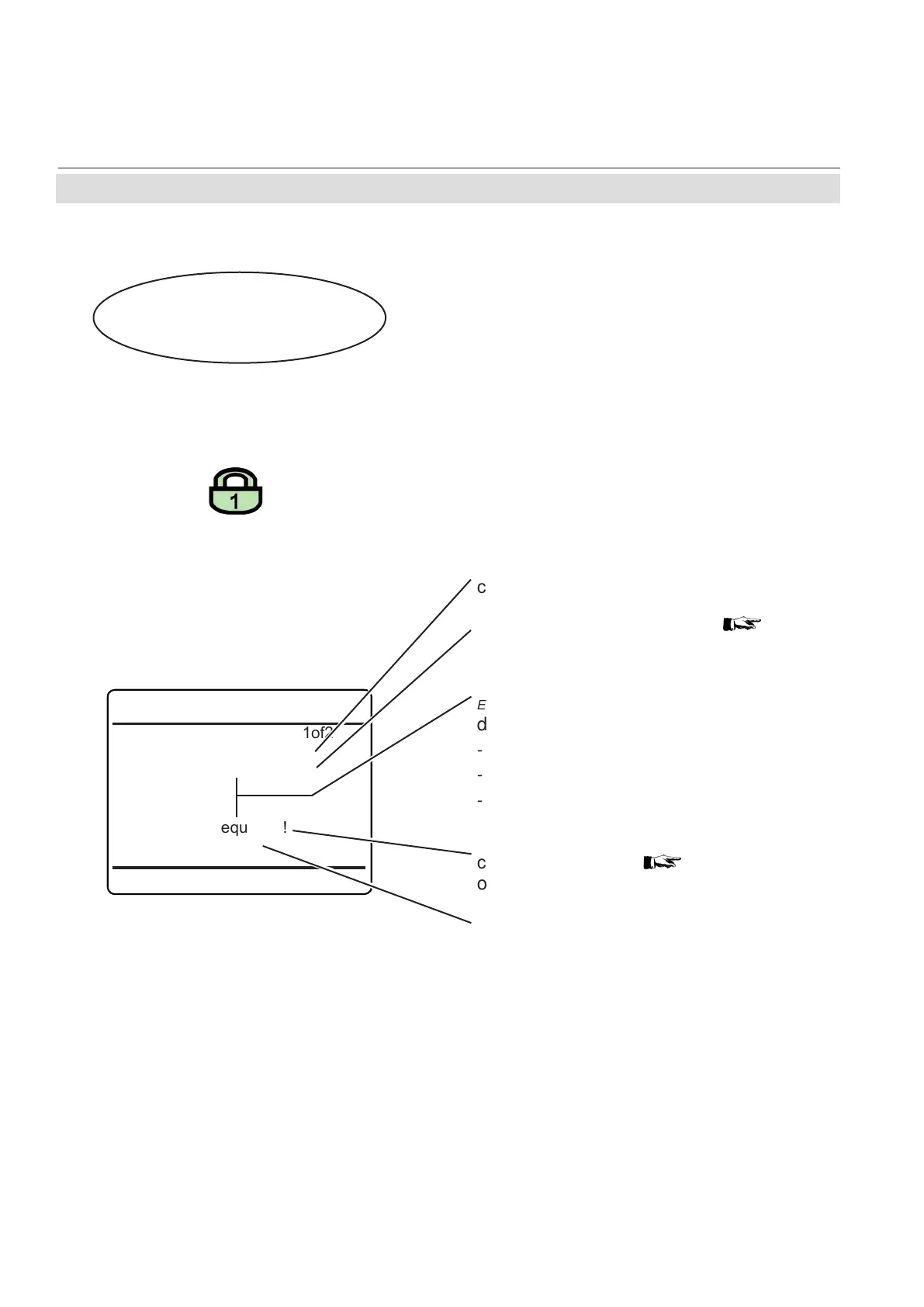

Advanced Calibration 1of2
Cancel!
Zero&Span Single..
Zero All!
Span All!
Zero&Span All!
Programmed Sequence!
Blowback!
Press enter in this line to cancel any ongoing
calibration
Highlight any of the next 3 lines and press
enter to start the related calibration proce-
dure:
- zero all channels
- span all channels
- zero and span all channels
Press
enter in this line to start a blowback pro-
cedure for all channels
Press
enter in this line to start a programmed
calibration sequence;
6-40 for information
on how to program a sequence.
Zero & span a single channel 6-5
To Next Page
