6.2.3 Setup Menu
Submenu to enter coefcients (
6-53).
Select the currently to be used range.
Currently measured gas concentration
Separately switch On or Off the Linearization
for each range of the selected channel.

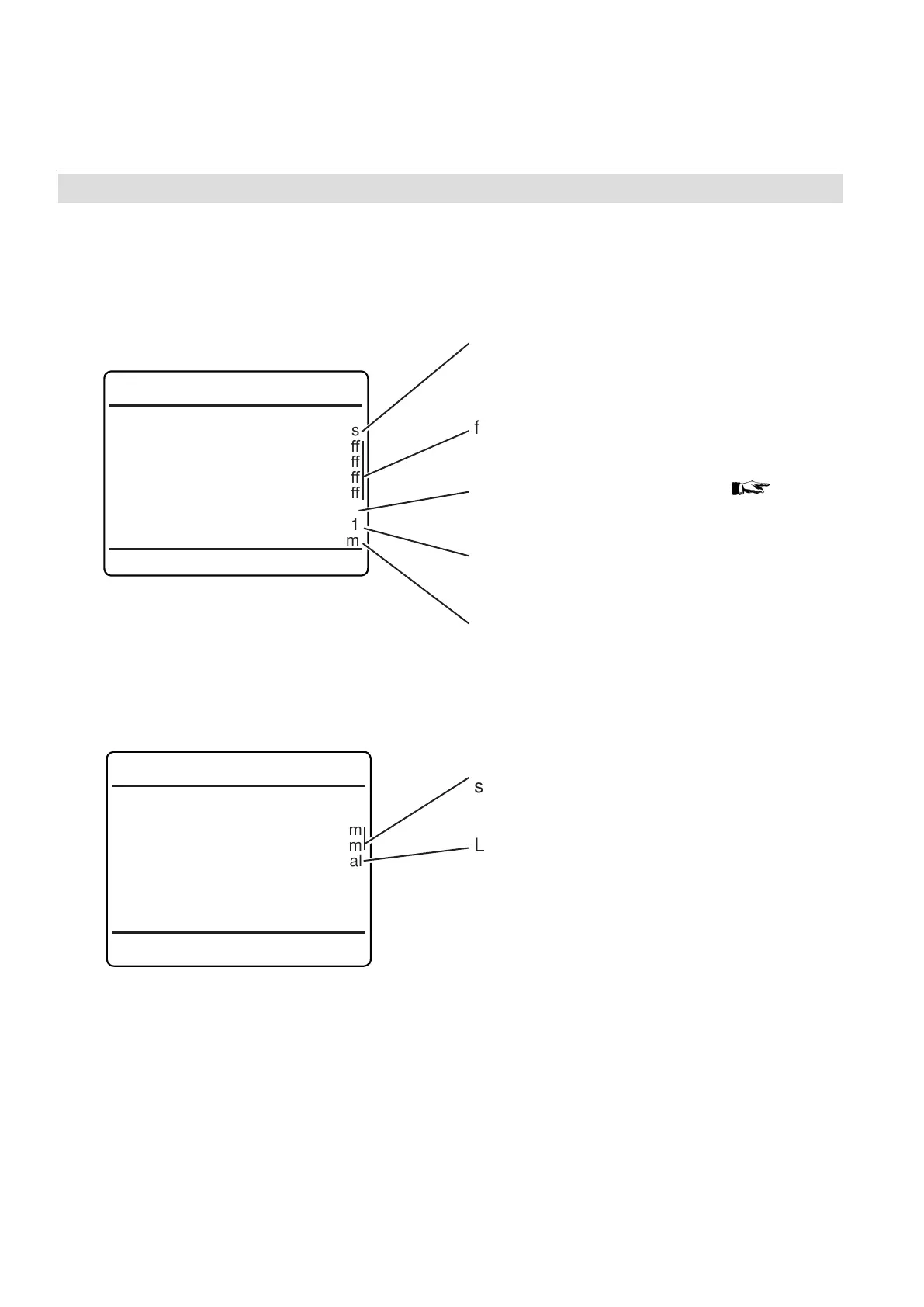

Ch1
 Linearization
LinearMethod: Splines
LinearizerRange1: Off
LinearizerRange2: Off
LinearizerRange3: Off
LinearizerRange4: Off
Coefcients..
Current range: Range1
Concentration
0.000 ppm
Ch1
 Linearization
Linearizer Min 20.000 ppm
Linearizer Max 110.000 ppm
Status Normal
Measuring range, covered by the linearization
settings.
Linearization status.
Possible values: Normal, Underow, Over-
ow, Undened
Specify the linearization methode to be used.
Available options: Splines, Polynom.
