Emerson X-STREAM XE User Manual

Emerson Process Management GmbH & Co. OHG 6-53
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
6
Software Menus

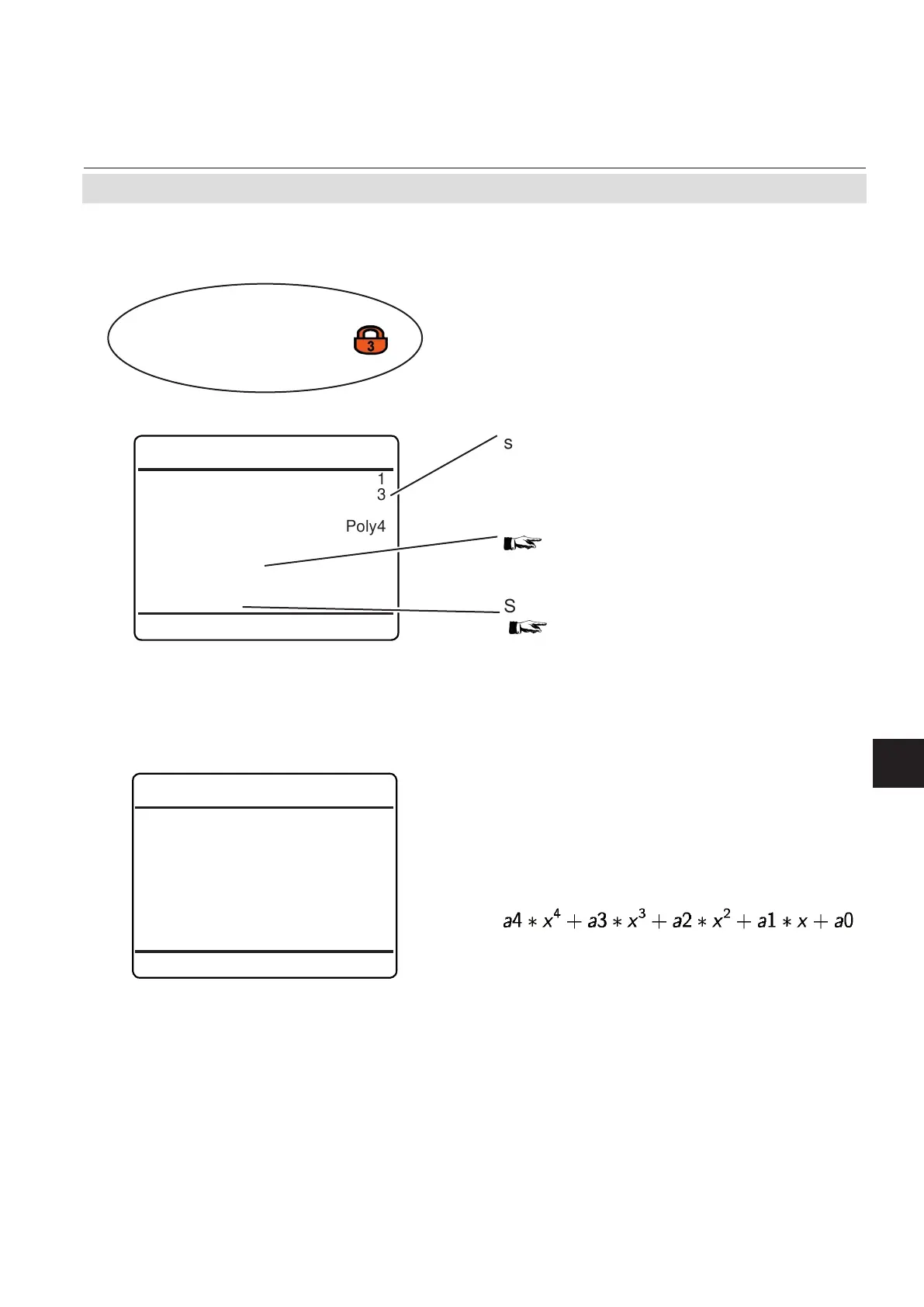

6.2.3 Setup Menu
Assign polynomials to each range of the
current channel. Multiple assignments are
supported.
Submenus to enter polynomials coefcients;
see below .
Submenu to calculate the polynomials;
6-54.
6.2.3.3.3.3 Polynomials Coefcients
Range1 Uses: Poly1
Range2 Uses: Poly3
Range3 Uses: Poly3
Range4 Uses: Poly4
Coeffs Poly1..
Coeffs Poly2..
Coeffs Poly3..
Coeffs Poly4..
Calculation..
Setup..
Measurement..
Linearization..
Coefcients..
6.2.3.3.3.3.1 Enter Polynomials Coefcients
Overow: 10.0 %
Underow: 5.0 %
a0:
a1:
a2:
a3:
a4:
RefValue 100000 ppm
State Poly1 No coeffs
Enter the coefcients here for a 4
th
order
polynomial:
