Emerson X-STREAM XE User Manual

Emerson Process Management GmbH & Co. OHG6-66
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012

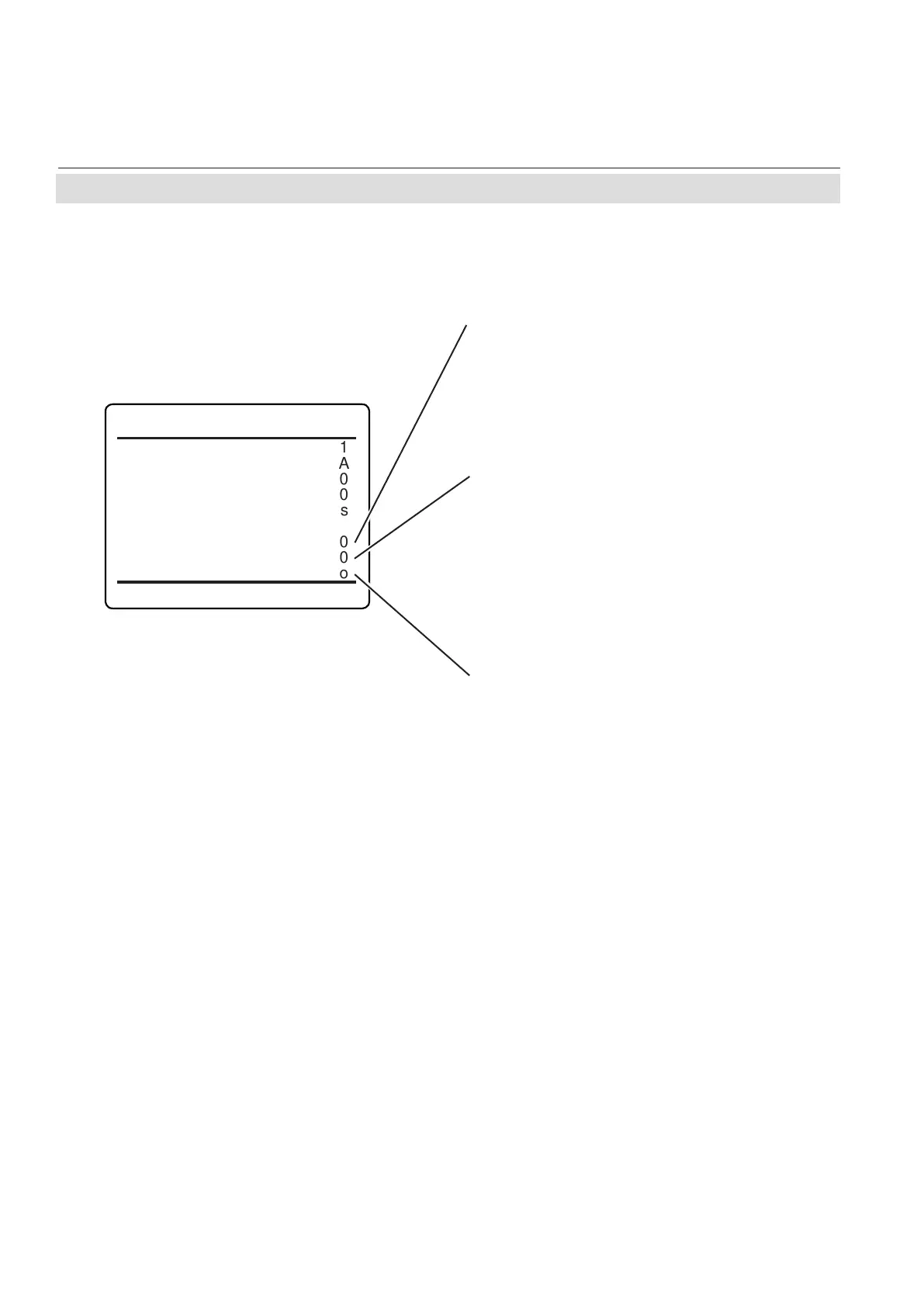

Signal: Comp1
OutRange: 4-20 mA
Low Scale: 0.00
Max Scale: 100.00
AutoScale: Yes
FailMode: LOW - 10%
0/4 mA: 0.00
20 mA: 100.00
Hold:
No
6.2.3 Setup Menu
"0/4 mA" enables to netune the analog out-
put: Set "Signal" to 0 mA and, while measu-
ring the output current, in this line adjust it to
the expected value.
Accepted range: -10,000 ... +10,000
"20 mA" enables to netune the analog out-
put: Set "Signal" to 20 mA and while measu-
ring the output current, in this line adjust it to
the expected value.
Accepted range: -10,000 ... +10,000
"Hold" selects the output´s behaviour during
calibrations.
If set to Yes,
• the analog output is xed to the last measu-
red value ;
• concentration alarms, which may otherwise
be triggered by the concentrations of the
calibration gases, are supressed.
If set to No,
• the analog output signal always corre-
sponds to the actual measured value during
calibration; this may trigger alarms if limits
are exceeded.
Note!
This behaviour may be undesireable if e.g.
the unit is connected to a data acquisition
system.
