Software Menus
6.2.3 Setup Menu
6.2.3.6.1 Setup Alarms Concentration
Multi-channel unit:
In SELECT COMPONENT, select the chan-
nel to be setup.
Multi-channel unit:
Press
left to enter SELECT COMPONENT, to
change the settings for another channel.
Specify up to four concentration (threshold)
levels:
"LoLo" and "Lo" levels are to be setup below
the expected concentration.
"HiHi"and "Hi" levels are to be setup above
the expected concentration.

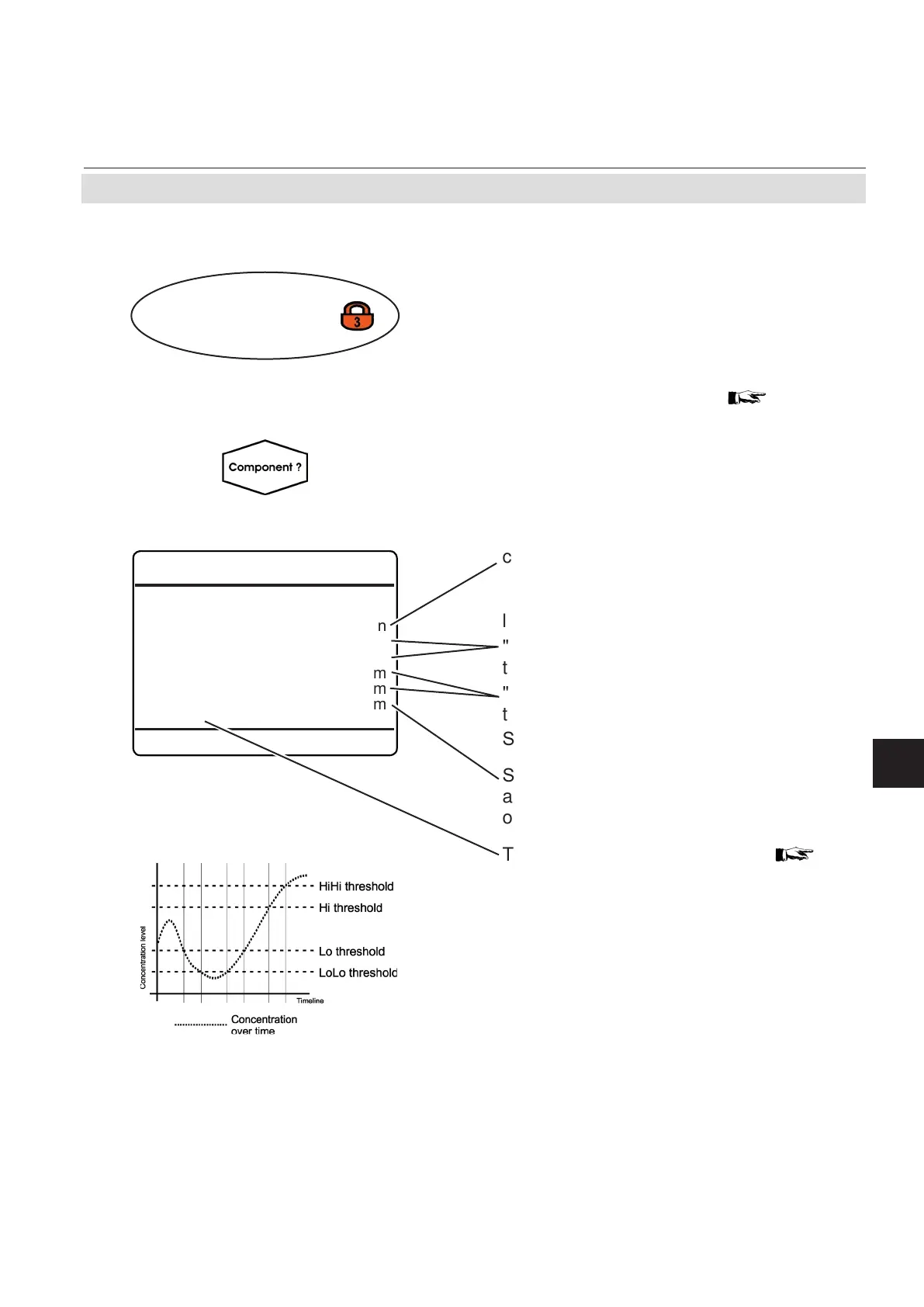

See the gure to the left for details.
Switch On or Off the alarm monitor for the
current channel.
Specify the hysteresis to be considered
around the concentration levels, to avoid
oscillating alarms.
To view the current alarm states;
6-82
Note!
To congure concentration alarm levels for
averaging measurements, 6-83!
Setup..
Alarms..
Concentration..
Ch1
Concentration
Alarm Monitor: On
LoLo Level: 50.000 ppm
Lo Level: 100.000 ppm
Hi Level: 400.000 ppm
HiHi Level: 600.000 ppm
Hysteresis: 10.000 ppm
States..
Note!
HiHi und LoLo are main alarms,
Hi and Lo are pre-alarms.
