6.2.3 Setup Menu
6.2.3.7 Setup Installed Options
Some software features are optional and can
be unlocked with a license code. To do so,
6-89
Lines 3 to 6 show if the related optional com-
ponent is installed with the current instrument
(Yes) or not (None), respectively shows, how
they are installed ("Valves": Internal, Exter-
nal or Int+Ext), or which ("Pumps": Pump 1,
Pump 1&2).
Indicates how many analog outputs are in-
stalled (0 ... 5).
Setup ow sensor installation,
6-90
Indicates if analog inputs are installed, or
not.
Setup pressure sensor installation,
6-91
If the system is setup accordingly, the access
code for level 3 must be entered to gain ac-
cess to this menu.
Note!
Don´t change settings in this menu without
experienced knowledge! Wrong settings may
result in a defective instrument.

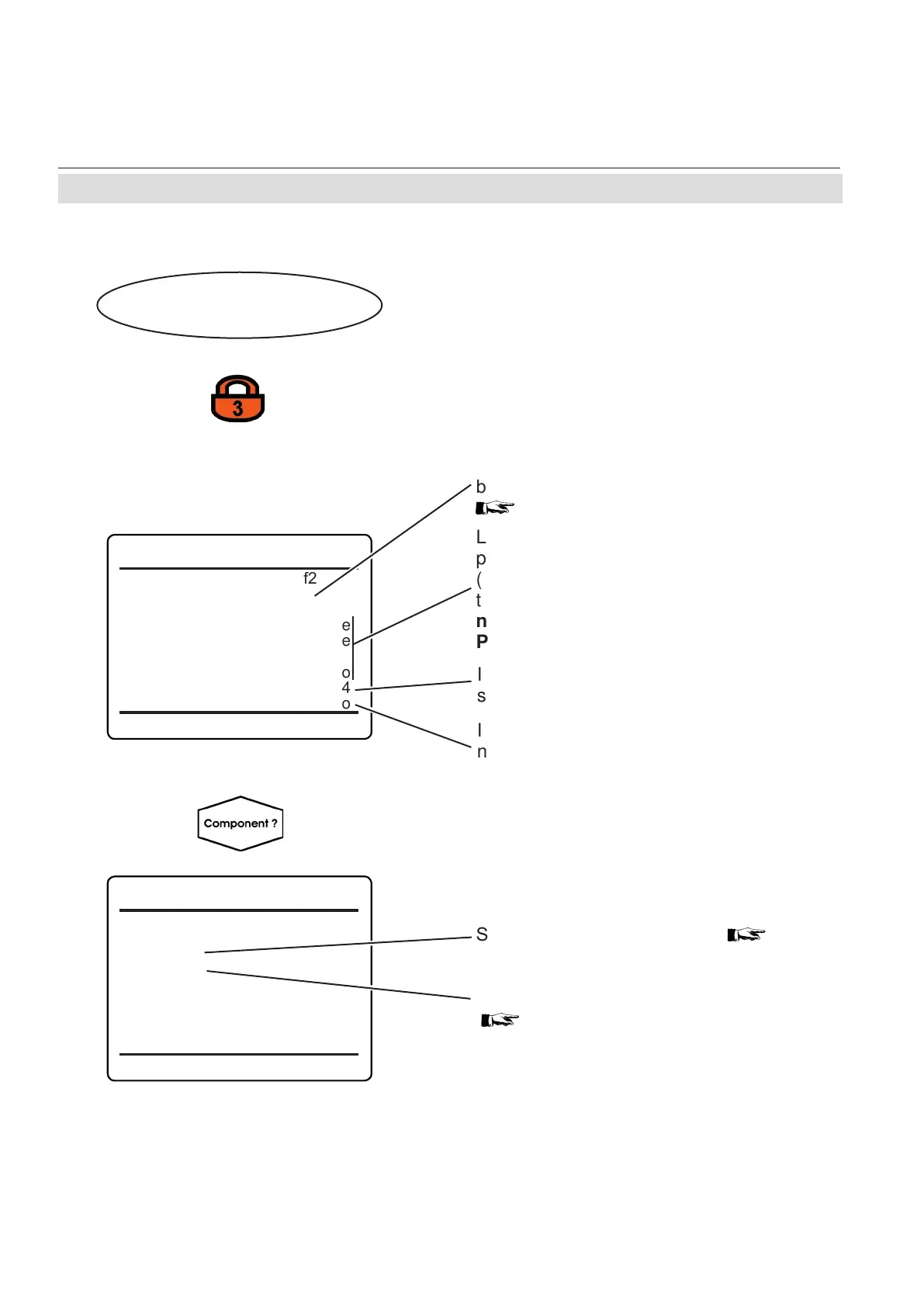

Setup..
Installed Options..
Installed Options 1of2
Licenses..
Valves: None
Pumps: None
DIO#1 Installed: No
DIO#2 Installed: No
Anal. Outputs: 4
AIN Installed:
No
 Installed Options 2of2
Flow..
Pressure..
Multi-channel unit:
In SELECT COMPONENT select the chan-
nel to be setup.
Multi-channel unit:
Press
left to enter SELECT COMPONENT to
change the settings for a different channel.
