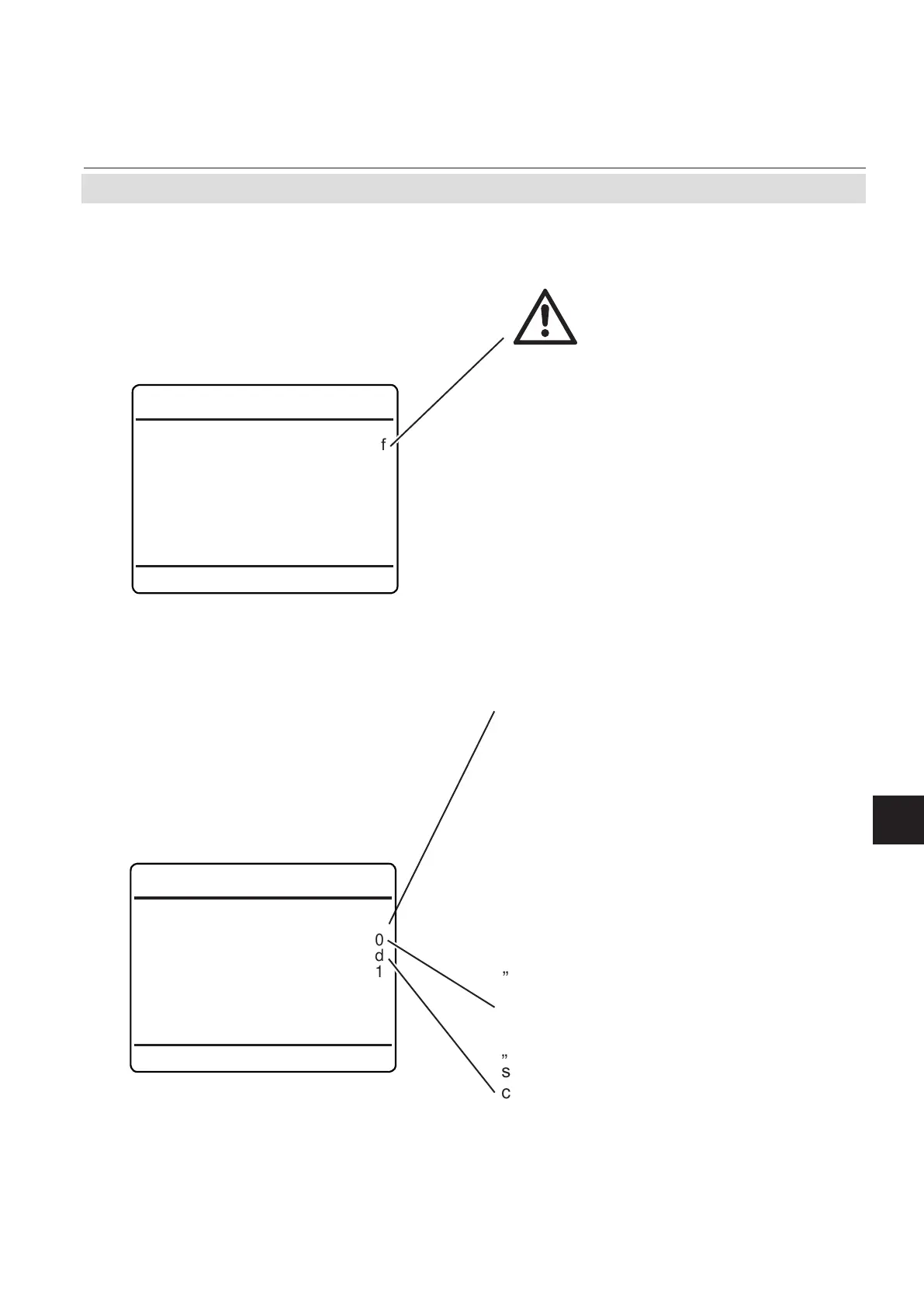

Maintenance & Procedures
4. To congure the rst source of interference
of this channel select „IF Source1“.
Ch1
IF Source1
Source: None
Value 0
Status Good
Interference Factor : 1
Adjust IF Factor!
Linearization Curve..
Select the source of interference used for
cross compensating the selected channel.
Available options:
None: source is disabled for cross compen-
sation
Conc1…Conc5: Measurement values of
internal channels 1…5
(Note!
The currently selected channel, here Ch1,
cannot be setup as a source!)
AIN1, AIN2: Analog input 1 or 2
Calc A…Calc D: Result of Calc A to Calc D
„Value“ shows the current interfering compo-
nents value, formatted with the related basic
unit (e. g. ppm if Conc1…Conc5 is selected).
„Status“ shows if the interfering components
signal currently is available (e. g. properly
connected).
Possible status values: Absent, Good.
5. Within this menu, congure the source and
effect of interference of the component,
interfering the currently selected channel.
Ch1
Cross Interference
Activated: Off
IF Source1..
IF Source2..
IF Source3..
IF Source4..
3. Select Off in line „Activated“,
otherwise the result would be inuenced
during the determination of the interfe-
rence component factor.
Write down or keep in mind the
current setting of „Activated“
to reset it after finishing the
cross interference compensa-
tion setup!
7.5 Cross Interference Compensation
