8.4 Troubleshooting on Components
Step 13:

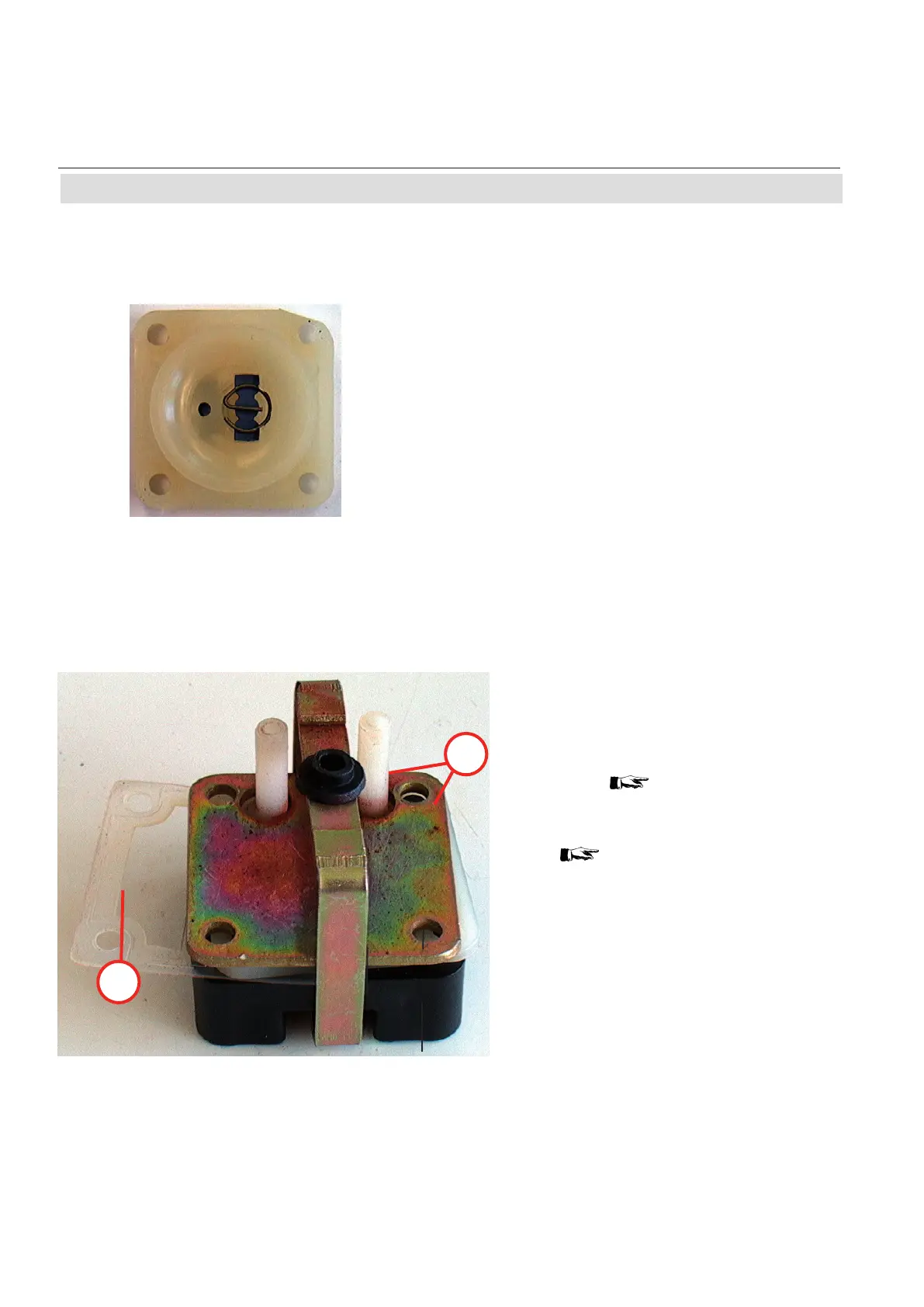

Assemble the pump assy. Take care of
your marker (
step 4)
1. Put the two upper plates under the
clamp (
steps 6 & 7 for reference).
2. Put the white block and the new
teon gasket between the lower block
and the in-outlet plate.
Step 12:
Clean the white block.
Afterwards put in the new dia-phragms
and x them with the new locking
springs.
1
2
