Troubleshooting
8.4 Troubleshooting on Components

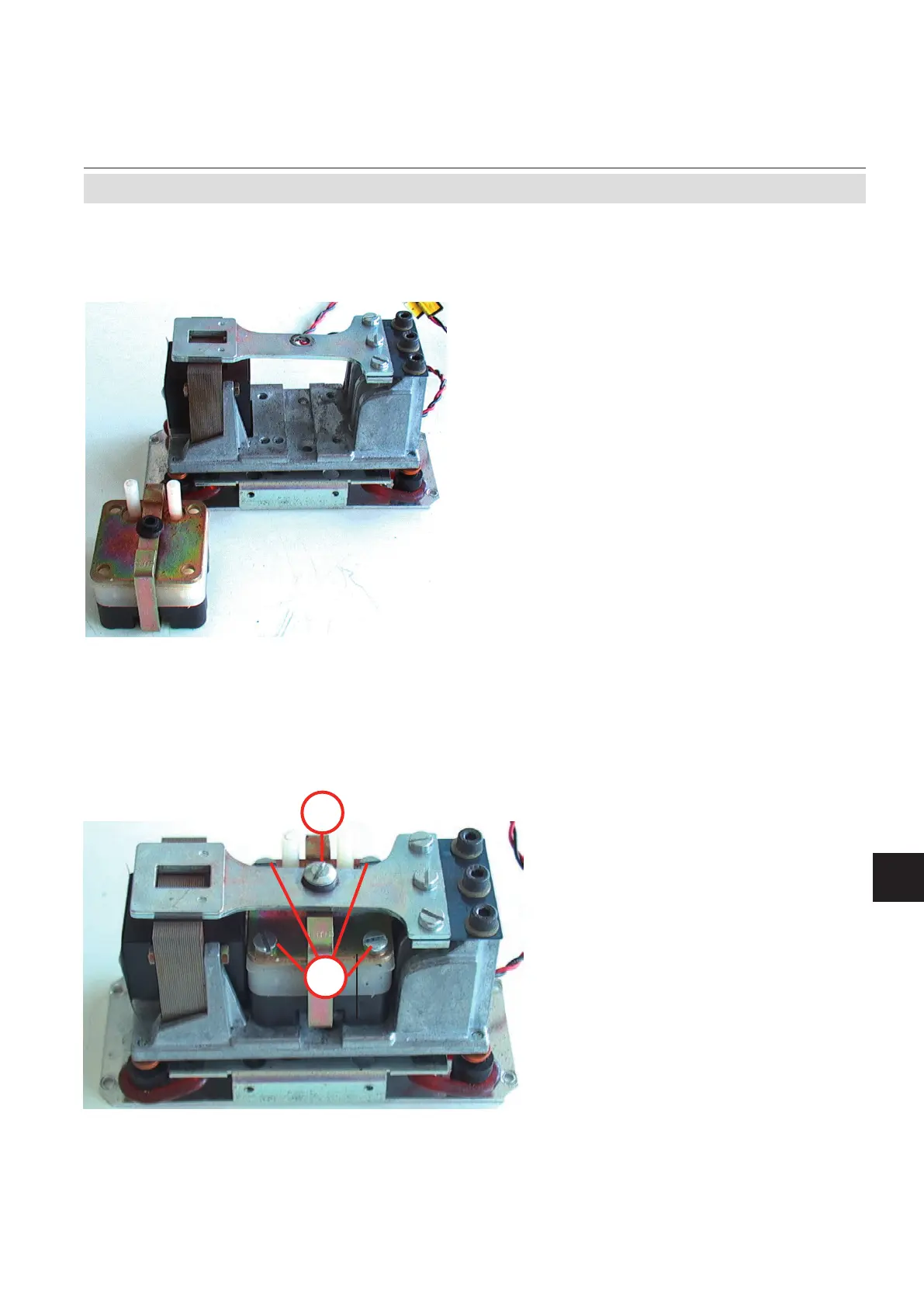

Step 14:
Assemble the pump assy in reverse
order.
Put it in the pump housing and x it
with the screws S2.
Fix the clamp with screw S3 and
the black buffer.
S2
S3
