86 Functional Description Emotron AB 01-3694-01r2
Communication information
Ratio [326]
This menu is not visible when speed, frequency or torque is
selected. The function sets the ratio between the actual proc-
ess value and the motor speed so that it has an accurate proc-
ess value when no feedback signal is used. See Fig. 70.
Communication information

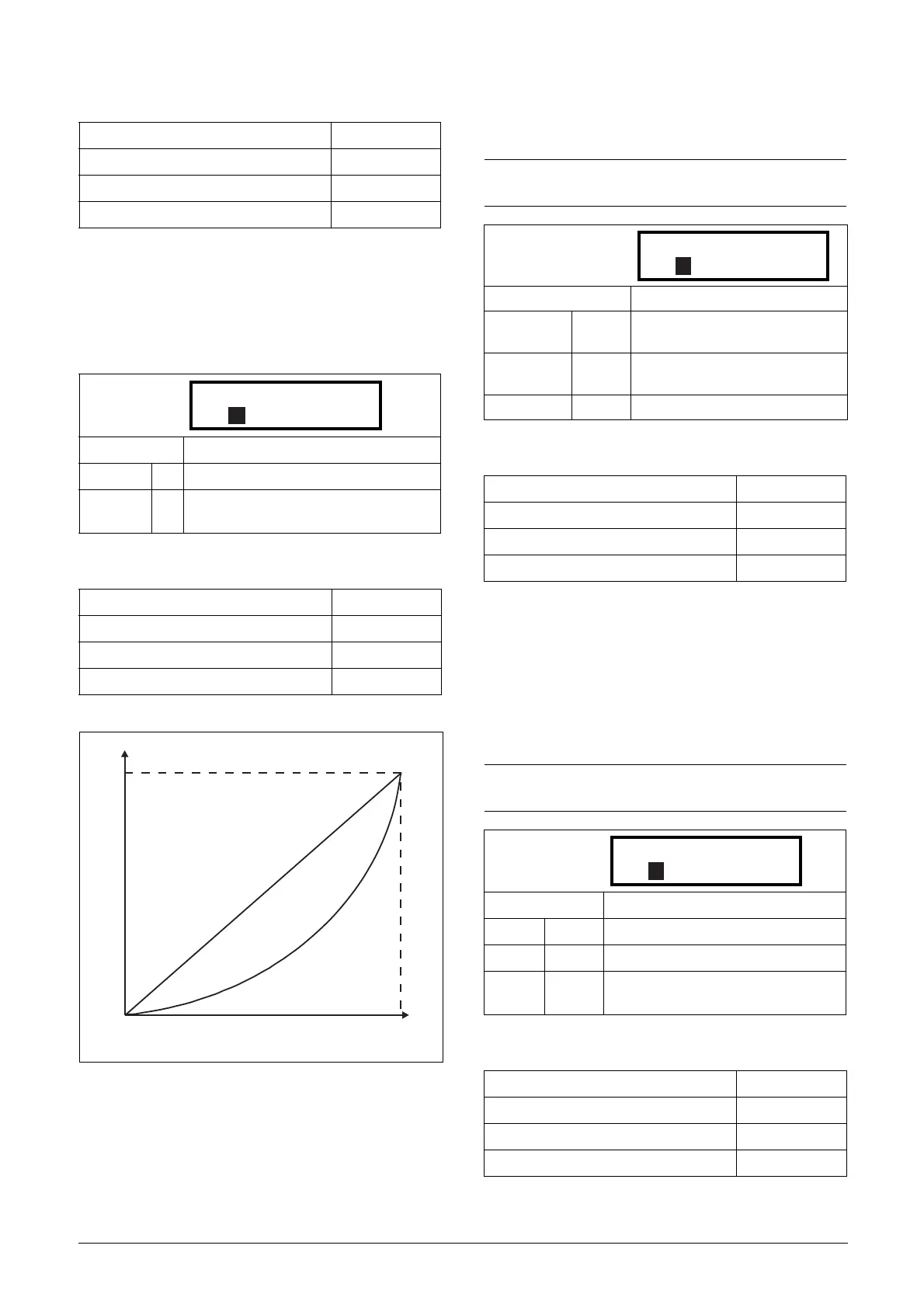

Fig. 70 Ratio
F(Value), Process Min [327]
This function is used for scaling if no sensor is used. It offers
you the possibility of increasing the process accuracy by scal-
ing the process values. The process values are scaled by link-
ing them to known data in the VSD. With F(Value), Proc
Min the precise value at which the entered Process Min
[324] is valid can be entered.
Communication information
F(Value), Process Max [328]
This function is used for scaling if no sensor is used. It offers
you the possibility of increasing the process accuracy by scal-
ing the process values. The process values are scaled by link-
ing them to known data in the VSD. With F(Value), Proc
Max the precise value at which the entered Process Max
[525] is valid can be entered.
Communication information
Modbus Instance no/DeviceNet no: 43311
Profibus slot/index 169/215
Fieldbus format Long, 1=0.001
Modbus format EInt
Default: Linear
Linear 0 Process is linear related to speed/torque
Quadratic 1
Process is quadratic related to speed/
torque
Modbus Instance no/DeviceNet no: 43312
Profibus slot/index 169/216
Fieldbus format UInt
Modbus format UInt
326 Ratio
Stp Linear
A
Ratio=Linear
Ratio=Quadratic
Process
Process
Process
Min Max
unit
Max
[325]
Min
[324]
Speed
[341]
Speed
Speed
[343]
NOTE: If Speed or Torque is chosen in menu [321] Proc
Source, this menu is hidden and using 321/331.
Default: Min
Min -1
According to Min Speed setting in
[341].
Max -2
According to Max Speed setting in
[343].
0.000-10000 0-10000 0.000-10000
Modbus Instance no/DeviceNet no: 43313
Profibus slot/index 169/217
Fieldbus format Long, 1=1 rpm
Modbus format EInt
NOTE: If Speed or Torque is chosen in menu [321] Proc
Source, this menu is hidden and using 321/331
Default: Max
Min -1 Min
Max -2 Max
0.000-
10000
0-10000 0.000-10000
Modbus Instance no/DeviceNet no: 43314
Profibus slot/index 169/218
Fieldbus format Long, 1=1 rpm
Modbus format EInt
327 F(Val) PrMin
Stp Min
A
328 F(Val) PrMax
Stp Max
A
