Emotron VFX 2.0 User Manual

128 Functional Description Emotron AB 01-4429-01r2

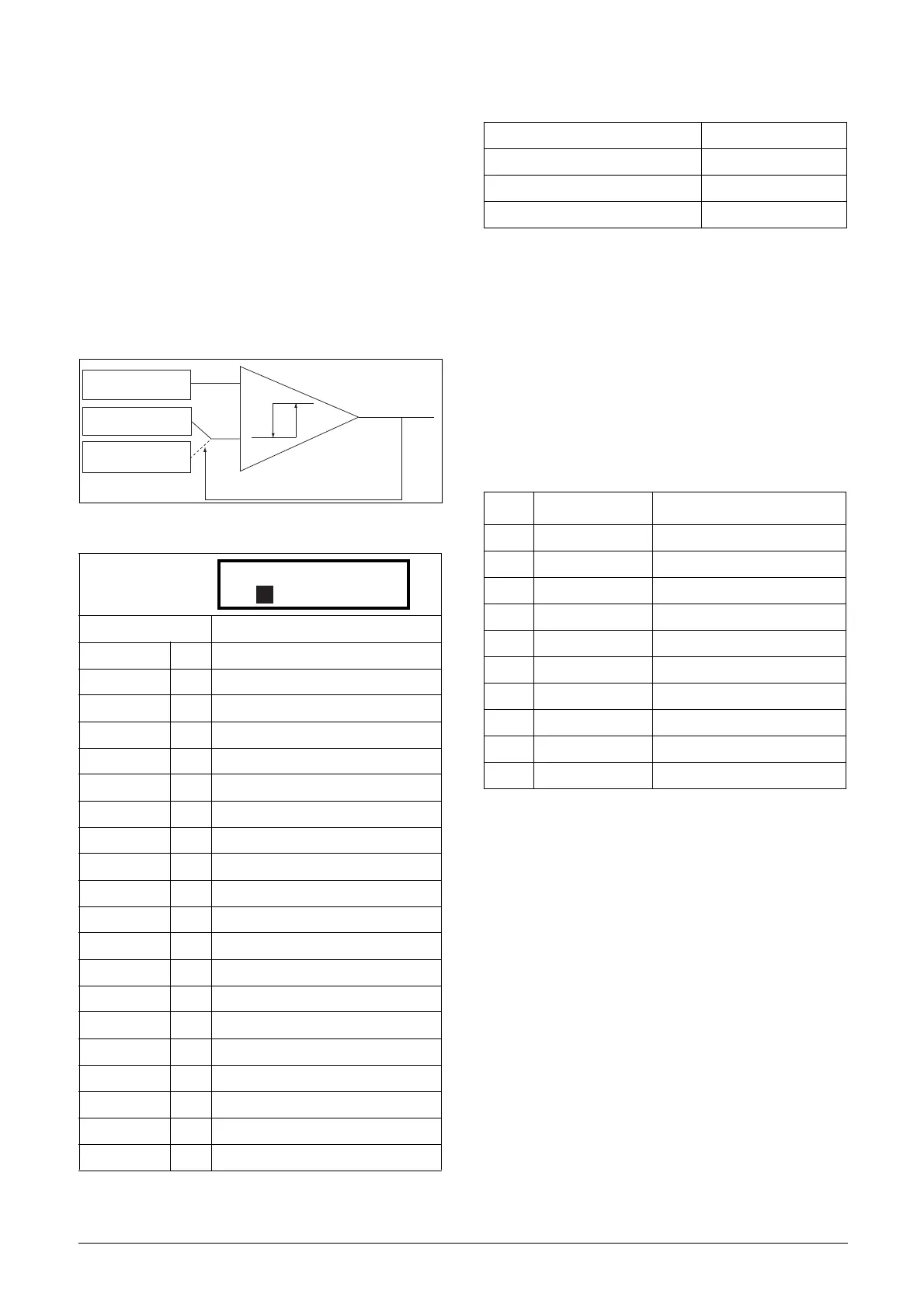

Analogue Comparator 1 Value [611]
Selection of the analogue value for Analogue Comparator 1
(CA1).
Analogue comparator 1 compares the selectable analogue
value in menu [611] with the constant Level HI in menu
[612] and constant Level LO in menu [613]. When the
value exceeds the upper limit level high, the output signal
CA1 becomes high and !A1 low, see Fig. 95. When the value
then decreases below the lower limit, the output signal CA1
becomes low and !A1 high.
The output signal can be programmed as a virtual connec-
tion source and to the digital or relay outputs.
Fig. 95 Analogue Comparator
Communication information
Example
Create automatic RUN/STOP signal via the analogue refer-
ence signal. Analogue current reference signal, 4-20 mA, is
connected to Analogue Input 1. AnIn1 Setup, menu [512] =
4-20 mA and the threshold is 4 mA. Full scale (100%) input
signal on AnIn 1 = 20 mA. When the reference signal on
AnIn1 increases 80% of the threshold (4 mA x 0.8 = 3.2
mA), the VSD will be set in RUN mode. When the signal
on AnIn1 goes below 60% of the threshold (4 mA x 0.6 =
2.4 mA) the VSD is set to STOP mode. The output of CA1
is used as a virtual connection source that controls the vir-
tual connection destination RUN.
Default: Speed
Process Val 0 Set by Unit [310]
Speed 1 rpm
Torque 2 %
Shaft Power 3 kW
El Power 4 kW
Current 5 A
Output Volt 6 V
Frequency 7 Hz
DC Voltage 8 V
Heatsink Tmp 9 °C
PT100_1 10 °C
PT100_2 11 °C
PT100_3 12 °C
Energy 13 kWh
Run Time 14 h
Mains Time 15 h
AnIn1 16 %
AnIn2 17 %
AnIn3 18 %
AnIn4 19 %
(NG_06-F125)
0
1
Signal:CA1
Analogue value:
Menu [611]
Adjustable Level HI.
Menu [612]
Adjustable Level LO.
Menu [613]
611 CA1 Value
Stp Speed
A
Modbus Instance no/DeviceNet no: 43401
Profibus slot/index 170/50
Fieldbus format UInt
Modbus format UInt
Menu Function Setting
511 AnIn1 Function Process reference
512 AnIn1 Set-up 4-20 mA, threshold is 4 mA
341 Min Speed 0
343 Max Speed 1500
611 CA1 Value AnIn1
612 CA1 Level HI 16% (3.2mA/20mA x 100%)
613 CA1 Level LO 12% (2.4mA/20mA x 100%)
561 VIO 1 Dest RunR
562 VIO 1 Source CA1
215 Run/Stp Ctrl Remote
