Introduction
Hardware Installation and Maintenance Manual 1
–9
All SpectraSensors TDL gas analyzers employ the same design and hardware
platform. Measuring different trace gases in various mixed hydrocarbon
background streams is accomplished by selecting a different optimum diode
laser wavelength between 700 to 3000 nm, which provides the least amount
of sensitivity to background stream variations.
Getting Familiar with the SS2100i-1
The SS2100i-1 consists of a single enclosure containing two electrical assembly
panels. Figure 1–5 shows the front, rear and bottom of the analyzer.

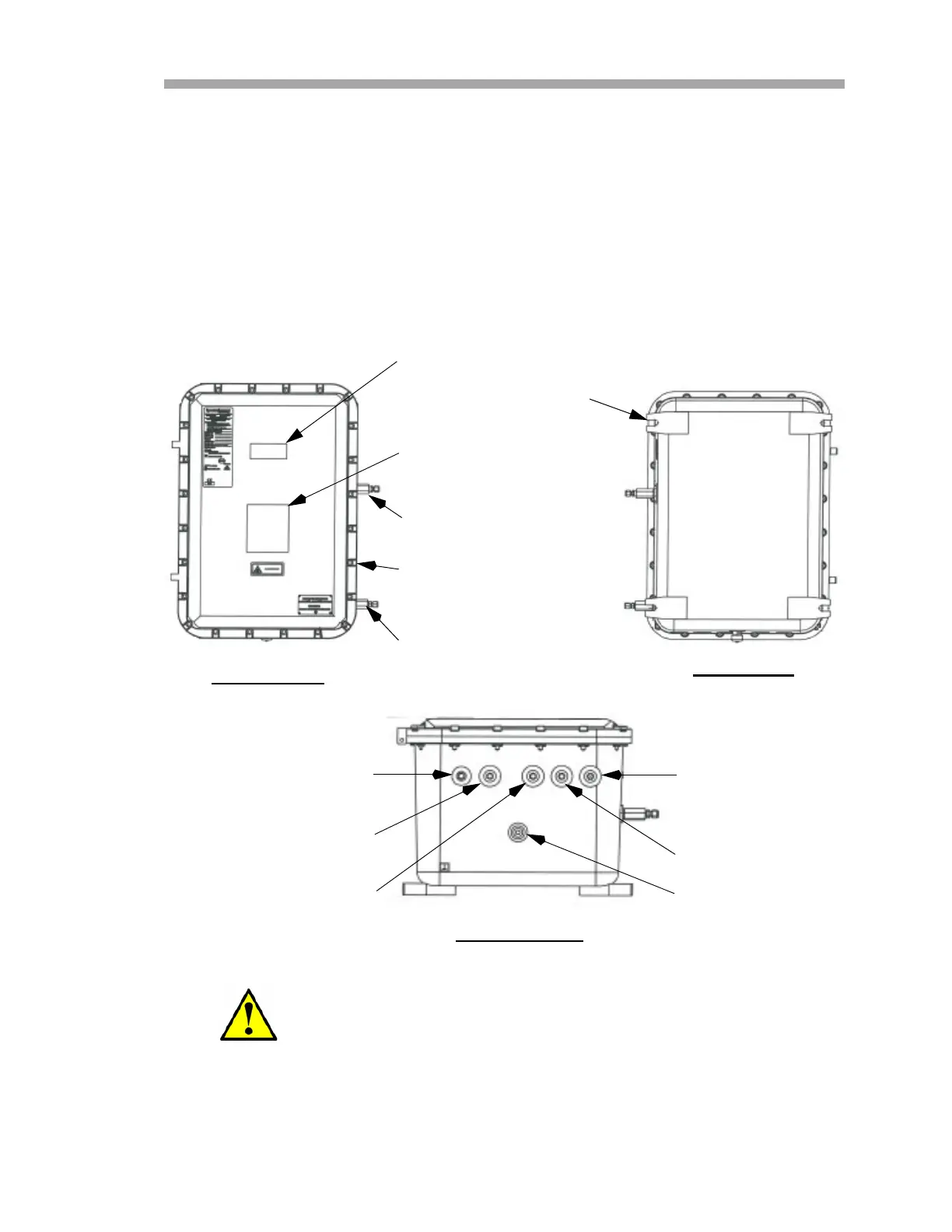

Figure 1–5 External features of the analyzer
4X MOUNTING FEET
0.5” SLOTTED HOLE
LCD DISPLAY WINDOW
KEYPAD
WINDOW
0.25” O.D. TUBE
FITTING (GAS IN)
0.25” O.D. TUBE
FITTING (GAS OUT)
FRONT VIEW
REAR VIEW
M25 SERIAL
COMM PORT
M25 SERIAL
COMM PORT
BREATHER
M20 POWER INPUT PORT
M25 SOLENOID
VALVE PORT
M25 DIGITAL
INPUT/OUTPUT PORT
24X COVER SCREWS
Only compound barrier seal glands (known as potted glands)
should be installed on this system.
BOTTOM VIEW
