Endress+Hauser SpectraSensors SS2100i-1 Hardware Installation And Maintenance Manual

SS2100i-1 Gas Analyzer
1–18 4900002224 rev. E 12-18-20

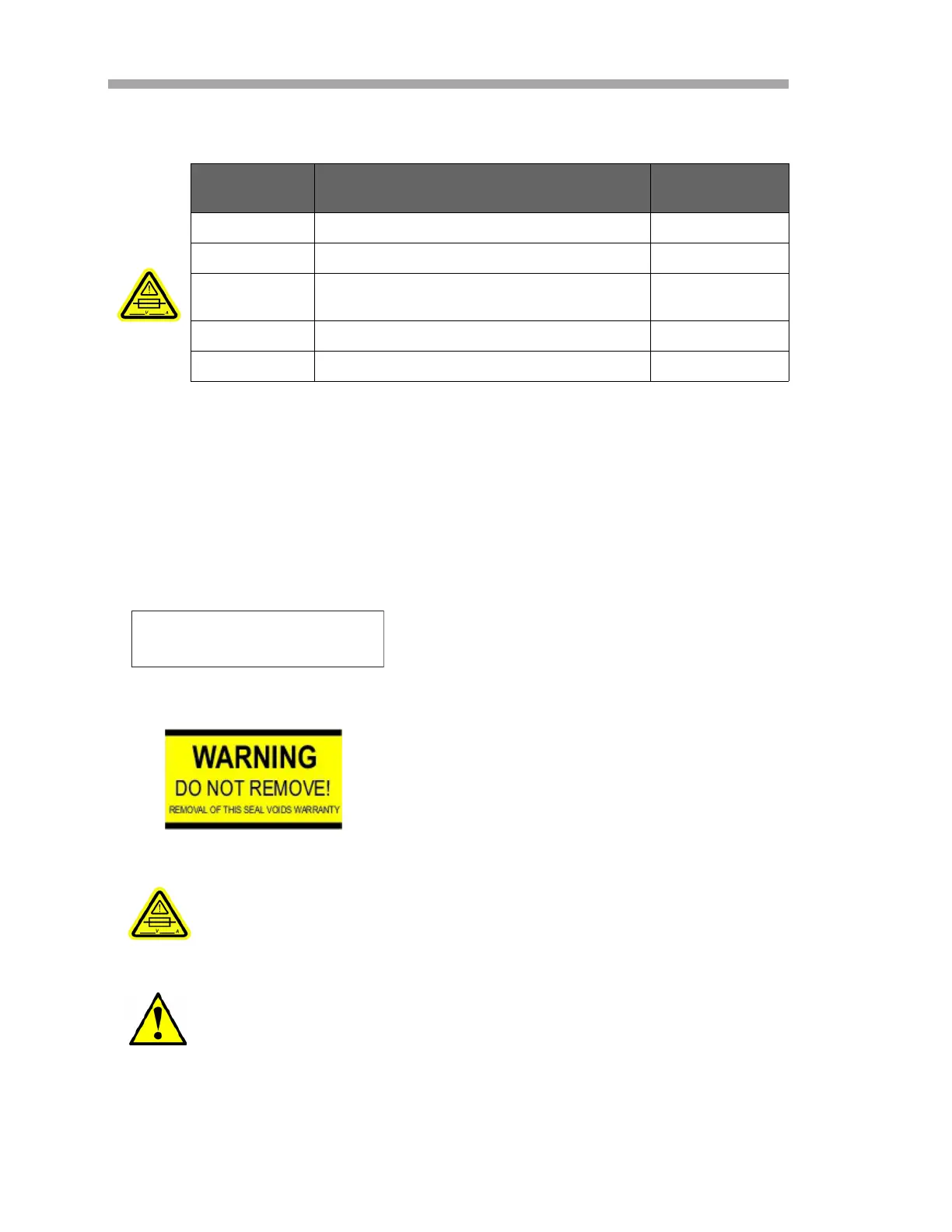

Special Safety Symbols Used on the Equipment
Special safety symbols and labeling are used on the equipment to alert the user
to potential hazards and important information associated with the analyzer.
Every symbol and label has significant meaning that should be heeded.
Table 1–2 Fuse specifications for 120 VAC systems
Drawing
Reference
Description Rating
F3
Miniature Fuse, 5 x 20 mm, Time Delay 250 VAC/1.6 A
F4
1
1. Housed in fused terminal blocks. Illuminated LED indicates blown fuse.
2. Refer to Figure 1–9 on page 1–13.
Miniature Fuse, 5 x 20 mm, Time Delay 250 VAC/0.5 A
F5
1
, F6
1
,
F7
1
, F8
1
Miniature Fuse, 5 x 20 mm, Time Delay 250 VAC/0.1 A
F9
1
Miniature Fuse, 5 x 20 mm, Time Delay 250 VAC/1.0 A
F10
1
Miniature Fuse, 5 x 20 mm, Time Delay 250 VAC/2.0 A
ENERGIZED FUSE WARNING - Do not
remove or replace fuse when energized.
DO NOT REMOVE - Removal of the
seal and/or disassembly of pieces
traversed by label voids the warranty.
FUSE RATING - Maximum voltage and current specifications for
the fuse closest to label.
HAZARDOUS VOLTAGE - Contact may cause electric shock or
burn. Turn off and lock out system power before servicing.
WARNING - DO NOT REMOVE OR
REPLACE FUSE WHEN ENERGIZED
FUSE: 5X20MM, T, L, 250VAC, 1AMP
