7. Remove the black wire harness cap from the sensor as shown in
Figure B–9 below.
8. Use a 7/8” or adjustable wrench to remove the pressure sensor to
be replaced as shown in Figure B–10 below.
9. Turn the 7/8” or adjustable wrench counterclockwise to loosen the
pressure sensor until it is able to be removed.
The harness cap will remain connected to the pressure sensor
cable via the terminal block on the upper level panel. Do not
disconnect from the terminal block.
Use caution when removing the pressure sensor to avoid bending
the tubing.

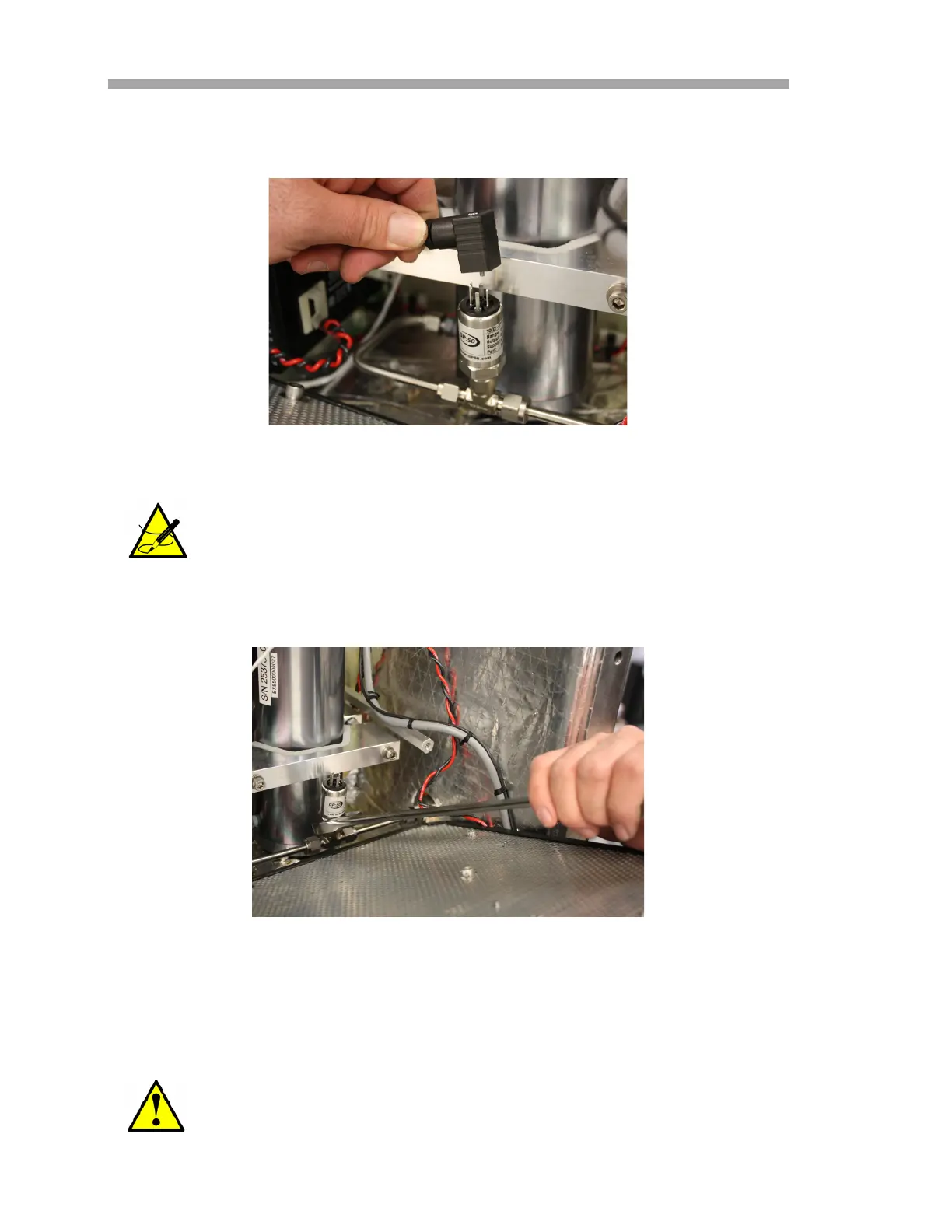

Figure B–9 Removing the harness cap
Figure B–10 Removing the pressure sensor
