Introduction
Hardware Installation and Maintenance Manual 1
–13

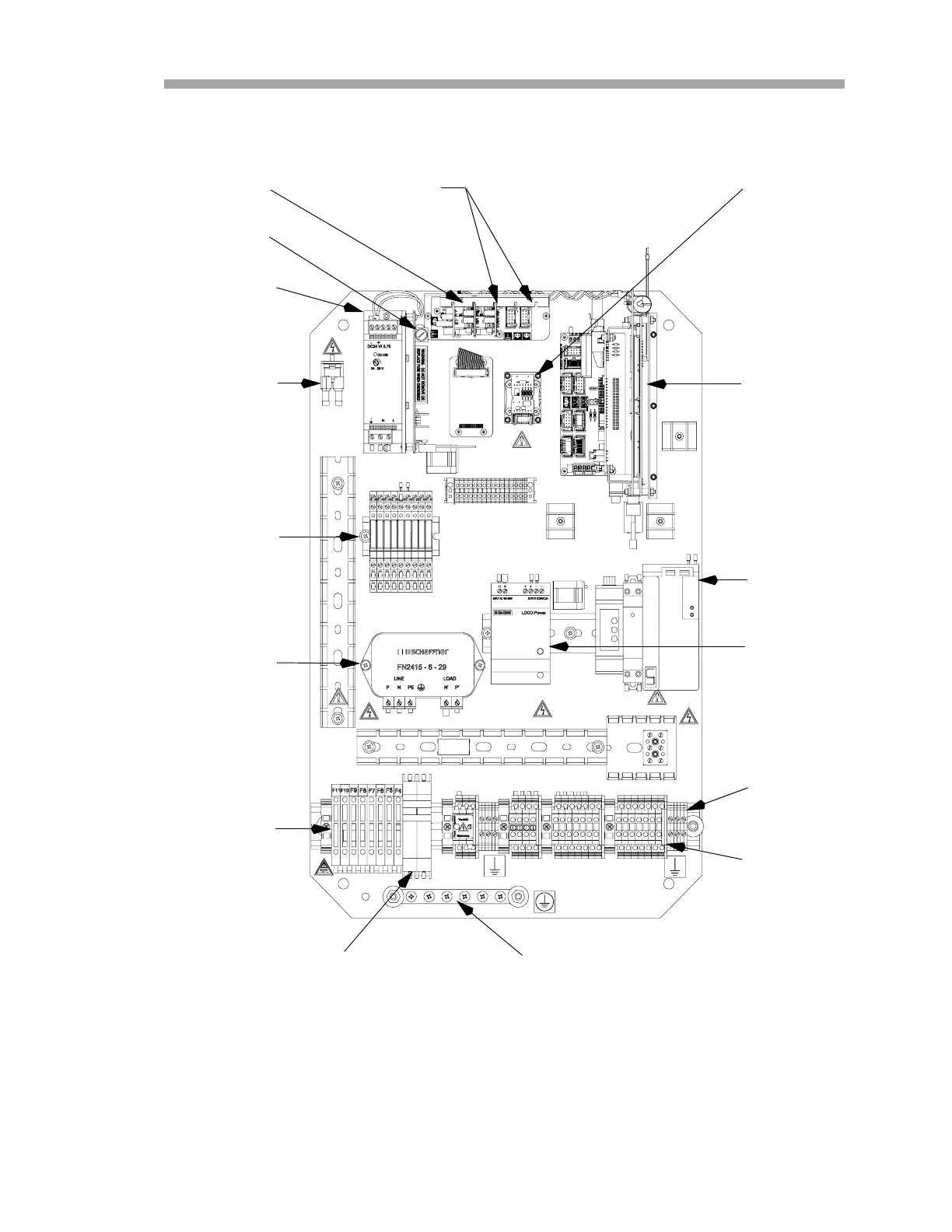

Figure 1–9 Components on electronics panel
assembly (Upper level)
4-20mA AO
BOARD
4-20mA AI
BOARD
FUSE (F3)
HIGH
TEMPERATURE
LIMIT
THERMOSTAT
SET AT 70 °C
ANALYZER
POWER SUPPLY
RELAYS
AC LINE FILTER
FUSES (F4-F10)
MAIN CIRCUIT BREAKER
GROUND BUS BAR
TERMINAL
BLOCKS
GROUND
TERMINAL
BLOCKS
AUXILIARY
POWER
SUPPLY
ARM9 CONTROL
ELECTRONICS
RS-232 TO
RS-485
CONVERTER
TEMPERATURE
CONTROL BOARD
