Enterasys RoamAbout RBT-4102 User Manual

Status Information
4-104 Advanced Configuration

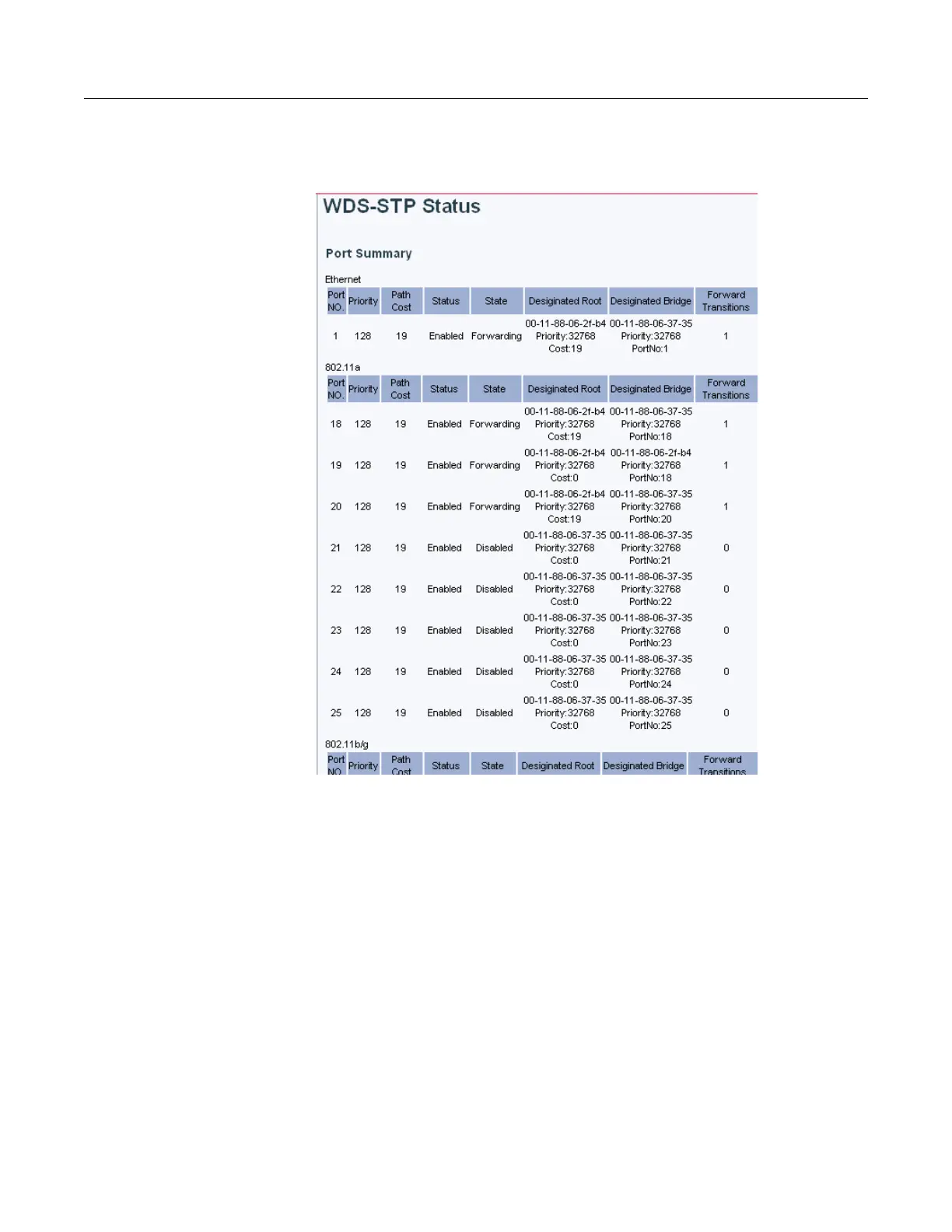

Using Web Management to View WDS-STP Status
SelectWDS‐STPStatusfromthemenu.
• Portnumberisthedesignatedport.
• PrioritydefinesthepriorityoftheportinSTP.Ifthepathcostforallportsonaswitcharethe
same,theportwiththehighestpriority(forexample,thelowestvalue),willbeconfiguredas
an
activelinkinthespanningtree.
• PathCostisusedbySTPtodeterminethebestpathbetweendevices.Pathtakesprecedence
overpriority.
• StatusdisplayswhetherornotaChildconnectionisenabledordisabled.
• StatedisplaysforwardingiftheChildisconnected.
• DesignatedRootthephysicaladdressof
therootbridge.
• DesignatedBridgeisthephysicallayeraddressoftherootbridge,orbridgeunit,root
connectedtotherootbridge.
•ForwardTransitions
