Epson G20 Series User Manual

Maintenance 2. General Maintenance
104 G10 / G20 Rev.20

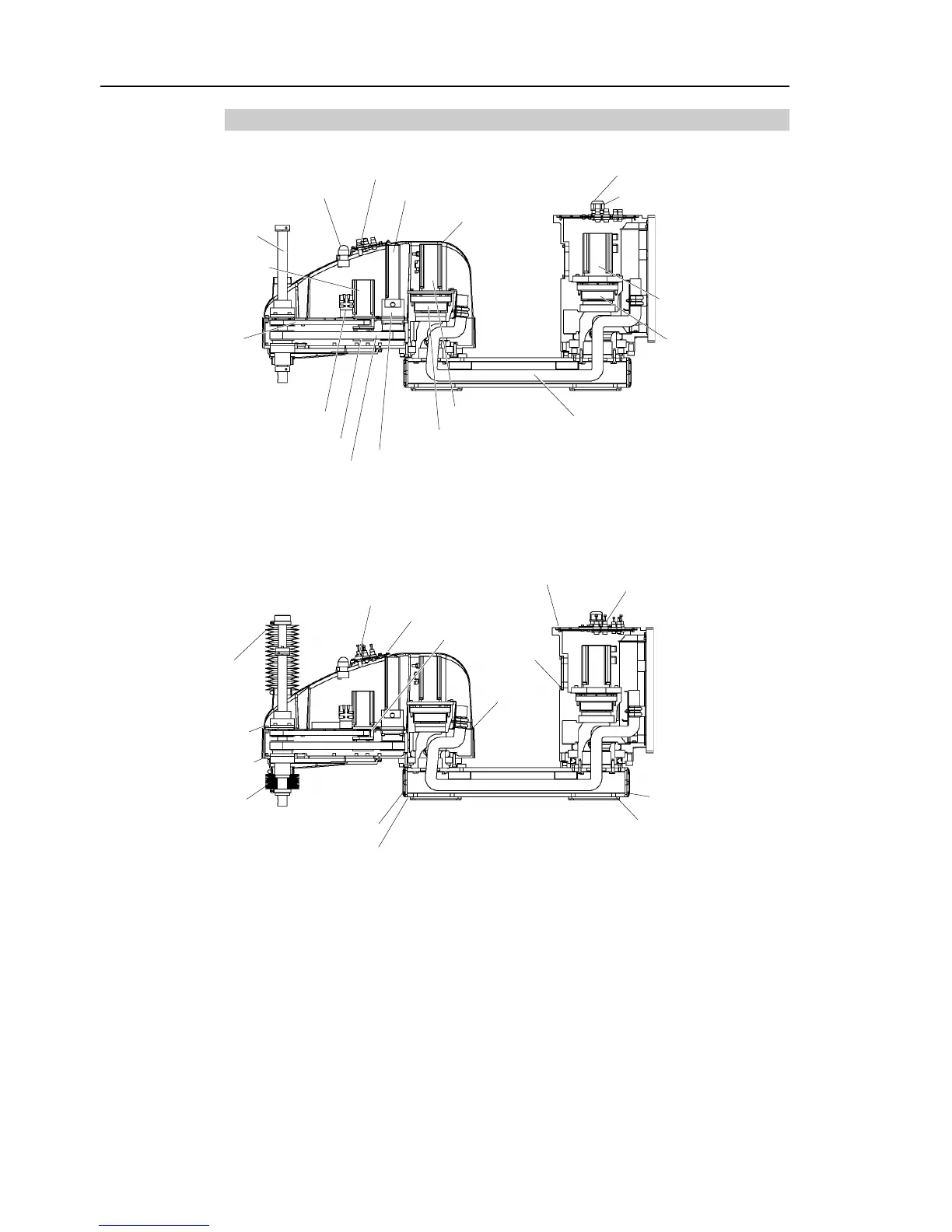

G20
G20-***SW : Standard-model
(Figure: G20-851SW)
Joint #4 reduction gear unit
Lithium battery and Battery board
Joint #1 motor
Joint #2 reduction gear unit
Joint #1
reduction gear unit
Brake release switch
Ball screw spline unit
Joint #3 motor
Cable unit
Z belt
U belt
Joint #2 motor
Arm cover
Joint #3 brake
LED lamp
Power cable
Signal cable
Joint #4 motor
G20-***CW : Cleanroom-model
G20-***DW, PW : Protected-model (D: With bellows option)
(Figure: G20-851PW)
Bellows (C, D, P)
Brake release switch (for D, P)
Bellows (C, D, P)
Gasket (D
, P)
Gasket (P)
Gasket (D, P)
Gasket (D, P)
Gasket (D, P)
Gasket (D, P)
Gasket (D, P)
Gasket (D, P)
Gasket (D, P)
Gasket (P)
Gasket (C, D, P)
Gasket (P)
